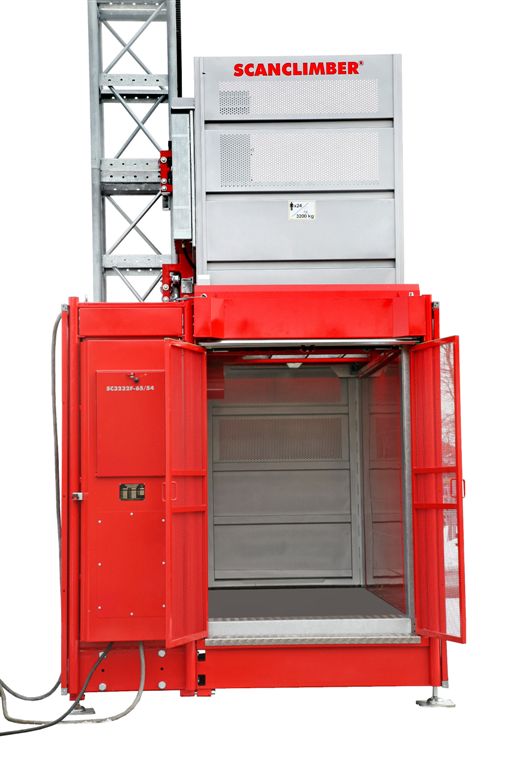

Max. height: 200m – Net load: 3200kg – Platform length: 3.7m – Platform width: 1.51m – Power source: E – Model series: SC…
Max. height: 200m – Net load: 3200kg – Platform length: 3.7m – Platform width: 1.51m – Power source: E – Model series: SC
Search available specs of Scanclimber SC3237-65H Industrial hoists (2017 - 2026). Look for technical data such as platform length and width and many more below:
One of the advantages in H65H hoists is callability. It means that the hoist can be called to a specific landing level like a normal lift. In high or busy work sites, it is usual that the normal callability and manual landing access management is not enough, and more sophistication is needed. To solve this, Scandclimber offers a more intelligent, computer-controlled landing access management system, also known as a programmable logic controller (PLC). Hoist users can ask it to drive to a specific floor. In case of several calls from various floors at the same time, the computer optimizes the hoist’s traveling and stops.
Performance
Wega Configurations

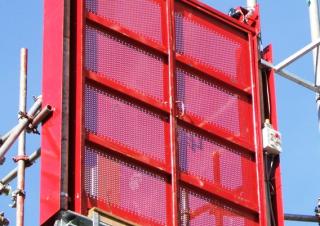

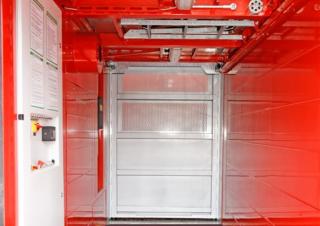

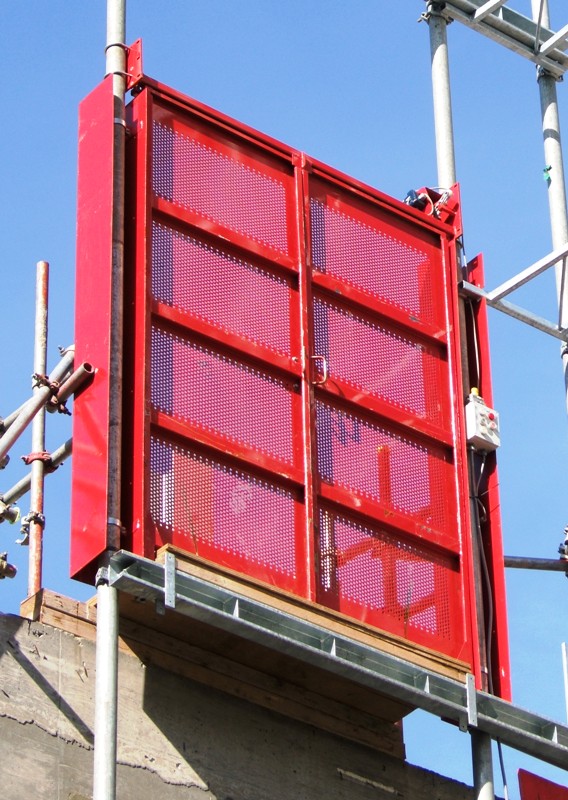

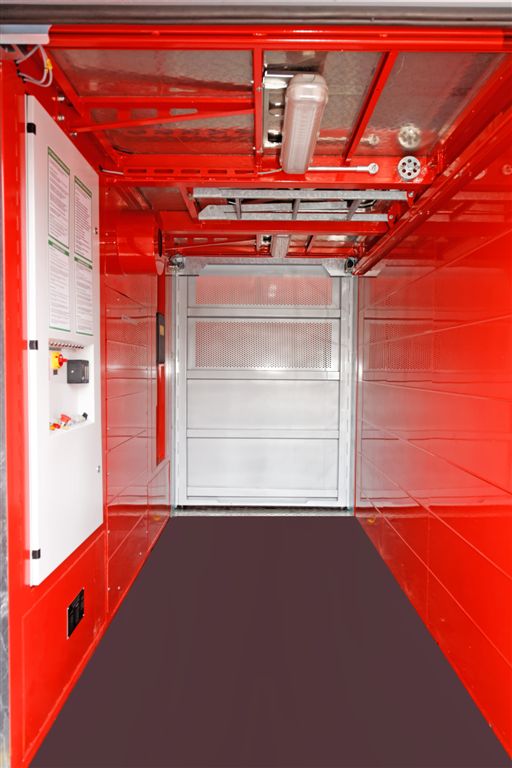

Wega’s modular system allows you to choose the required configuration with special features and attributes. Later on, the selected configuration can be adapted to different applications using relatively few modules and components. The hoist family offers different cage sizes, speed options, and payload capacities. Additionally, there is a wide variety of landing gates, doors, and mast anchoring systems. Wega’s lifting capacities for single cage models are: 2000 kg, 2500 kg, or 3200 kg, and the speed options are: normal speed 36 m/min, mid-speed 54 m/min, and high speed 90 m/min. The cage is available in two length options: 3.2 m or 3.7 m. If the space or capacity of one cage is not enough, you can double them using a twin cage version. The same payload can be loaded into two cages, which means the greatest payload is 6400 kg.
