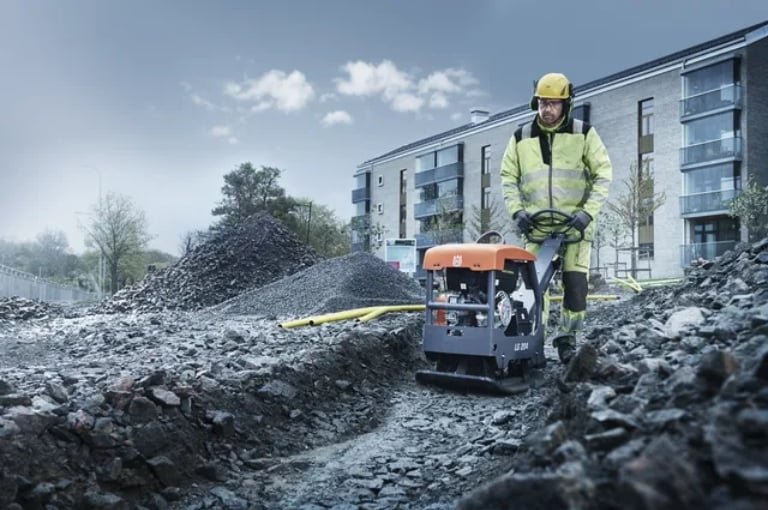

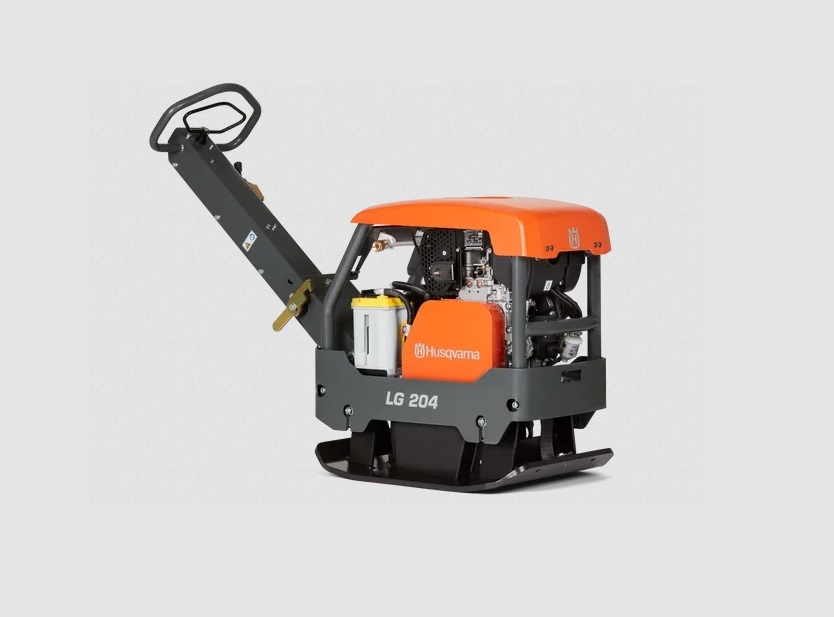

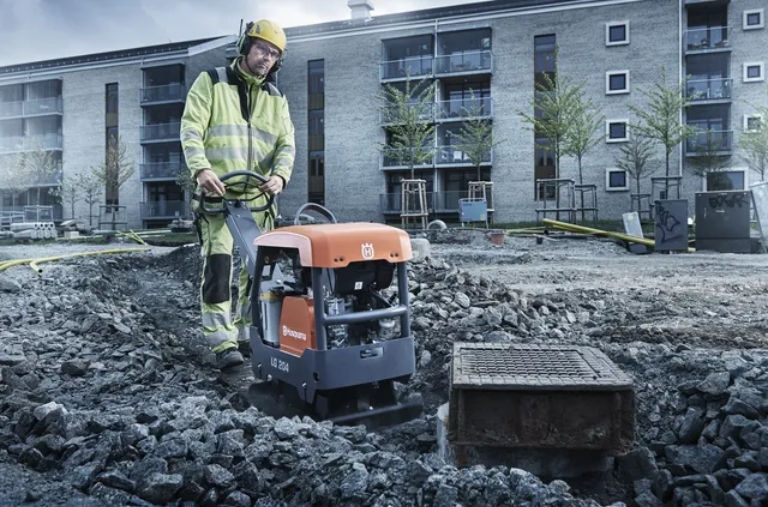

Husqvarna LG 204 Specifications & Technical Data (2020-2024)

Rate this machine now!

Weight: 228kg – Centrifugal force: 36kN – Working width: 500mm – Vibrating frequency: 65Hz – Model series: LG – Engine manuf.: Hatz

Technical specs - LG 204 Husqvarna


Notice: Every data listed is verified by LECTURA Specs team experts. However, incomplete data and mistakes might occur.Contact our team with any change suggestion.

  • Weight 228 kg
  • Centrifugal force 36 kN
  • Working width 500 mm
  • Vibrating frequency 65 Hz
  • Model series LG
  • Engine manuf. Hatz
  • Engine type 1B20
  • Engine power 3.1 kW

More technical details, like: fuel consumption range (min - max), dimension lxwxh, displacement, revolutions at max torque, max. torque, no. of cylinders, cylinder bore x stroke, emission level are available in the full technical specs.

Carbon footprint calculator for Reversible Vibratory Plate Compactors

See the ERA equipment CO2 Calculator to estimate the CO2 emissions per hour of use of the Husqvarna LG 204 or other Reversible Vibratory Plate Compactors.

The carbon footprint evaluation can be carried out considering different energy consumption scenarios or other variables.

or visit the ERA Equipment CO2 Calculator to find out how to optimise your carbon footprint.

service provided by ERA

Buy & Rent

Compare Husqvarna LG 204 with similar Reversible Vibratory Plate Compactors

Press 1 image

Husqvarna LG 204

Weight: 228 kg

Centrifugal force: 36 kN

Working width: 500 mm

Vibrating frequency: 65 Hz

Press 1 image
Wacker Neuson DPU3050He

Weight: 206 kg

Centrifugal force: 30 kN

Working width: 500 mm

Vibrating frequency: 90 Hz

Press 1 image
Palme PRK20/45D

Weight: 183 kg

Centrifugal force: 27 kN

Working width: 435x700 mm
