816H Liugong 816H Specifications & Technical Data (2023—2026)

Weight: 5.18t – Standard tyres: 16/70-20 14PR – Bucket width: 2.225m – Bucket capacity: 1m³ – Bucket capacity min.: 0.7m³ – Bucket capacity max.: 1.5m³

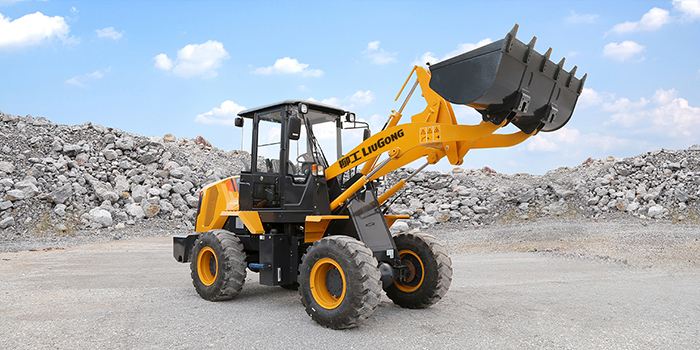

Wheel Loaders Liugong 816H

Technical specs - 816H Liugong

Specification

Notice: Every data listed is verified by LECTURA Specs team experts. However, incomplete data and mistakes might occur. Contact our team with any change suggestion.

Weight
5.18 t
Standard tyres
16/70-20 14PR
Bucket width
2.225 m
Bucket capacity
1 m³
Bucket capacity min.
0.7 m³
Bucket capacity max.
1.5 m³
Transport length
5.825 m
Transport width
1.98 m
Transport height
2.9 m
Travel speed
21 km/h
Max. discharge height
2.6 m
Turning radius outside
4.78 m
Model series
H
Engine manuf.
YUNNEI
Engine type
YN38GBZ1
Engine power
65 kW
Displacement
3.8 l
Revolutions at max torque
1800 rpm
Max. torque
285 Nm
No. of cylinders
4
Emission level
Stage II/Tier 2

More technical details, like: steering mode, lifting force, dimension lxwxh, cylinder bore x stroke are available in the full technical specs.

Basic model with ROPS cabin, std. shovel and teeth

Special equipment

Diesel particulate filter
No
Swing loader
No
telescopic
No
Aircondition
Yes
Quick hitch hydr.
No
Quick hitch mech.
No
