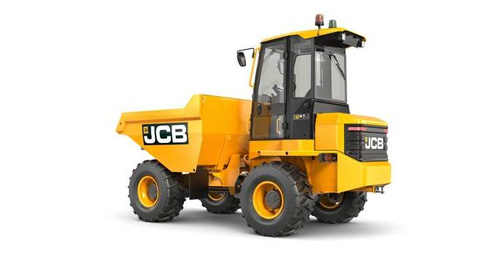

JCB 9T-1 FT Specifications & Technical Data (2017-2023)

Rate this machine now!

Weight: 5.46t – Standard tyres: 500/60-22.5 166PR – Net load: 9t – Dump capacity: 9m³ – Transport length: 4.912m – Transport width: 2.38m

Technical specs - 9T-1 FT JCB


Notice: Every data listed is verified by LECTURA Specs team experts. However, incomplete data and mistakes might occur.Contact our team with any change suggestion.

  • Weight 5.46 t
  • Standard tyres 500/60-22.5 166PR
  • Net load 9 t
  • Dump capacity 9 m³
  • Transport length 4.912 m
  • Transport width 2.38 m
  • Transport height 3.57 m
  • Travel speed 24.7 km/h
  • Loading height 2.001 m
  • Turning radius outside 6.372 m
  • Engine manuf. JCB
  • Engine type EuroMax
  • Engine power 55 kW
  • Displacement 4.4 l
  • Max. torque 400 Nm
  • No. of cylinders 4
  • Emission level Euro III B / Tier 4 f

More technical details, like: average fuel consumption, fuel consumption range (min - max), dumper type, model series, dimension lxwxh, revolutions at max torque, cylinder bore x stroke are available in the full technical specs.

Basic model with ROPS cabin and std. trough

Special equipment

  • Diesel particulate filter
  • Heated dump body
  • All-wheel drive
  • Track
  • Aircondition
