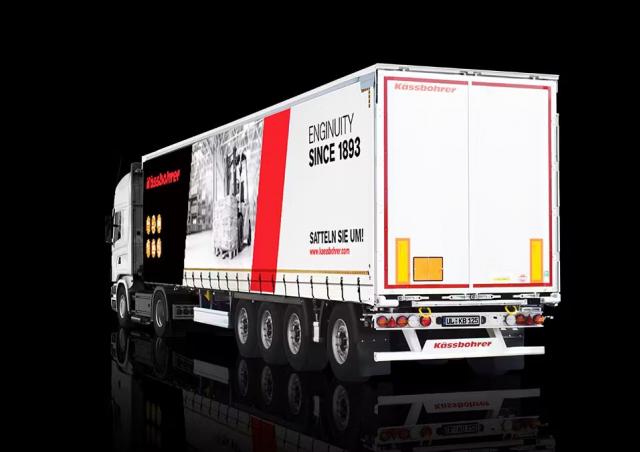

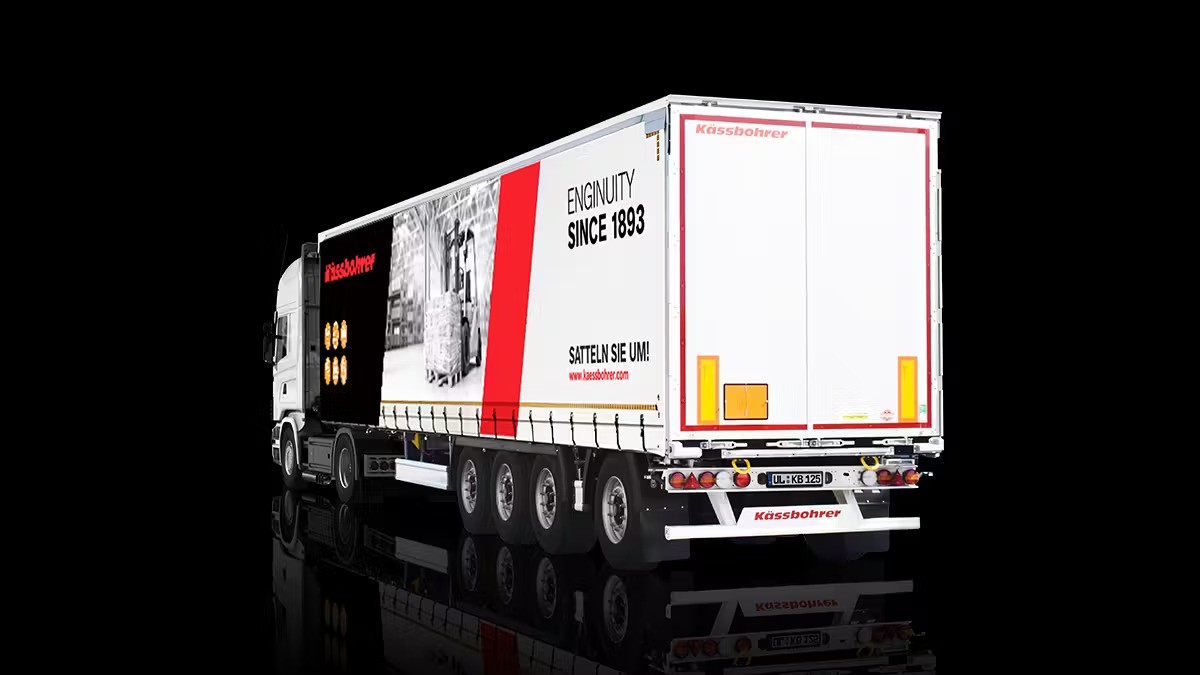

Kässbohrer K.SCX HD / 160 - 18 / 36 (2020 - 2025) Trailer Specs

max. total weight: 54000kg – Net weight: 7300kg – Net load: 46700kg – axle load: 36t – Fifth-wheel load: 12t – loading height: 112…

max. total weight: 54000kg – Net weight: 7300kg – Net load: 46700kg – axle load: 36t – Fifth-wheel load: 12t – loading height: 1120mm

All specifications of Kässbohrer K.SCX HD / 160 - 18 / 36 trailer - engine and emission standard, cab type, dimensions, weight, drive type - detailed Kässbohrer K.SCX HD / 160 - 18 / 36 trailer specs.

Technical specs - K.SCX HD / 160 - 18 / 36 Kässbohrer

Specification

Notice: Every data listed is verified by LECTURA Specs team experts. However, incomplete data and mistakes might occur. Contact our team with any change suggestion.

max. total weight
54000 kg
Net weight
7300 kg
Net load
46700 kg
axle load
36 t
Fifth-wheel load
12 t
loading height
1120 mm
Internal length
13680 mm
Internal width
2480 mm
Total length
13610 mm
Total width
2550 mm
Total height
2720 mm
Number of axles
3
Standard tyres
385/65 R 22.5
