Husqvarna LF 75 L Specifications & Technical Data (2020-2023)

Weight: 82kg – Centrifugal force: 15kN – Working width: 420mm – Vibrating frequency: 95Hz – Model series: LF – Engine manuf.: Honda

Technical specs
Buy & Rent
Events & News
Transport
Contacts & Help

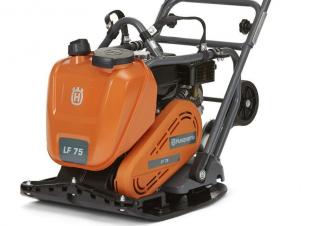

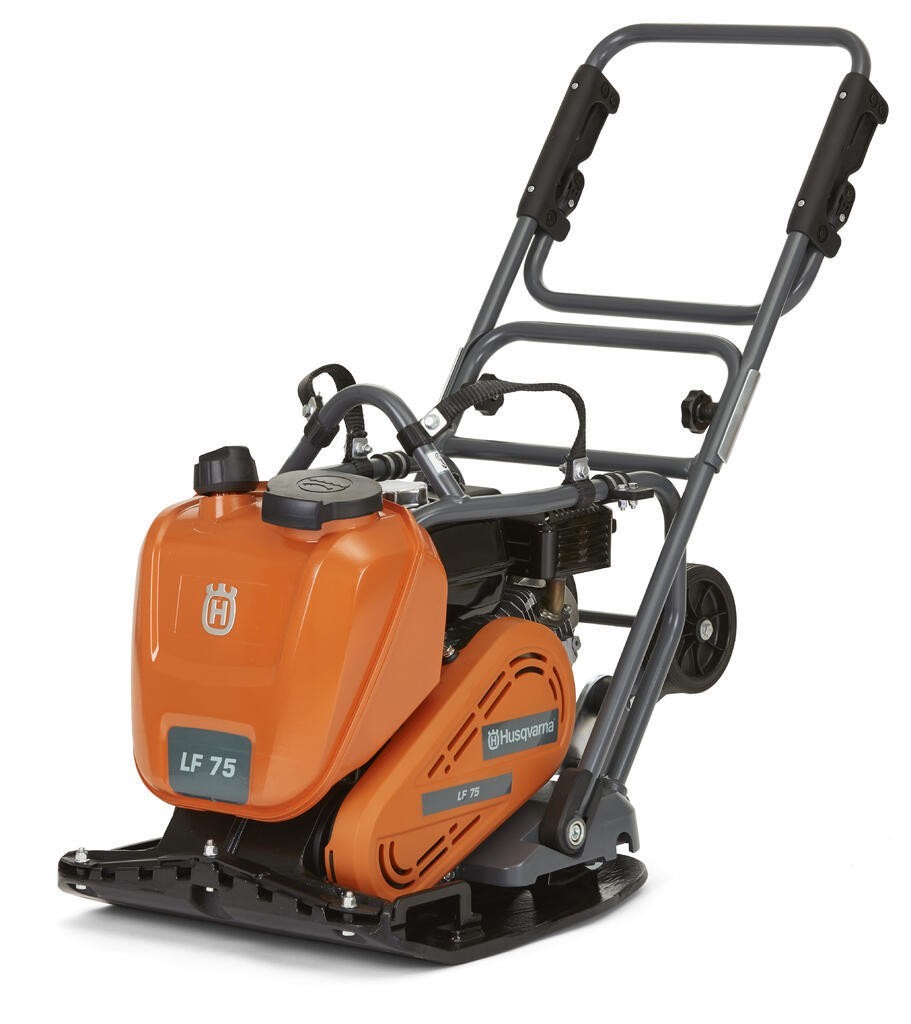

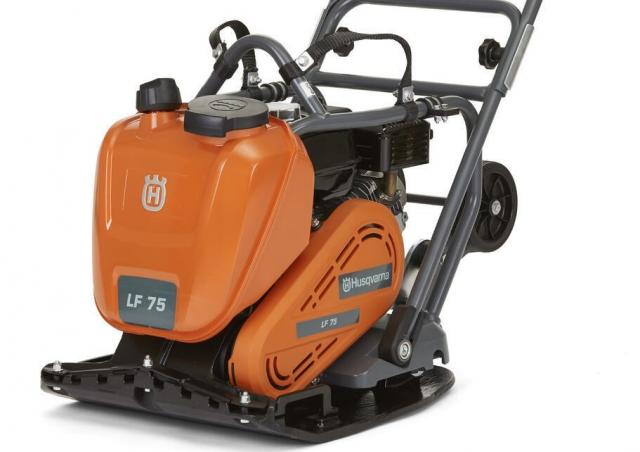

Husqvarna LF 75 L

Data sheet

Buy & Rent

Transport

Events & News

Technical specs - LF 75 L Husqvarna

Specification

Notice: Every data listed is verified by LECTURA Specs team experts. However, incomplete data and mistakes might occur.Contact our team with any change suggestion.

Weight 82 kg
Centrifugal force 15 kN
Working width 420 mm
Vibrating frequency 95 Hz
Model series LF
Engine manuf. Honda
Engine type GX160
Engine power 3.6 kW
Displacement 0.163 l
Emission level V

More technical details, like: power source, average fuel consumption, fuel consumption range (min - max), dimension lxwxh, revolutions at max torque, max. torque, no. of cylinders, cylinder bore x stroke are available in the full technical specs.
