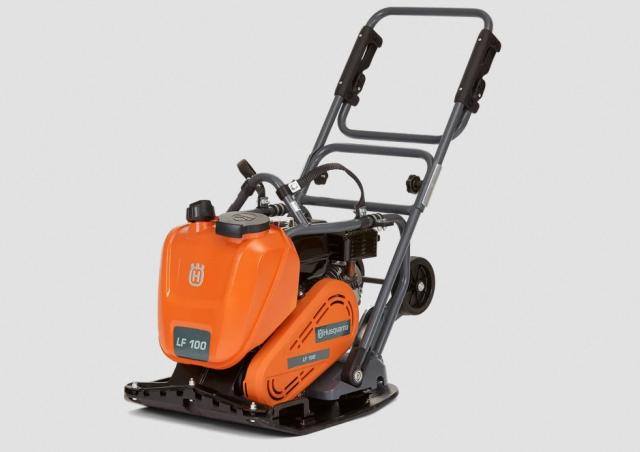

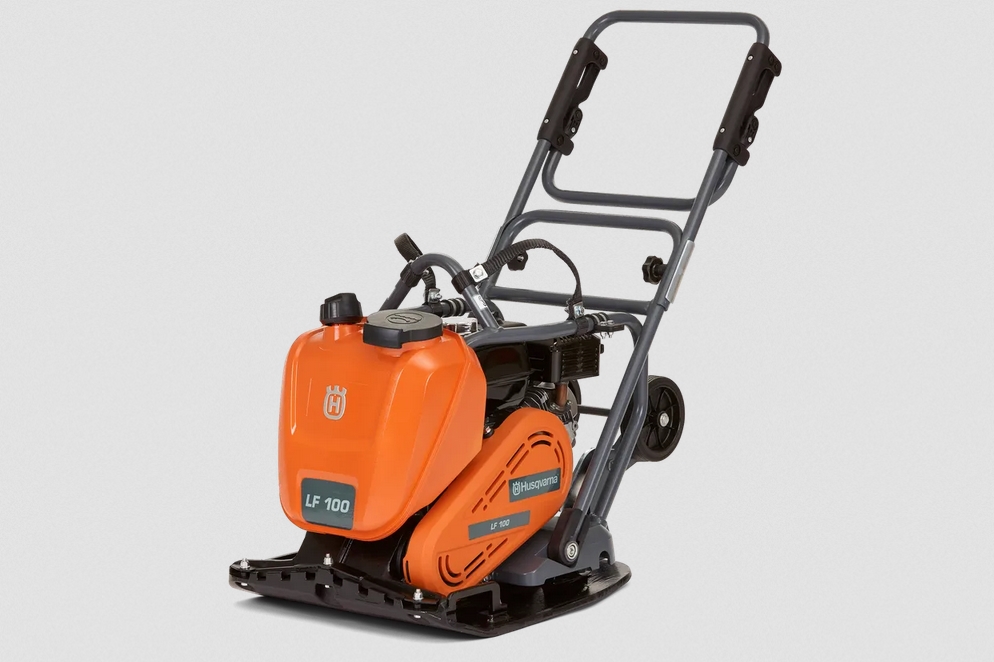

Husqvarna LF 100 LAT Specifications & Technical Data (2020-2024)

Rate this machine now!

Weight: 109kg – Centrifugal force: 17kN – Working width: 500mm – Vibrating frequency: 95Hz – Model series: LF – Engine manuf.: Honda

Technical specs - LF 100 LAT Husqvarna

Specification

Notice: Every data listed is verified by LECTURA Specs team experts. However, incomplete data and mistakes might occur.Contact our team with any change suggestion.

  • Weight 109 kg
  • Centrifugal force 17 kN
  • Working width 500 mm
  • Vibrating frequency 95 Hz
  • Model series LF
  • Engine manuf. Honda
  • Engine type GX160
  • Engine power 3.6 kW
  • Displacement 0.163 l
  • Emission level V

More technical details, like: power source, fuel consumption range (min - max), dimension lxwxh, revolutions at max torque, max. torque, no. of cylinders, cylinder bore x stroke are available in the full technical specs.

Carbon footprint calculator for Single Direction Vibratory Plate Compactors

Use the ERA equipment CO2 Calculator to find out the carbon emissions per hour of use of the Husqvarna LF 100 LAT or alternative Single Direction Vibratory Plate Compactors.

The carbon emission evaluation can be carried out based on different motor oil consumption scenarios or other variables.

or visit the ERA Equipment CO2 Calculator to find out how to optimise your CO2 emissions.

service provided by ERA

Buy & Rent

Compare Husqvarna LF 100 LAT with similar Single Direction Vibratory Plate Compactors

Press 1 image

Husqvarna LF 100 LAT

Weight: 109 kg

Centrifugal force: 17 kN

Working width: 500 mm

Vibrating frequency: 95 Hz

Press 1 image
weber mt RC 40 R

Weight: 104 kg

Centrifugal force: 16.2 kN

Working width: 415 mm

Vibrating frequency: 70 Hz

Press 1 image
Breaker BK 80-09

Weight: 106 kg

Centrifugal force: 19 kN

Working width: 620 mm

Vibrating frequency: 96 Hz

Press 1 image
Dynapac LX 90

Weight: 95 kg

Centrifugal force: 16 kN

Working width: 450 mm

Vibrating frequency: 75 Hz

Press 1 image
Rilco BP 1648 H

Weight: 105 kg

Centrifugal force: 16 kN

Working width: 480 mm

Vibrating frequency: 75 Hz
