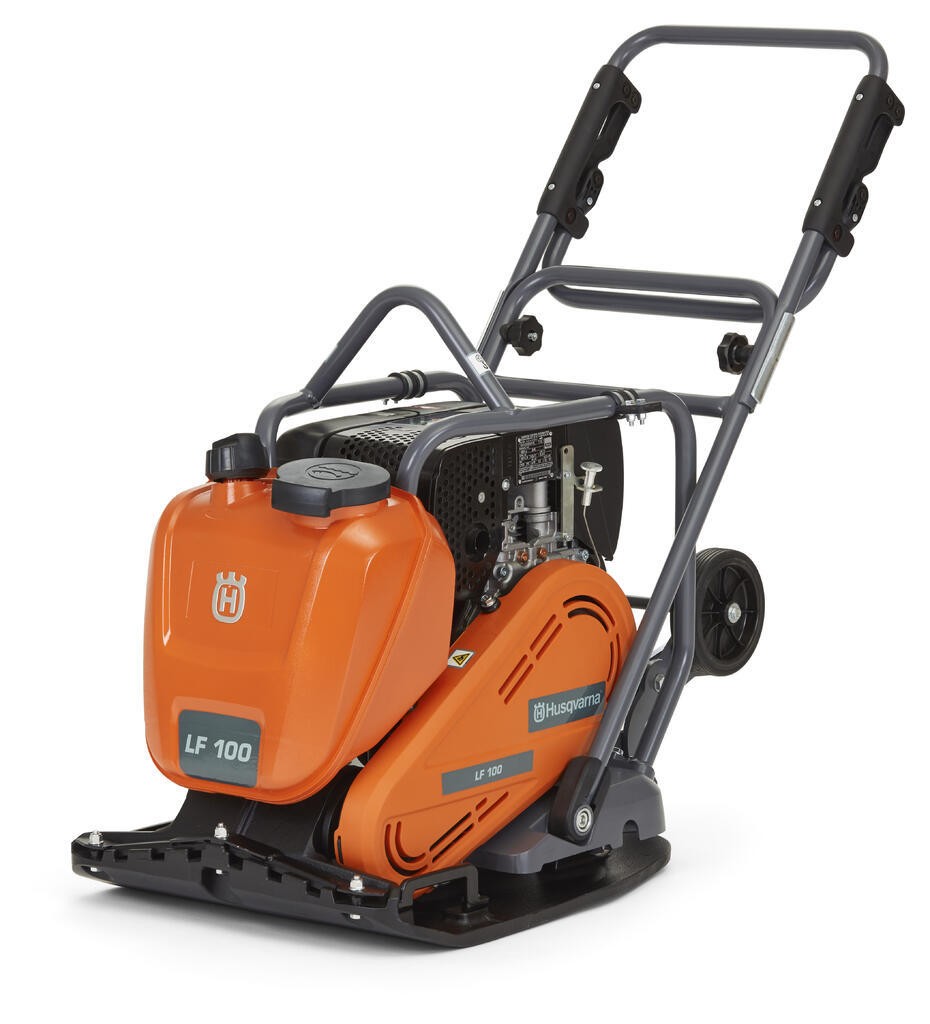

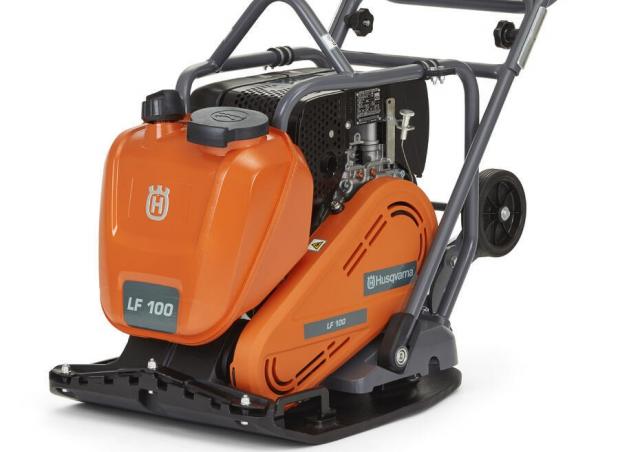

Husqvarna LF 100 L Specifications & Technical Data (2020-2023)
Weight: 106kg – Centrifugal force: 17kN – Working width: 500mm – Vibrating frequency: 95Hz – Model series: LF – Engine manuf.: Hatz
Technical specs - LF 100 L Husqvarna
Specification
Notice: Every data listed is verified by LECTURA Specs team experts. However, incomplete data and mistakes might occur.Contact our team with any change suggestion.
- Weight 106 kg
- Centrifugal force 17 kN
- Working width 500 mm
- Vibrating frequency 95 Hz
- Model series LF
- Engine manuf. Hatz
- Engine type 1B20
- Engine power 2.5 kW
More technical details, like: power source, average fuel consumption, fuel consumption range (min - max), dimension lxwxh, displacement, revolutions at max torque, max. torque, no. of cylinders, cylinder bore x stroke, emission level are available in the full technical specs.
Carbon footprint calculator for Single Direction Vibratory Plate Compactors
See the ERA equipment CO2 Calculator to track the CO2 emissions per hour of use of the Husqvarna LF 100 L or alternative Single Direction Vibratory Plate Compactors.
The carbon emission calculation can be carried out considering different fuel consumption scenarios or other variables.
or go to the ERA Equipment CO2 Calculator to find out how to optimise your carbon footprint.
service provided by
Download datasheets (PDF)
Buy & Rent
Compare Husqvarna LF 100 L with similar Single Direction Vibratory Plate Compactors
Husqvarna LF 100 L
Weight: 106 kg
Centrifugal force: 17 kN
Working width: 500 mm
Vibrating frequency: 95 Hz
Breaker BK 80-09
Weight: 106 kg
Centrifugal force: 19 kN
Working width: 620 mm
Vibrating frequency: 96 Hz
Wacker WP 1540 AW
Weight: 86 kg
Centrifugal force: 15 kN
Working width: 400 mm
Vibrating frequency: 100 Hz
Dynapac LX 90
Weight: 95 kg
Centrifugal force: 16 kN
Working width: 450 mm
Vibrating frequency: 75 Hz
Palme PTK15/45B
Weight: 96 kg
Centrifugal force: 15 kN
Working width: 450 mm
