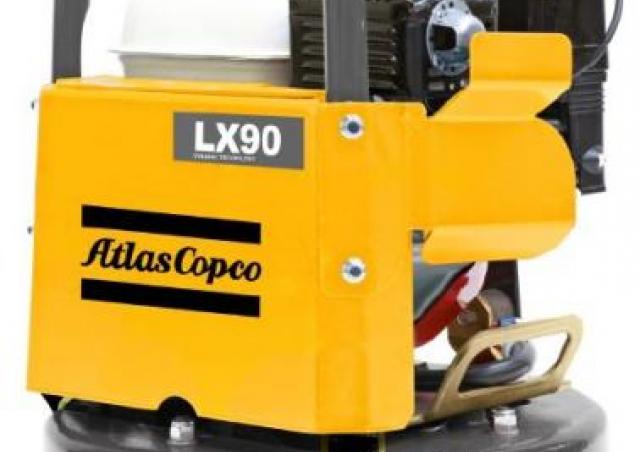

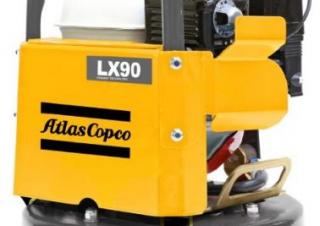

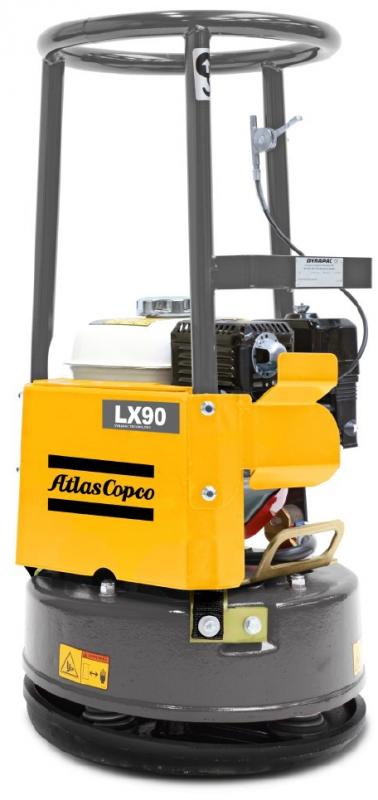

Atlas Copco LX 90
- Weight:
- 96 kg
- Centrifugal force:
- 16 kN
- Working width:
- 450 mm
- Vibrating frequency:
- 75 Hz
Atlas Copco LX 90 Specifications & Technical Data (2015-2018)
Technical specs - LX 90 Atlas Copco
Specification
Notice: Every data listed is verified by LECTURA Specs team experts. However, incomplete data and mistakes might occur. Contact our team with any change suggestion.
- Weight
- 96 kg
- Centrifugal force
- 16 kN
- Working width
- 450 mm
- Vibrating frequency
- 75 Hz
- Power source
- B
- Model series
- LX
- Engine manuf.
- Honda
- Engine type
- GX160
- Engine power
- 4 kW
- Displacement
- 0.163 l
- Revolutions at max torque
- 3600 rpm
- No. of cylinders
- 1
More technical details, like: dimension lxwxh, max. torque, cylinder bore x stroke, emission level are available in the full technical specs.
