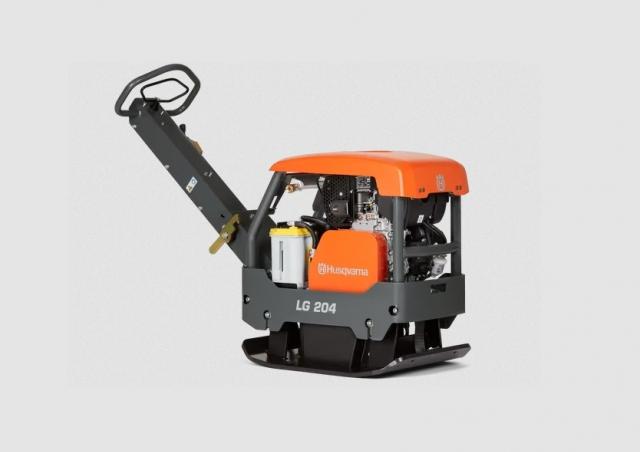

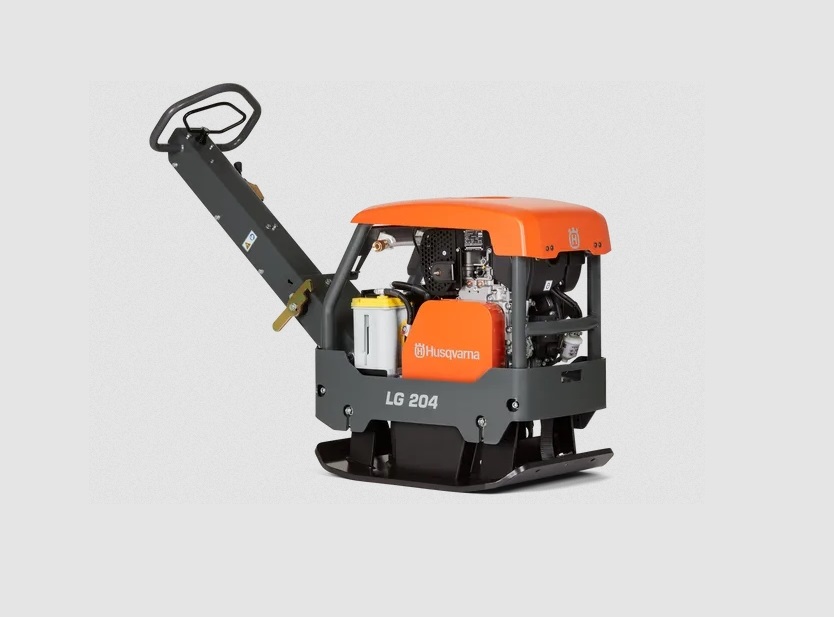

Husqvarna LG 204 Specifications & Technical Data (2020-2024)

Rate this machine now!

Weight: 251kg – Centrifugal force: 36kN – Working width: 600mm – Vibrating frequency: 65Hz – Model series: LG – Engine manuf.: Hatz

Technical specs - LG 204 Husqvarna


Notice: Every data listed is verified by LECTURA Specs team experts. However, incomplete data and mistakes might occur.Contact our team with any change suggestion.

  • Weight 251 kg
  • Centrifugal force 36 kN
  • Working width 600 mm
  • Vibrating frequency 65 Hz
  • Model series LG
  • Engine manuf. Hatz
  • Engine type 1B20
  • Engine power 3.1 kW

More technical details, like: dimension lxwxh, displacement, revolutions at max torque, max. torque, no. of cylinders, cylinder bore x stroke, emission level are available in the full technical specs.

Carbon footprint calculator for Reversible Vibratory Plate Compactors

Use the ERA equipment CO2 Calculator to estimate the CO2 emissions per hour of use of the Husqvarna LG 204 or alternative Reversible Vibratory Plate Compactors.

The footprint analysis can be carried out based on different energy consumption scenarios or other variables.

or go directly to the ERA Equipment CO2 Calculator to find out how to optimise your CO2 emissions.

service provided by ERA

Buy & Rent

Compare Husqvarna LG 204 with similar Reversible Vibratory Plate Compactors

Press 1 image

Husqvarna LG 204

Weight: 251 kg

Centrifugal force: 36 kN

Working width: 600 mm

Vibrating frequency: 65 Hz

Press 1 image
Wacker Neuson DPU3050He

Weight: 206 kg

Centrifugal force: 30 kN

Working width: 500 mm

Vibrating frequency: 90 Hz
