Lectura specs Structural and Civil Engineering Equipment Rammers Gasoline and Diesel Rammers Rammers weber mt Gasoline and Diesel Rammers weber mt weber mt SRX 75 D specifications

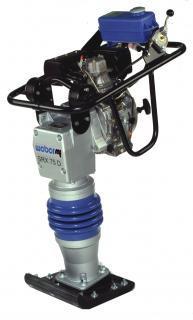

Rammers Gasoline and Diesel Rammers weber mt SRX 75 D
weber mt

weber mt SRX 75 D Specifications & Technical Data (1997-2009)

Rate this machine now!

Weight: 78kg – Tamper amplitude: 70mm – Tamper width: 280mm – Single stroke energy: 670J – max. No. of strokes: 6701/min – Power source: Diesel

Technical specs - SRX 75 D weber mt

Specification

Notice: Every data listed is verified by LECTURA Specs team experts. However, incomplete data and mistakes might occur.Contact our team with any change suggestion.

  • Weight 78 kg
  • Tamper amplitude 70 mm
  • Tamper width 280 mm
  • Single stroke energy 670 J
  • max. No. of strokes 670 1/min
  • Power source Diesel
  • Model series SRX
  • Engine manuf. Yanmar
  • Engine type L40
  • Engine power 3 kW

More technical details, like: average fuel consumption, fuel consumption range (min - max), dimension lxwxh, displacement, revolutions at max torque, max. torque, no. of cylinders, cylinder bore x stroke, emission level are available in the full technical specs.

Special equipment

  • Tamper width variable
  • driving device
