Wacker BS 500 Specifications & Technical Data (1998-2004)

Rate this machine now!

Weight: 52kg – Tamper amplitude: 60mm – Tamper width: 250mm – Single stroke energy: 60J – max. No. of strokes: 7501/min – Power source: gasoline

Technical specs - BS 500 Wacker

Specification

Notice: Every data listed is verified by LECTURA Specs team experts. However, incomplete data and mistakes might occur.Contact our team with any change suggestion.

  • Weight 52 kg
  • Tamper amplitude 60 mm
  • Tamper width 250 mm
  • Single stroke energy 60 J
  • max. No. of strokes 750 1/min
  • Power source gasoline
  • Model series BS
  • Engine manuf. Wacker
  • Engine type WM 80
  • Engine power 1.1 kW
  • Displacement 0.08 l
  • Revolutions at max torque 4400 rpm

More technical details, like: dimension lxwxh, max. torque, no. of cylinders, cylinder bore x stroke, emission level are available in the full technical specs.

Special equipment

  • Tamper width variable
  • driving device

Carbon footprint calculator for Gasoline and Diesel Rammers

Use the ERA equipment CO2 Calculator to estimate the CO2 emissions per hour of use of the Wacker BS 500 or other Gasoline and Diesel Rammers.

The carbon emission evaluation can be carried out based on different energy consumption scenarios or other variables.

or visit the ERA Equipment CO2 Calculator to find out how to optimise your CO2 emissions.

service provided by ERA

Buy & Rent

Compare Wacker BS 500 with similar Gasoline and Diesel Rammers

Press 1 image

Wacker BS 500

Weight: 52 kg

Tamper amplitude: 60 mm

Tamper width: 250 mm

Single stroke energy: 60 J

Press 1 image

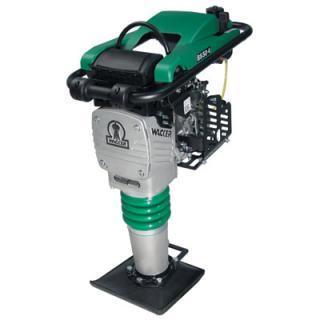

Wacker Neuson BS 50-4 As 11"

Weight: 62 kg

Tamper amplitude: 55 mm

Tamper width: 280 mm

Single stroke energy: 75 J

Press 1 image
Bomag BT 50

Weight: 54 kg

Tamper amplitude: 60 mm

Tamper width: 230 mm

Single stroke energy: 75 J

Press 1 image
Dynapac LT 52

Weight: 55 kg

Tamper amplitude: 40 mm

Tamper width: 250 mm

Press 1 image
PowerPac PPS 50 H

Weight: 50.5 kg

Tamper amplitude: 66 mm

Tamper width: 190 mm
