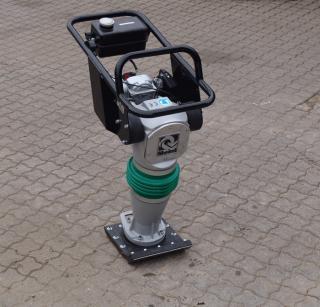

    Meinl Dieselfrosch Specifications & Technical Data (2001-2007)

    Rate this machine now!

    Weight: 73kg – Tamper amplitude: 70mm – Tamper width: 280mm – Single stroke energy: 105J – max. No. of strokes: 6501/min – Power source: Diesel

    Technical specs - Dieselfrosch Meinl

    Specification

    Notice: Every data listed is verified by LECTURA Specs team experts. However, incomplete data and mistakes might occur.Contact our team with any change suggestion.

    • Weight 73 kg
    • Tamper amplitude 70 mm
    • Tamper width 280 mm
    • Single stroke energy 105 J
    • max. No. of strokes 650 1/min
    • Power source Diesel
    • Engine manuf. Hatz
    • Engine type 1B20
    • Engine power 3.4 kW
    • Revolutions at max torque 3200 rpm

    More technical details, like: dimension lxwxh, displacement, max. torque, no. of cylinders, cylinder bore x stroke, emission level are available in the full technical specs.

    Special equipment

    • Tamper width variable
    • driving device
