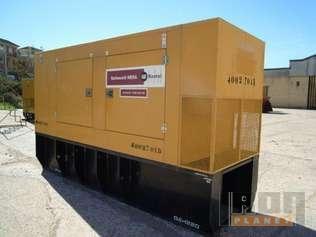

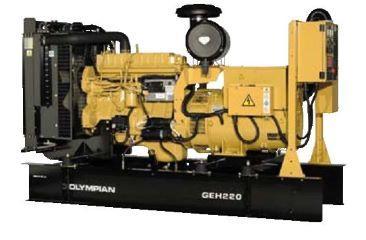

    Olympian GEH 220 Specifications & Technical Data (2000-2012)

    Rate this machine now!

    Nominal output: 200KVA – Nominal current: 289A – Nominal voltage: 400V – Weight: 3035kg – Type of cooling: w – Transport length: 4.294m

    Technical specs - GEH 220 Olympian


    Notice: Every data listed is verified by LECTURA Specs team experts. However, incomplete data and mistakes might occur.Contact our team with any change suggestion.

    • Nominal output 200 KVA
    • Nominal current 289 A
    • Nominal voltage 400 V
    • Weight 3035 kg
    • Type of cooling w
    • Transport length 4.294 m
    • Transport width 1.3 m
    • Transport height 1.875 m
    • Engine manuf. Perkins
    • Engine type 1306
    • Engine power 160 kW

    More technical details, like: carriage, dimension lxwxh, displacement, revolutions at max torque, max. torque, no. of cylinders, cylinder bore x stroke, emission level are available in the full technical specs.

    Basic model

    Special equipment

    • Electric starter
    • silenced
    • Earth leakage monitor
    • Automatic oil deficiency shutoff
    • Thermo magnetic switch
    • Ground fault circuit interrupter
