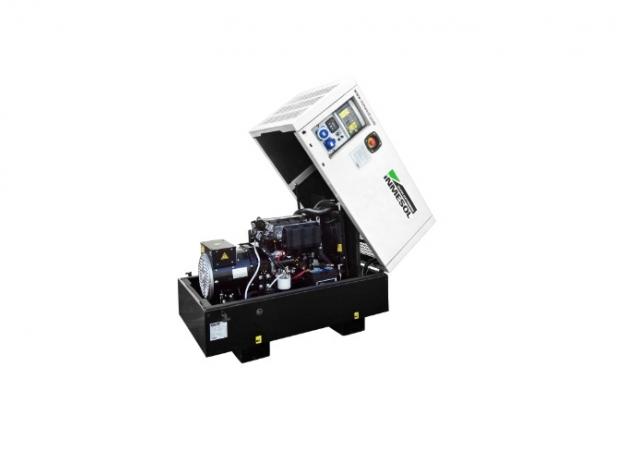

INMESOL BL-10
- Nominal output:
- 9.6 KVA
- Nominal voltage:
- 230 V
- Weight:
- 530 kg
- Type of cooling:
- l

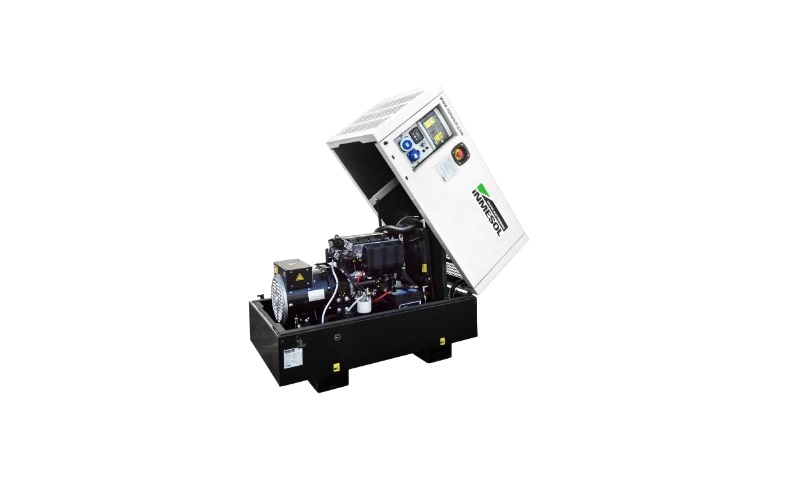

INMESOL BL-10 Specifications & Technical Data (2019-2024)
.jpg)
Technical specs - BL-10 INMESOL
Specification
Notice: Every data listed is verified by LECTURA Specs team experts. However, incomplete data and mistakes might occur. Contact our team with any change suggestion.
- Nominal output
- 9.6 KVA
- Nominal voltage
- 230 V
- Weight
- 530 kg
- Type of cooling
- l
- Transport length
- 1.5 m
- Transport width
- 0.8 m
- Transport height
- 1.03 m
- Model series
- BL
- Engine manuf.
- Lombardini
- Engine type
- LDW 1404
- Engine power
- 11.5 kW
- Displacement
- 1.4 l
- No. of cylinders
- 4
- Cylinder bore x stroke
- 75x77.6 mm
More technical details, like: nominal current, carriage, dimension lxwxh, revolutions at max torque, max. torque, emission level are available in the full technical specs.
Basic model
Special equipment
- Electric starter
-
Yes
- silenced
-
No
- Earth leakage monitor
-
No
- Automatic oil deficiency shutoff
-
No
- Thermo magnetic switch
-
No
- Ground fault circuit interrupter
-
No
