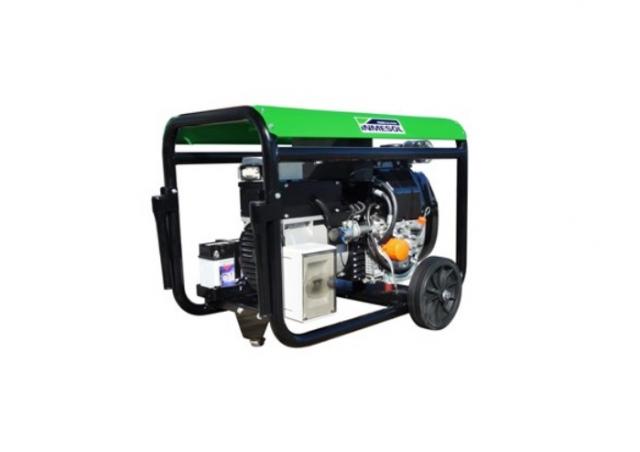

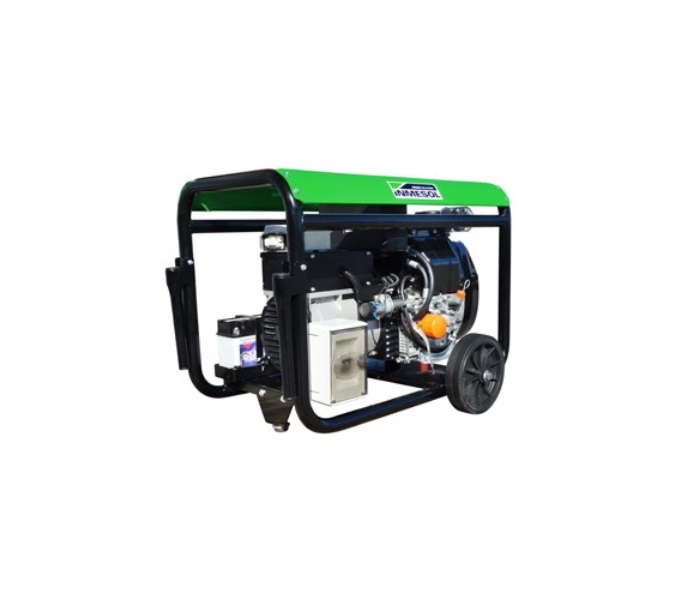

INMESOL AL 1000-CA
- Nominal output:
- 11 KVA
- Nominal current:
- 16 A
- Nominal voltage:
- 400 V
- Weight:
- 143 kg
INMESOL AL 1000-CA Specifications & Technical Data (2020-2024)
Technical specs - AL 1000-CA INMESOL
Specification
Notice: Every data listed is verified by LECTURA Specs team experts. However, incomplete data and mistakes might occur. Contact our team with any change suggestion.
- Nominal output
- 11 KVA
- Nominal current
- 16 A
- Nominal voltage
- 400 V
- Weight
- 143 kg
- Type of cooling
- l
- Transport length
- 0.95 m
- Transport width
- 0.55 m
- Transport height
- 0.665 m
- Model series
- AL
- Engine manuf.
- Lombardini
- Engine type
- 25 LD 425
- Engine power
- 11.5 kW
- Displacement
- 0.851 l
- No. of cylinders
- 2
- Cylinder bore x stroke
- 85x75 mm
More technical details, like: carriage, dimension lxwxh, revolutions at max torque, max. torque, emission level are available in the full technical specs.
Basic model
Special equipment
- Electric starter
-
Yes
- silenced
-
No
- Earth leakage monitor
-
No
- Automatic oil deficiency shutoff
-
No
- Thermo magnetic switch
-
No
- Ground fault circuit interrupter
-
No
Download datasheets (PDF)
