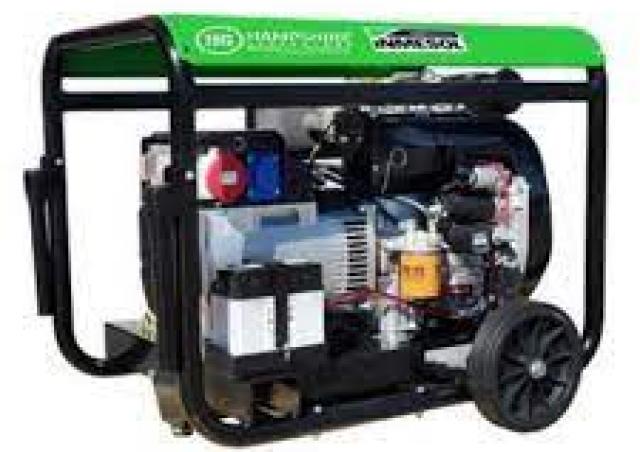

INMESOL AKD-1500-CA Specifications & Technical Data (2018-2021)

Nominal output: 16KVA – Nominal current: 16A – Nominal voltage: 400V – Weight: 198kg – Type of cooling: l – Transport length: 0.95m

Technical specs - AKD-1500-CA INMESOL

Specification

Notice: Every data listed is verified by LECTURA Specs team experts. However, incomplete data and mistakes might occur. Contact our team with any change suggestion.

Nominal output
16 KVA
Nominal current
16 A
Nominal voltage
400 V
Weight
198 kg
Type of cooling
l
Transport length
0.95 m
Transport width
0.64 m
Transport height
0.715 m
Model series
AKD
Engine manuf.
Kohler
Engine type
KD477-2
Engine power
14.9 kW
Displacement
0.954 l
No. of cylinders
2
Cylinder bore x stroke
90x75 mm

More technical details, like: carriage, dimension lxwxh, revolutions at max torque, max. torque, emission level are available in the full technical specs.

Basic model

Special equipment

Electric starter
Yes
silenced
No
Earth leakage monitor
No
Automatic oil deficiency shutoff
No
Thermo magnetic switch
No
Ground fault circuit interrupter
No
