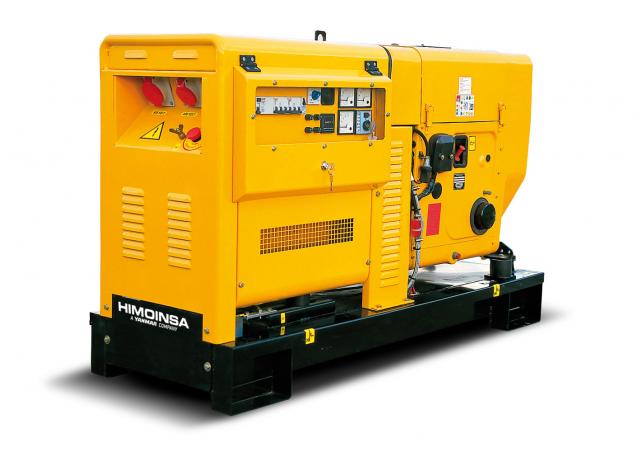

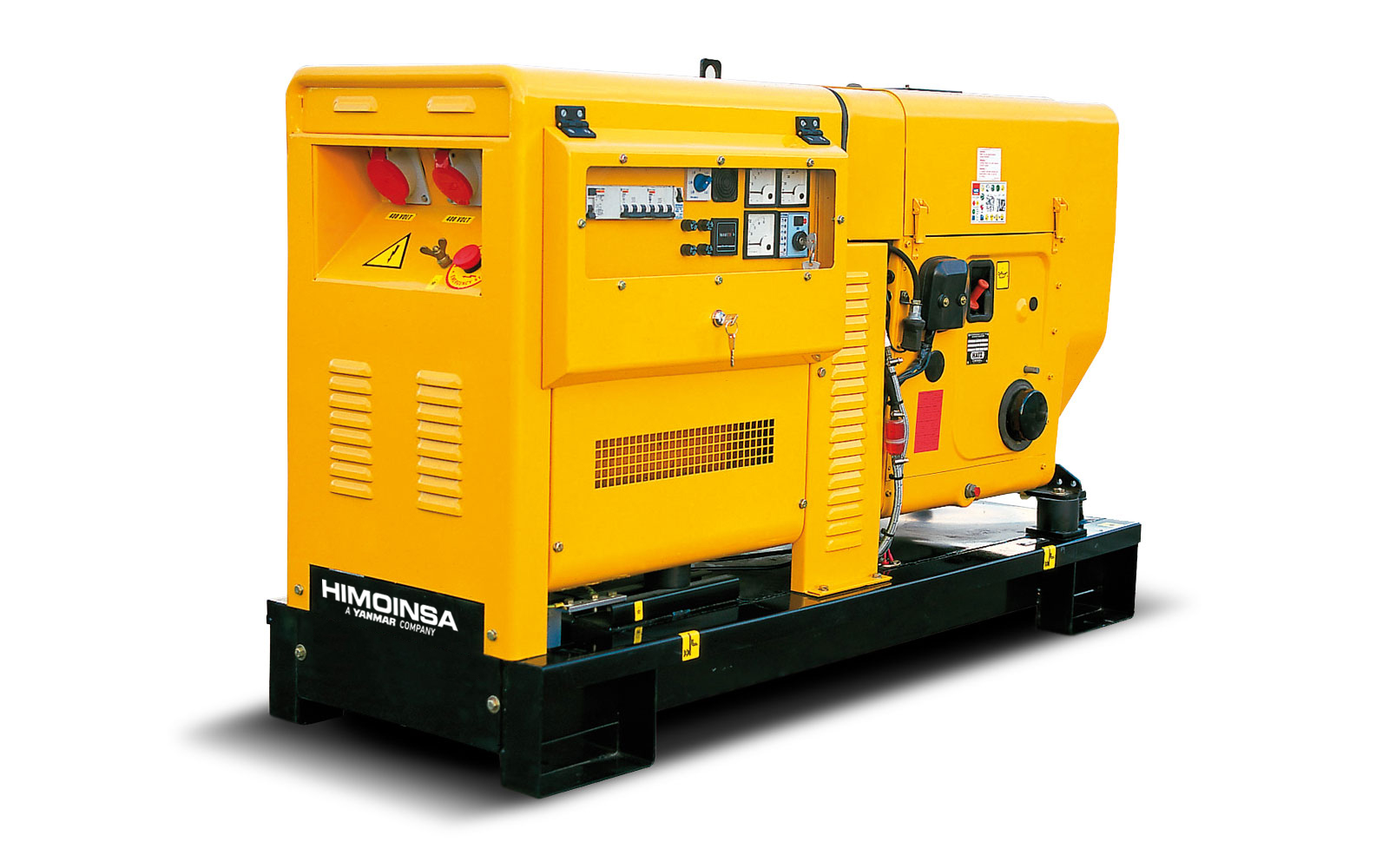

HIMOINSA HZA1-4C M5
- Nominal output:
- 3.9 KVA
- Nominal voltage:
- 230 V
- Weight:
- 248 kg
- Type of cooling:
- l
HIMOINSA HZA1-4C M5 Specifications & Technical Data (2025-2025)
Technical specs - HZA1-4C M5 HIMOINSA
Specification
Notice: Every data listed is verified by LECTURA Specs team experts. However, incomplete data and mistakes might occur. Contact our team with any change suggestion.
- Nominal output
- 3.9 KVA
- Nominal voltage
- 230 V
- Weight
- 248 kg
- Type of cooling
- l
- Transport length
- 1.125 m
- Transport width
- 0.671 m
- Transport height
- 0.894 m
- Engine manuf.
- Hatz
- Engine type
- 1D81C
- Engine power
- 4.9 kW
- Displacement
- 0.667 l
- No. of cylinders
- 1
- Cylinder bore x stroke
- 100x85 mm
- Emission level
- Stage V
More technical details, like: nominal current, carriage, model series, dimension lxwxh, revolutions at max torque, max. torque are available in the full technical specs.
Basic model
Special equipment
- Electric starter
-
No
- silenced
-
No
- Earth leakage monitor
-
No
- Automatic oil deficiency shutoff
-
No
- Thermo magnetic switch
-
No
- Ground fault circuit interrupter
-
No
