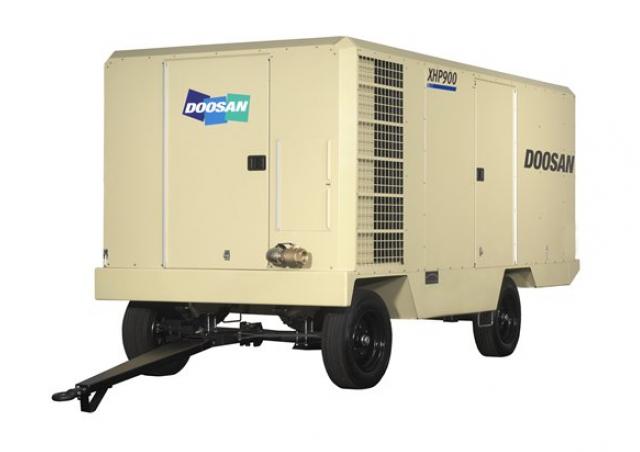

Doosan XHP900WCAT
- Volume flow:
- 25.5 m³/min
- Engine power:
- 298 kW
- Max. pressure:
- 24.1 bar
- Weight:
- 5761 kg
Doosan XHP900WCAT Specifications & Technical Data (2019-2024)
Technical specs - XHP900WCAT Doosan
Specification
Notice: Every data listed is verified by LECTURA Specs team experts. However, incomplete data and mistakes might occur. Contact our team with any change suggestion.
- Volume flow
- 25.5 m³/min
- Engine power
- 298 kW
- Max. pressure
- 24.1 bar
- Weight
- 5761 kg
- Power source
- Diesel
- Transport length
- 4.75 m
- Transport width
- 2.25 m
- Transport height
- 2.28 m
- Model series
- XHP
- Engine manuf.
- Caterpillar
- Engine type
- 3406
- Displacement
- 14.6 l
- Revolutions at max torque
- 1800 rpm
- No. of cylinders
- 6
- Emission level
- T1
More technical details, like: voltage, frequency, additional power set, dimension lxwxh, max. torque, cylinder bore x stroke are available in the full technical specs.
