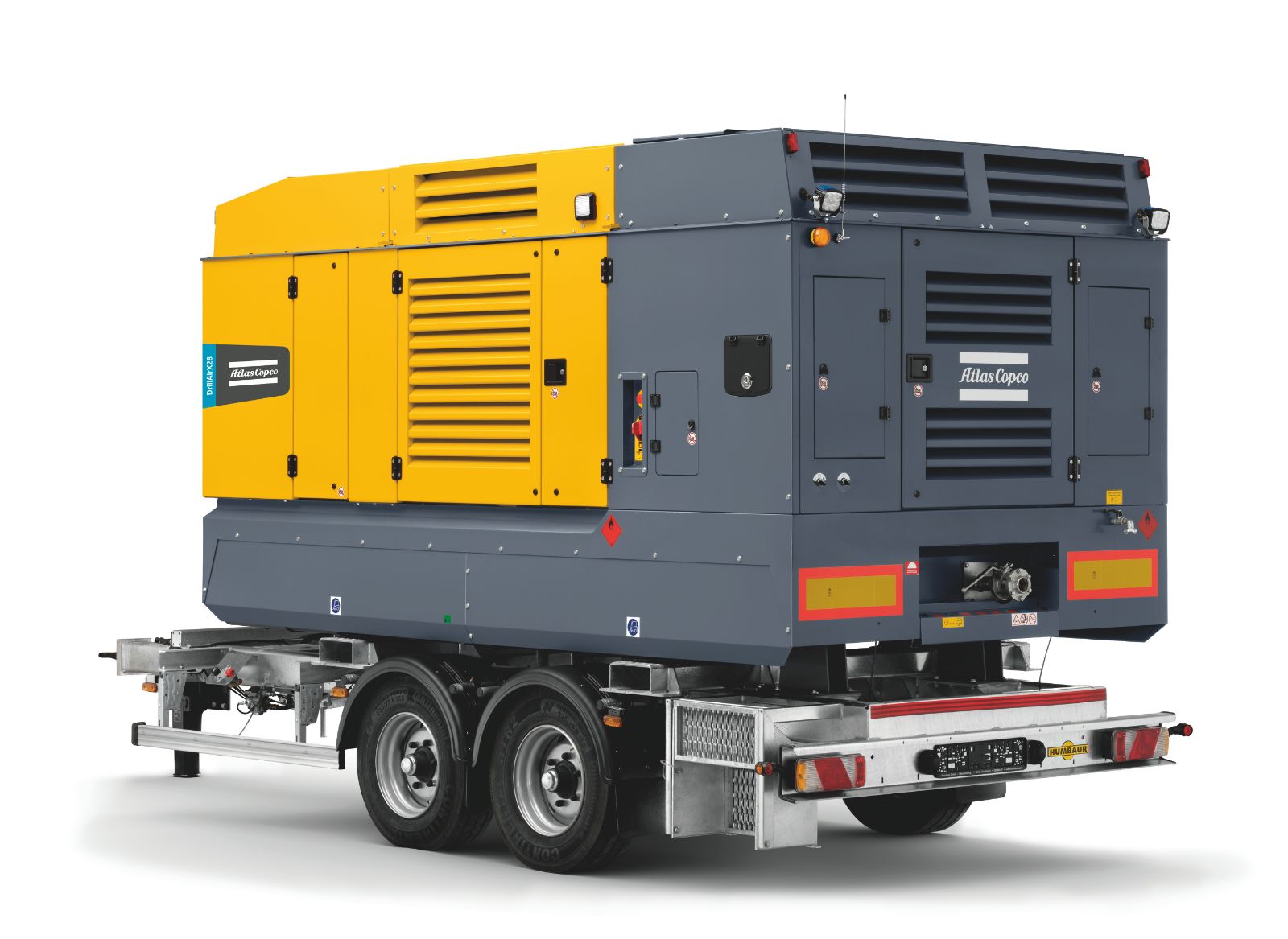

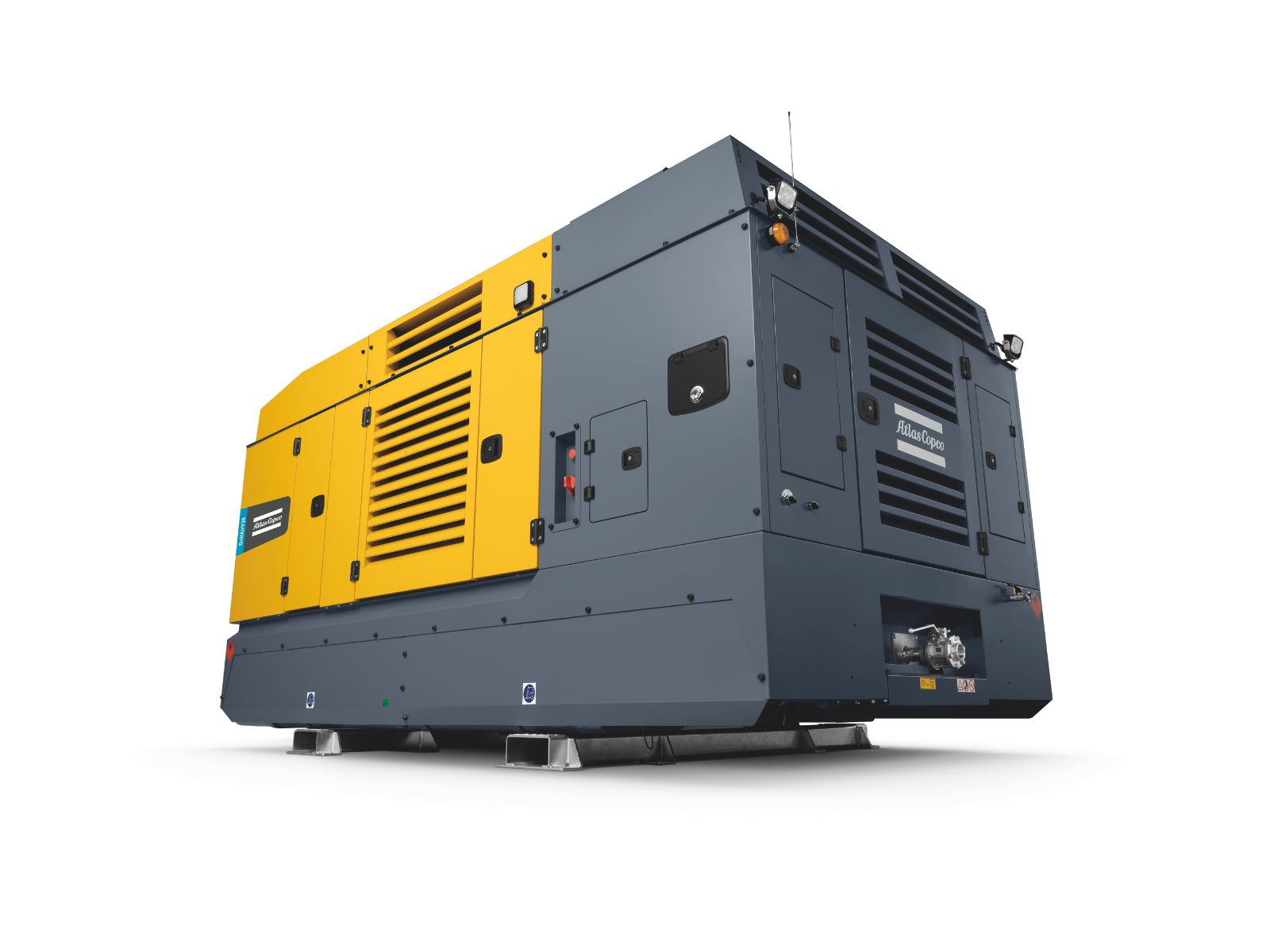

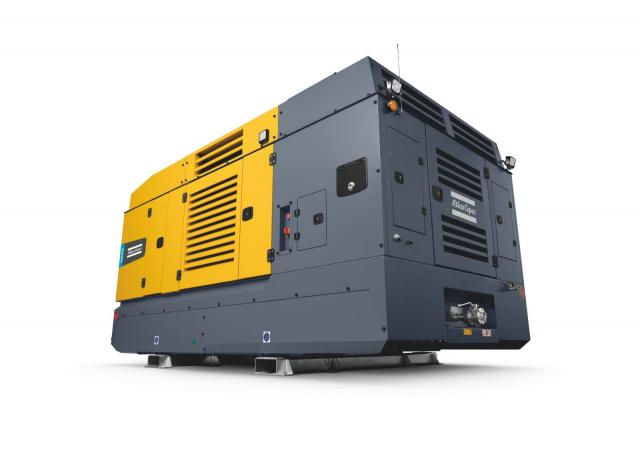

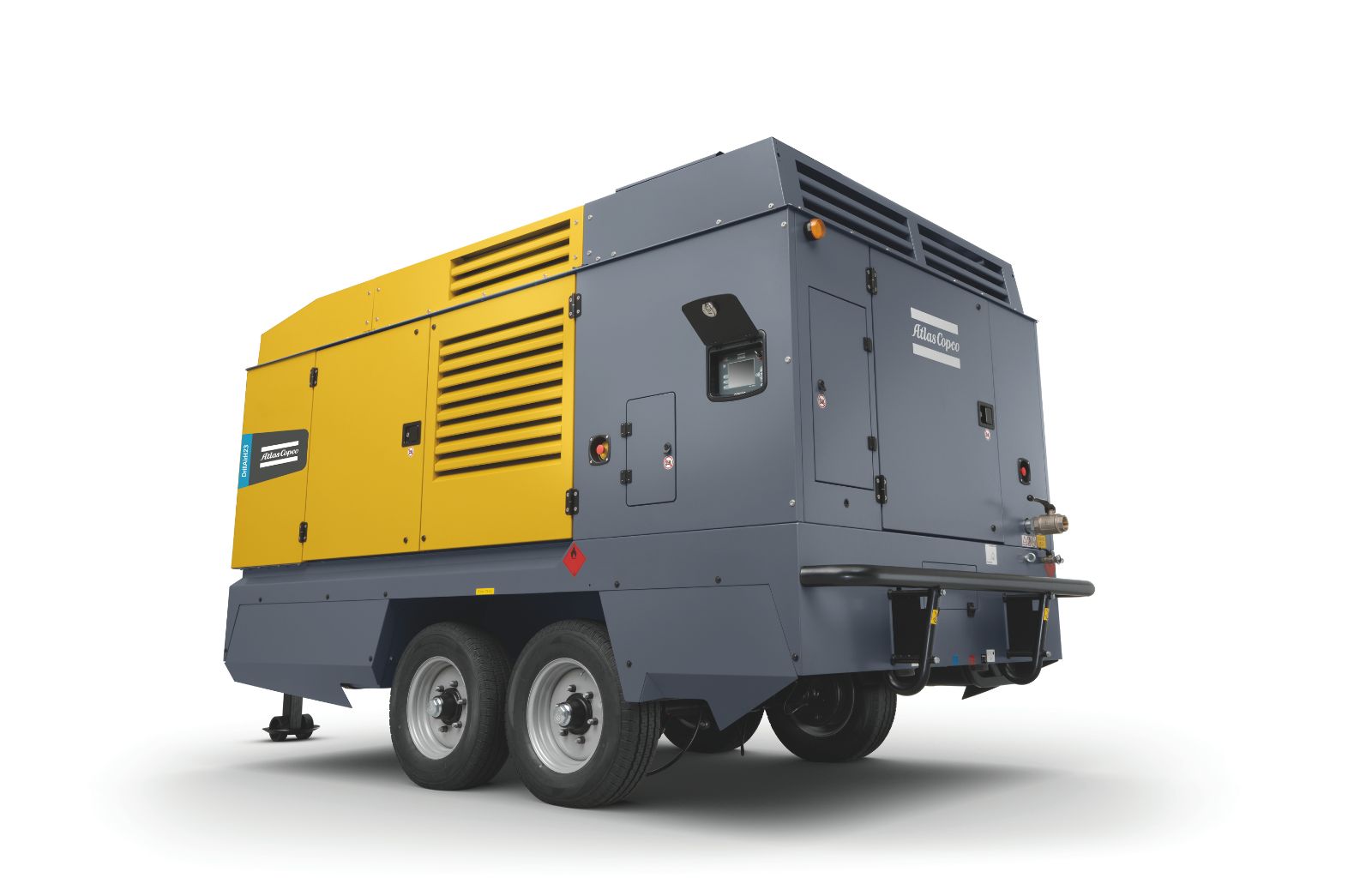

Atlas Copco DrillAir Y35 Specifications & Technical Data (2020-2025)

Volume flow: 34.8m³/min – Engine power: 478kW – Max. pressure: 35bar – Weight: 10017kg – Transport length: 6.85m – Transport width: 2.34m

Technical specs - DrillAir Y35 Atlas Copco

Specification

Notice: Every data listed is verified by LECTURA Specs team experts. However, incomplete data and mistakes might occur. Contact our team with any change suggestion.

Volume flow
34.8 m³/min
Engine power
478 kW
Max. pressure
35 bar
Weight
10017 kg
Transport length
6.85 m
Transport width
2.34 m
Transport height
3.1 m
Model series
DrillAir
Engine manuf.
Scania
Engine type
DC 16
Revolutions at max torque
1900 rpm
Emission level
V

More technical details, like: voltage, frequency, power source, additional power set, dimension lxwxh, displacement, max. torque, no. of cylinders, cylinder bore x stroke are available in the full technical specs.
