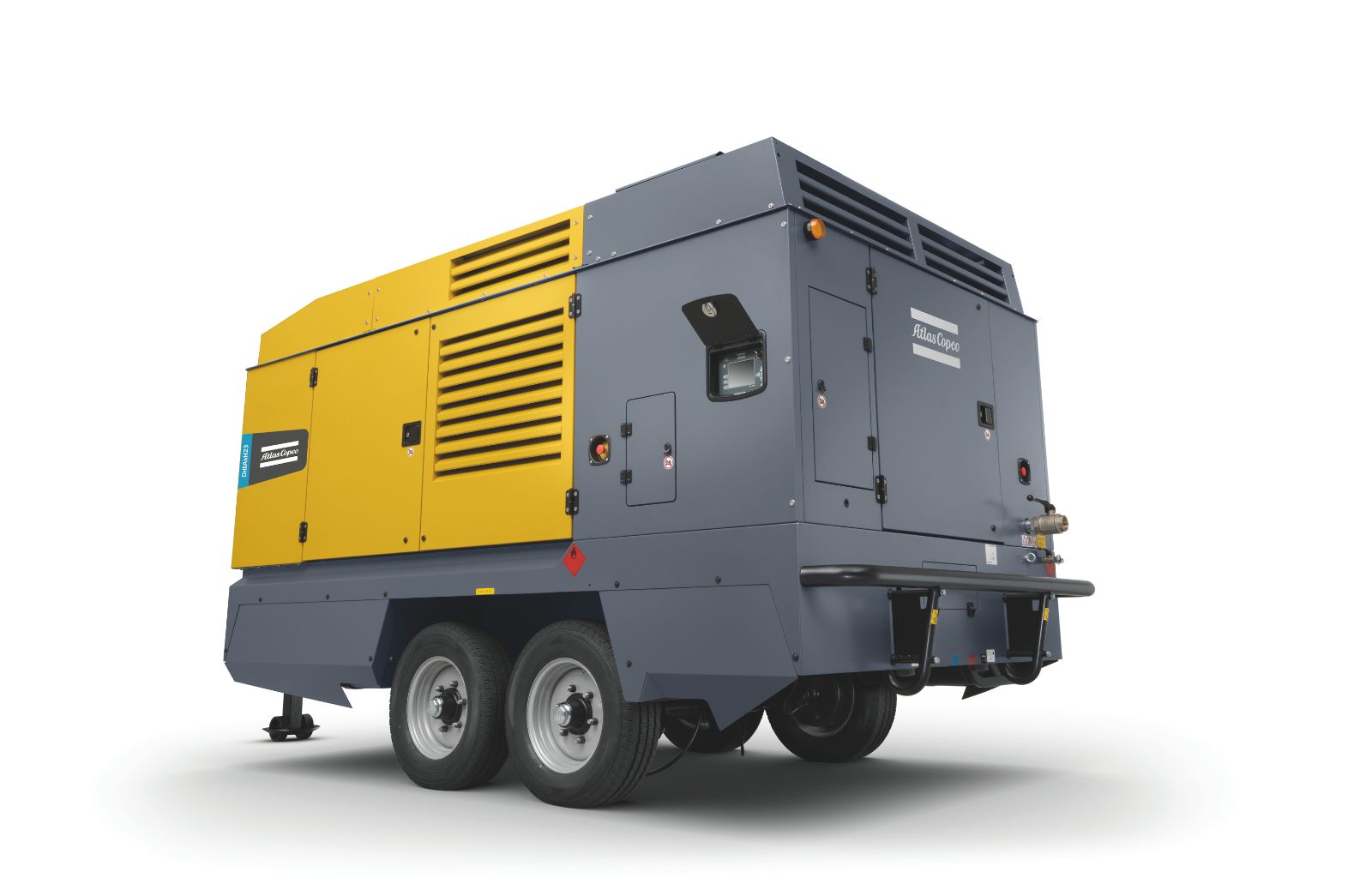

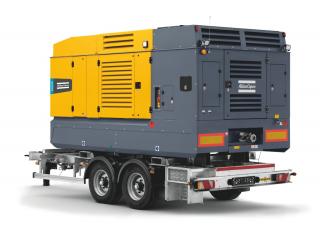

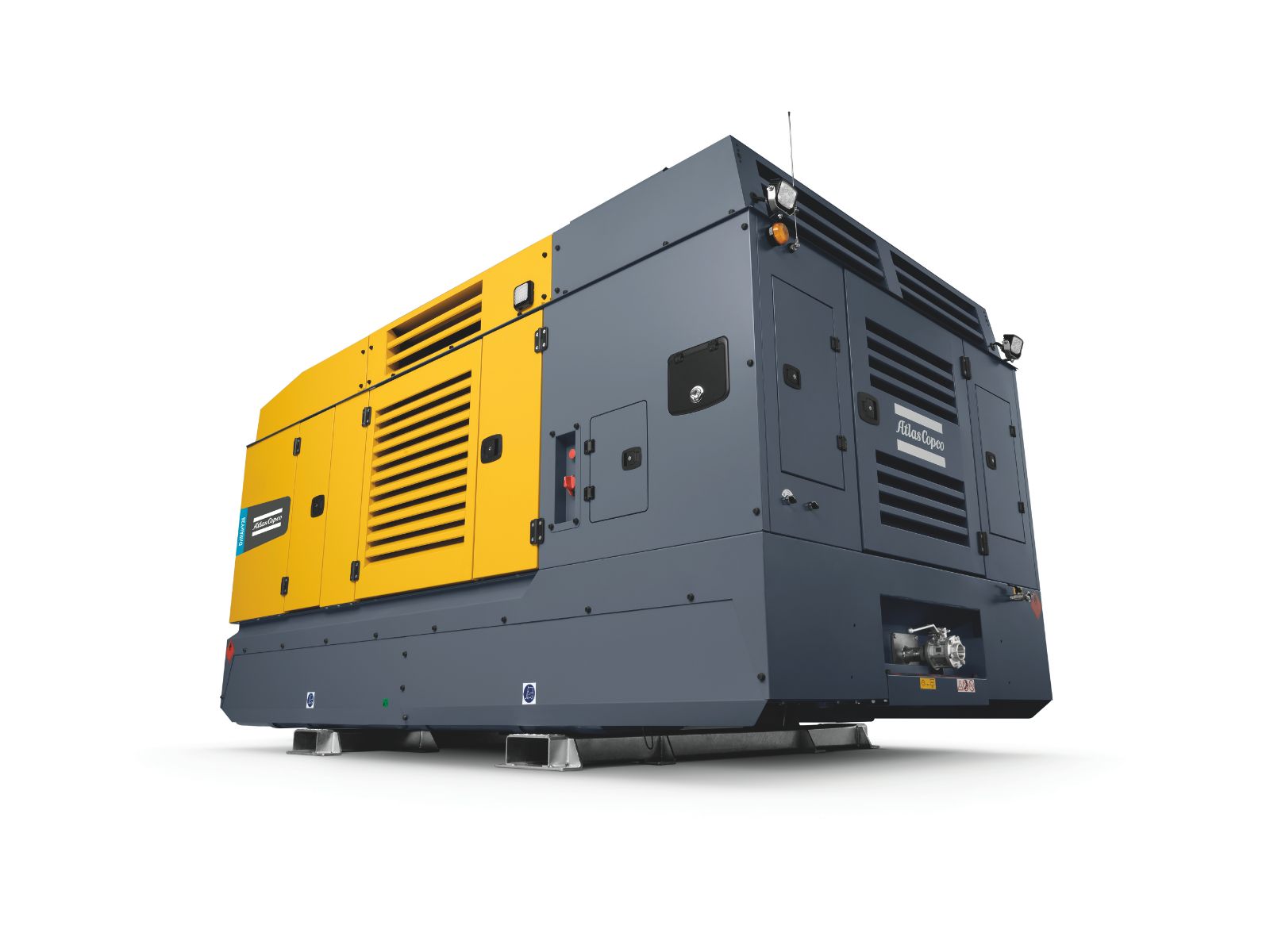

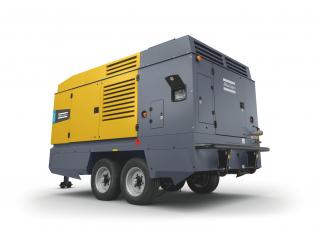

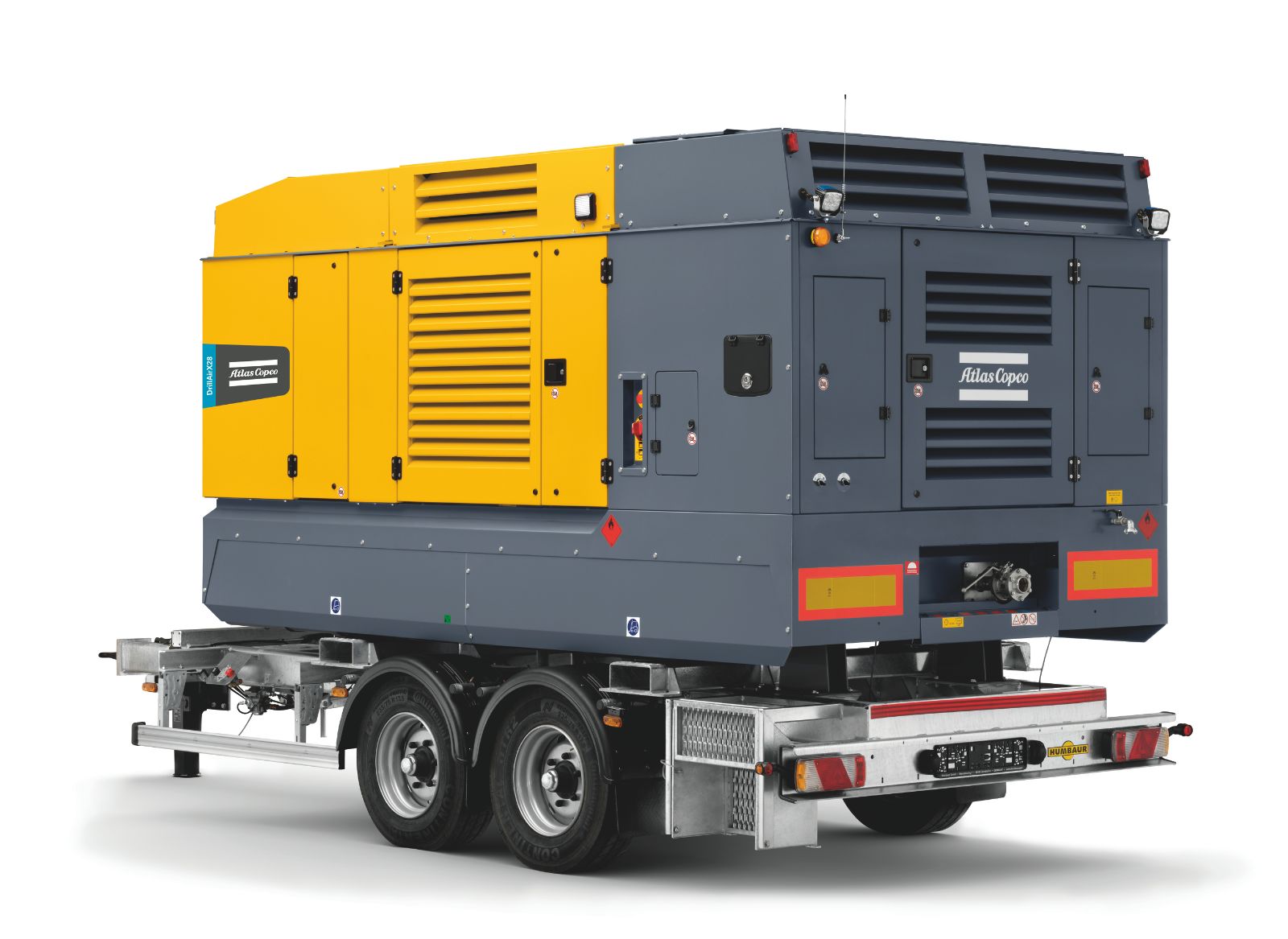

Atlas Copco DrillAir H32 Specifications & Technical Data (2020-2025)
.jpeg)
.jpeg)
.jpeg)
.jpeg)
.jpeg)
.jpeg)
Technical specs - DrillAir H32 Atlas Copco
Specification
Notice: Every data listed is verified by LECTURA Specs team experts. However, incomplete data and mistakes might occur. Contact our team with any change suggestion.
- Volume flow
- 32.5 m³/min
- Engine power
- 369 kW
- Max. pressure
- 20 bar
- Weight
- 6965 kg
- Transport length
- 5.71 m
- Transport width
- 2.14 m
- Transport height
- 2.59 m
- Model series
- DrillAir
- Engine manuf.
- Scania
- Engine type
- DC 13
- Revolutions at max torque
- 1800 rpm
- Emission level
- V
More technical details, like: voltage, frequency, power source, additional power set, dimension lxwxh, displacement, max. torque, no. of cylinders, cylinder bore x stroke are available in the full technical specs.
Download datasheets (PDF)
