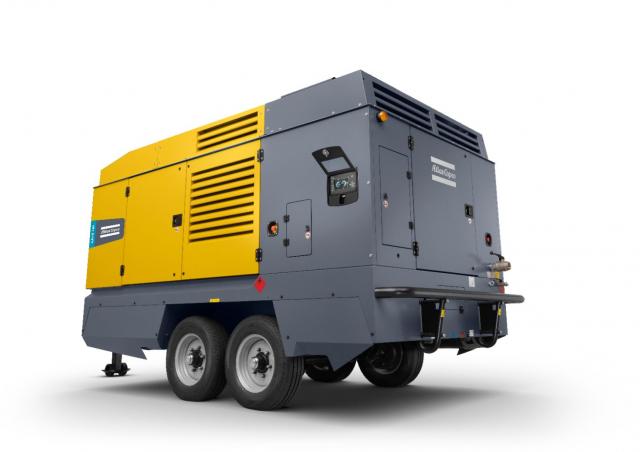

Atlas Copco XATS 528 SD
- Volume flow:
- 30.6 m³/min
- Max. pressure:
- 10.3 bar
- Weight:
- 6492 kg
- Power source:
- Diesel
Atlas Copco XATS 528 SD Specifications & Technical Data (2020-2025)
.jpeg)
Technical specs - XATS 528 SD Atlas Copco
Specification
Notice: Every data listed is verified by LECTURA Specs team experts. However, incomplete data and mistakes might occur. Contact our team with any change suggestion.
- Volume flow
- 30.6 m³/min
- Max. pressure
- 10.3 bar
- Weight
- 6492 kg
- Power source
- Diesel
- Transport length
- 5.71 m
- Transport width
- 2.14 m
- Transport height
- 2.59 m
- Engine power
- 232 kW
- Model series
- XATS
- Engine manuf.
- Scania
- Engine type
- DC 9
- Displacement
- 9.3 l
- Revolutions at max torque
- 1800 rpm
- Emission level
- V
More technical details, like: additional power set, voltage, frequency, dimension lxwxh, max. torque, no. of cylinders, cylinder bore x stroke are available in the full technical specs.
Download datasheets (PDF)
