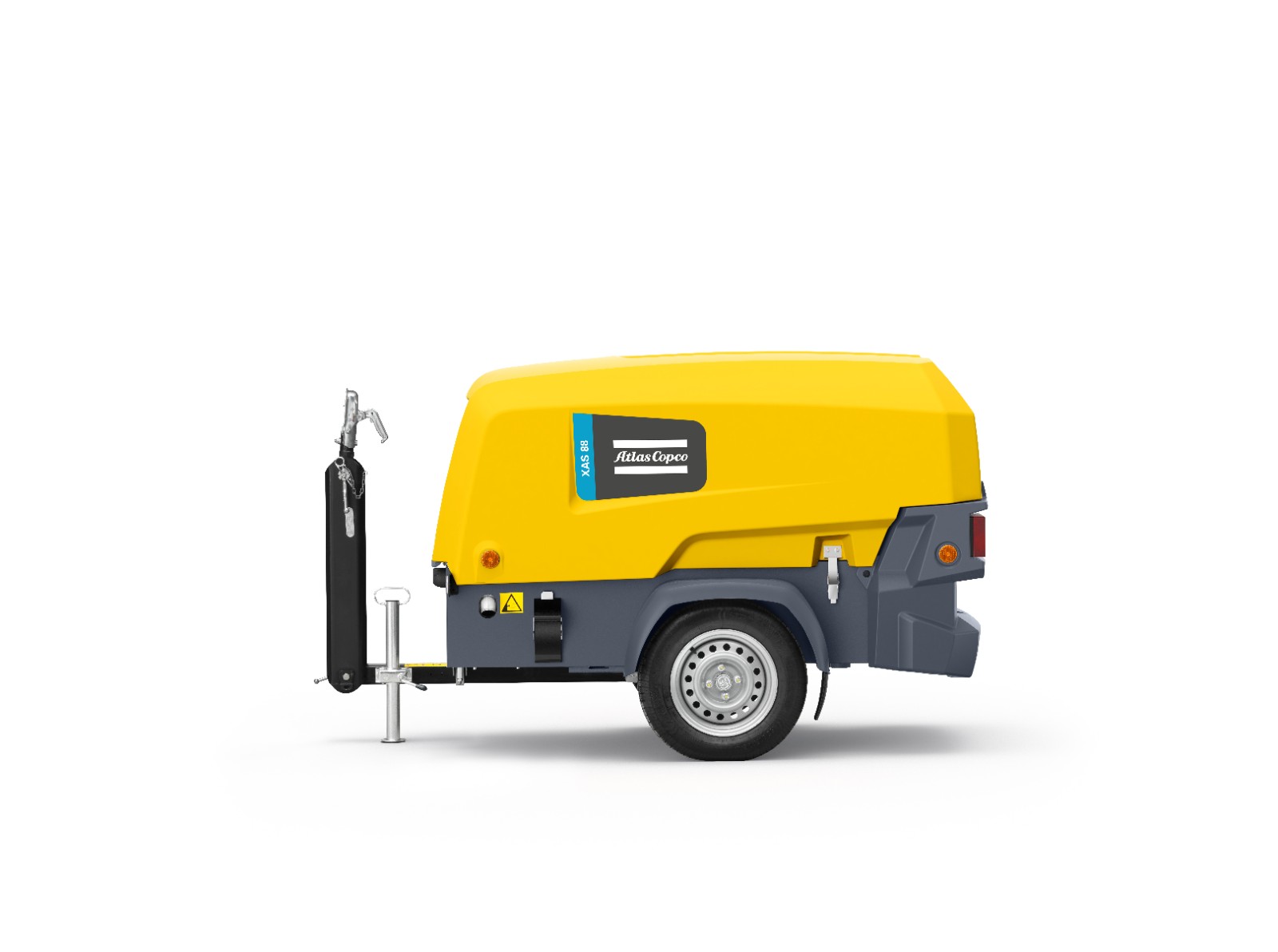

Atlas Copco XAS 88-7 Kd Specifications & Technical Data (2021-2025)

Volume flow: 4.9m³/min – Max. pressure: 7bar – Weight: 747kg – Power source: Diesel – Transport length: 3.265m – Transport width: 1.345m

Technical specs - XAS 88-7 Kd Atlas Copco

Specification

Notice: Every data listed is verified by LECTURA Specs team experts. However, incomplete data and mistakes might occur. Contact our team with any change suggestion.

Volume flow
4.9 m³/min
Max. pressure
7 bar
Weight
747 kg
Power source
Diesel
Transport length
3.265 m
Transport width
1.345 m
Transport height
1.4 m
Engine power
33 kW
Model series
XAS
Engine manuf.
Kubota
Engine type
D1505 CR-T-E5B
Revolutions at max torque
3000 rpm

More technical details, like: additional power set, voltage, frequency, dimension lxwxh, displacement, max. torque, no. of cylinders, cylinder bore x stroke, emission level are available in the full technical specs.

Buy & Rent

Compare Atlas Copco XAS 88-7 Kd with similar Portable Air Compressors - Diesel, Electric, Gasoline

Atlas Copco XAS 88-7 Kd

Atlas Copco XAS 88-7 Kd

Volume flow:
4.9 m³/min
Max. pressure:
7 bar
Weight:
747 kg
Power source:
Diesel
Rotair MDVN 41 A

Rotair MDVN 41 A

Volume flow:
4.1 m³/min
Max. pressure:
7 bar
Weight:
820 kg
Power source:
Diesel
