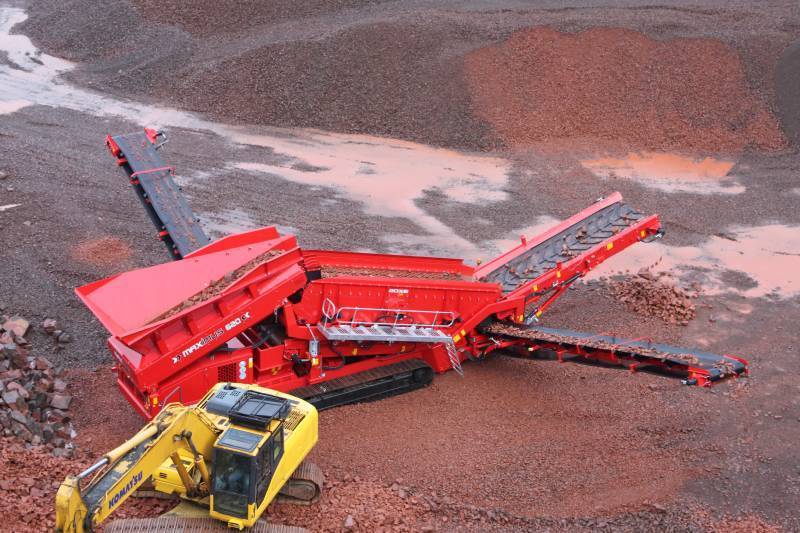

Maximus 620 screener specs & technical data (2017 - 2023)
Weight: 38.7t – Transport length: 16.9m – Transport width: 3m – Transport height: 3.6m – Type of screen: MS – Plant type: RM... Read more
Weight: 38.7t – Transport length: 16.9m – Transport width: 3m – Transport height: 3.6m – Type of screen: MS – Plant type: RM
Check out detailed specifications, information and technical data for Maximus 620 screener manufactured between 2017 - 2023. Get more in-depth insight with Maximus 620 screening machine. See information, like: Weight: 38.7t – Transport length: 16.9m – Transport width: 3m – Transport height: 3.6m – Type of screen: MS – Plant type: RM and more.
Technical specs - 620 Maximus
Specification
Notice: Every data listed is verified by LECTURA Specs team experts. However, incomplete data and mistakes might occur.Contact our team with any change suggestion.
- Weight 38.7 t
- Transport length 16.9 m
- Transport width 3 m
- Transport height 3.6 m
- Type of screen MS
- Plant type RM
- Screen width 1.8 m
- Screen length 6.1 m
- Drive power 167 kW
- Maximum Number of screens 2
- Hopper capacity 8.7 m³
- Main conveyor width 1400 mm
- Side conveyor width 1000 mm
More technical details, like: drive, model series are available in the full technical specs.
Type of plant: KU = skid unit, PB = impeller breaker , RM = mobile track, RA = mobile wheeled, CO = with container
Carbon footprint calculator for Mobile Screening Plants
See the ERA equipment CO2 Calculator to find out the CO2 emissions per hour of use of the Maximus 620 or alternative Mobile Screening Plants.
The emission calculation can be performed based on different biofuel scenarios or other variables.
or go to the ERA Equipment CO2 Calculator to calculate how to optimise your carbon footprint.
