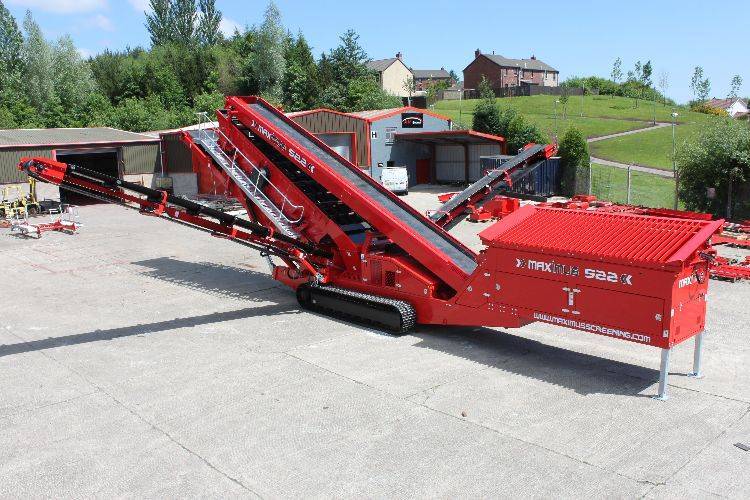

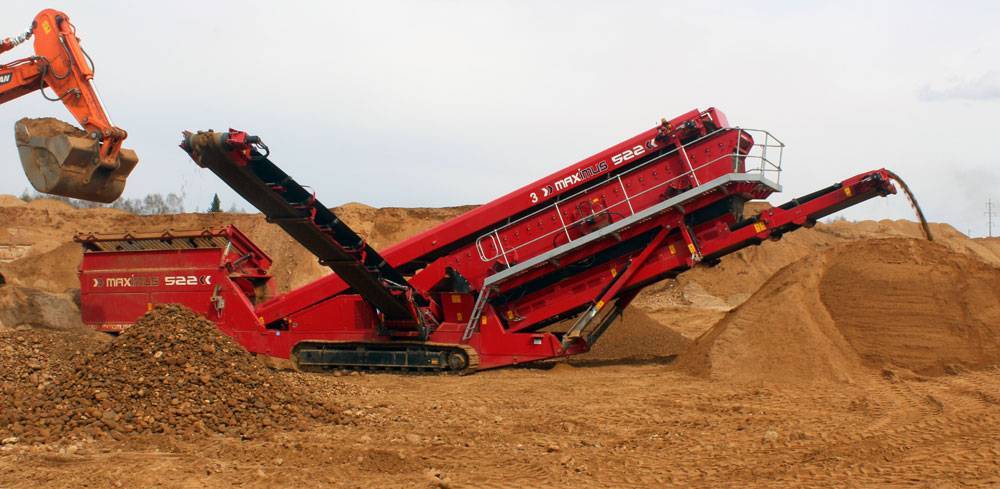

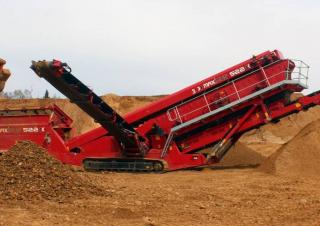

Maximus 522 screener specs & technical data (2017 - 2023)
Weight: 34t – Transport length: 18.8m – Transport width: 3m – Transport height: 3.4m – Type of screen: MS – Plant type: RM... Read more
Weight: 34t – Transport length: 18.8m – Transport width: 3m – Transport height: 3.4m – Type of screen: MS – Plant type: RM
Check out detailed specifications, information and technical data for Maximus 522 screener manufactured between 2017 - 2023. Get more in-depth insight with Maximus 522 screening machine. See information, like: Weight: 34t – Transport length: 18.8m – Transport width: 3m – Transport height: 3.4m – Type of screen: MS – Plant type: RM and more.
Technical specs - 522 Maximus
Specification
Notice: Every data listed is verified by LECTURA Specs team experts. However, incomplete data and mistakes might occur.Contact our team with any change suggestion.
- Weight 34 t
- Transport length 18.8 m
- Transport width 3 m
- Transport height 3.4 m
- Type of screen MS
- Plant type RM
- Screen width 1.5 m
- Screen length 6.7 m
- Drive power 96 kW
- Maximum Number of screens 2
- Hopper capacity 9.2 m³
- Main conveyor width 1200 mm
- Side conveyor width 800 mm
More technical details, like: drive, model series are available in the full technical specs.
Type of plant: KU = skid unit, PB = impeller breaker , RM = mobile track, RA = mobile wheeled, CO = with container
