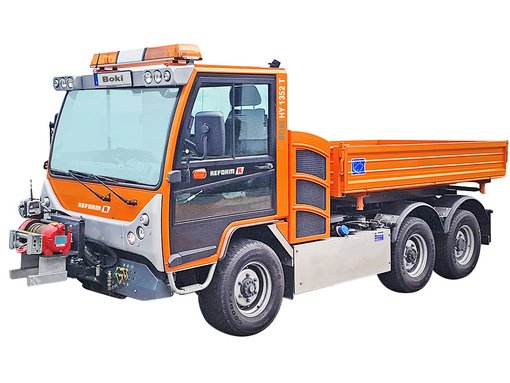

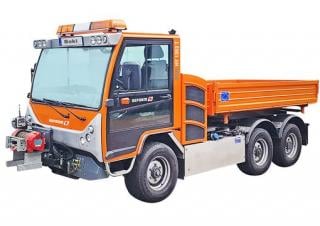

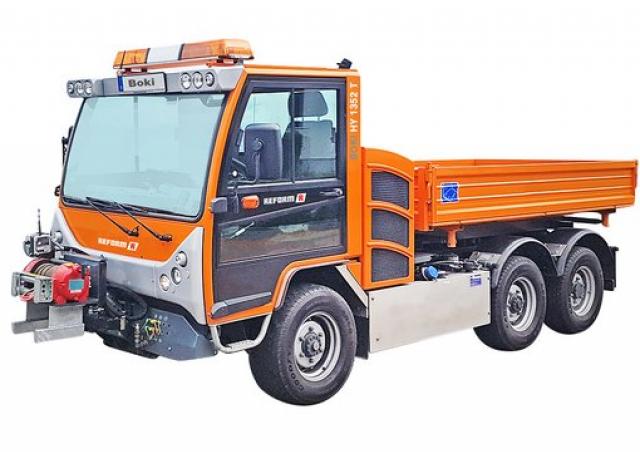

Reform Werke Boki HY 1252 B Specifications & Technical Data (2021-2022)
Weight without attachment: 3t – Transport length: 4.56m – Transport width: 1.7m – Transport height: 2.16m – Bridge length: 1.58m – Bridge width: 1.7m
Technical specs - Boki HY 1252 B Reform Werke
Specification
Notice: Every data listed is verified by LECTURA Specs team experts. However, incomplete data and mistakes might occur.Contact our team with any change suggestion.
- Weight without attachment 3 t
- Transport length 4.56 m
- Transport width 1.7 m
- Transport height 2.16 m
- Bridge length 1.58 m
- Bridge width 1.7 m
- Standard tyres 205 R16
- Attachment H/M/F
- Travel speed 60 km/h
- Steering mode AL/FL
- Engine manuf. VM
- Engine type R754
- Engine power 84 kW
- Displacement 2.97 l
- Revolutions at max torque 3000 rpm
- Max. torque 420/1100 Nm
- No. of cylinders 4
- Emission level Euro VIc
-
Transmission
### -
Dimension lxwxh
### -
Cylinder bore x stroke
### -
Weight
###
Basic model with cabin, platform (standard dimensions), front wheel steering and normal tyres
Special equipment
- Cabin
- Front hydraulics
- All-wheel drive
- Codriver seat
- Rear hydraulic
- Frontblade
- Narrow-gauge
- Load tippable
- Power take-off
