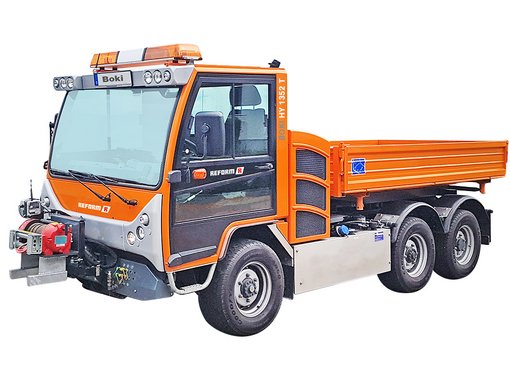

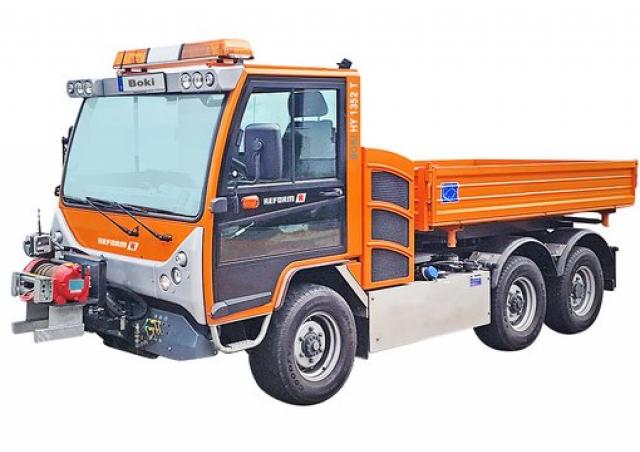

    Reform Werke Boki HY 1252 Specifications & Technical Data (2021-2023)

    Rate this machine now!

    Weight without attachment: 2.9t – Transport length: 4.36m – Transport width: 1.3m – Transport height: 2.16m – Bridge length: 1.58m – Bridge width: 1.3m

    Technical specs - Boki HY 1252 Reform Werke


    Notice: Every data listed is verified by LECTURA Specs team experts. However, incomplete data and mistakes might occur.Contact our team with any change suggestion.

    • Weight without attachment 2.9 t
    • Transport length 4.36 m
    • Transport width 1.3 m
    • Transport height 2.16 m
    • Bridge length 1.58 m
    • Bridge width 1.3 m
    • Standard tyres 225/75 R16
    • Attachment H/M/F
    • Travel speed 60 km/h
    • Transmission stfl.
    • Steering mode AL/FL
    • Engine manuf. VM
    • Engine type R 754
    • Engine power 84 kW
    • Displacement 2.97 l
    • Revolutions at max torque 3000 rpm
    • Max. torque 420 Nm
    • No. of cylinders 4
    • Emission level V

    More technical details, like: dimension lxwxh, cylinder bore x stroke, weight are available in the full technical specs.

    Basic model with cabin, platform (standard dimensions), front wheel steering and normal tyres

    Special equipment

    • Cabin
    • Front hydraulics
    • All-wheel drive
    • Codriver seat
    • Rear hydraulic
    • Frontblade
    • Narrow-gauge
    • Load tippable
    • Power take-off
