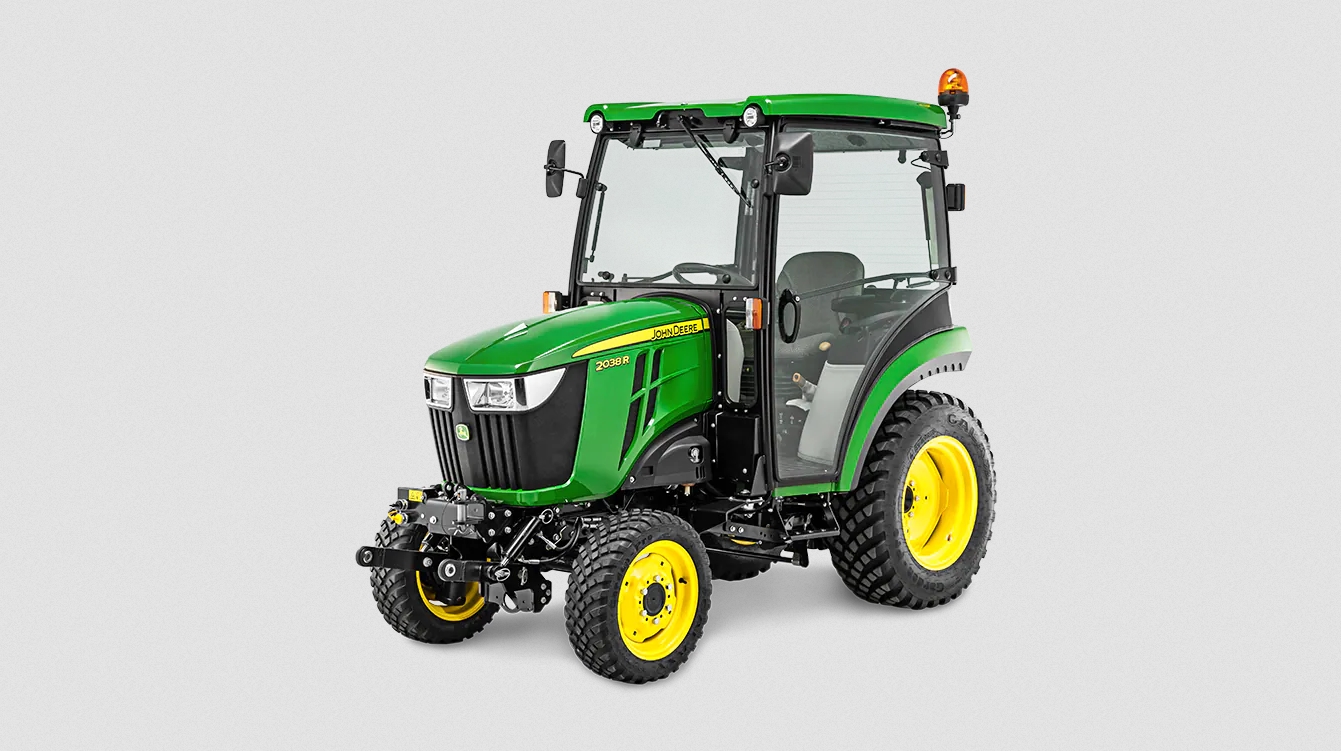

John Deere 2038 R Specifications & Technical Data (2016-2023)

Rate this machine now!

Weight without attachment: 1.325t – Travel speed : 22km/h – Transport length: 2.982m – Transport width: 1.52m – Transport height: 2.369m – Standard tyres: VR 7.00-12 HR 12.4-16

Technical specs - 2038 R John Deere

Specification

Notice: Every data listed is verified by LECTURA Specs team experts. However, incomplete data and mistakes might occur.Contact our team with any change suggestion.

  • Weight without attachment 1.325 t
  • Travel speed 22 km/h
  • Transport length 2.982 m
  • Transport width 1.52 m
  • Transport height 2.369 m
  • Standard tyres VR 7.00-12 HR 12.4-16
  • Attachment H/F
  • Steering mode FL
  • Model series 2000
  • Engine manuf. John Deere
  • Engine type k.A.
  • Engine power 27.4 kW
  • Displacement 1.568 l
  • Revolutions at max torque 2500 rpm
  • No. of cylinders 3

More technical details, like: average fuel consumption, fuel consumption range (min - max), bridge length, bridge width, transmission, dimension lxwxh, max. torque, cylinder bore x stroke, weight, emission level are available in the full technical specs.

Basic model with cabin, platform (standard dimensions), front wheel steering and normal tyres

Special equipment

  • Cabin
  • Front hydraulics
  • All-wheel drive
  • Codriver seat
  • Rear hydraulic
  • Frontblade
  • Narrow-gauge
  • Load tippable
  • Power take-off
