Kubota

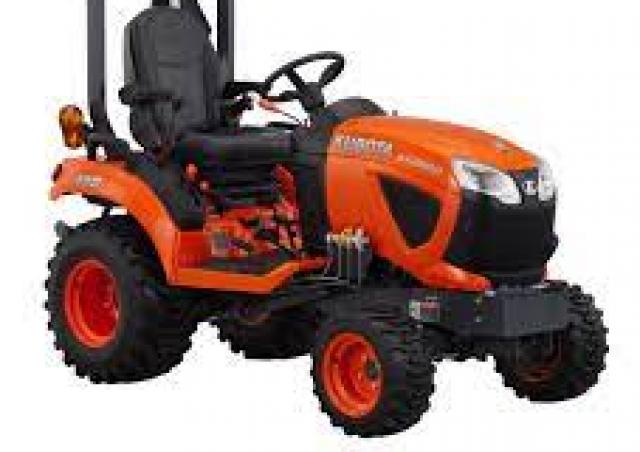

Kubota BX2380 Specifications & Technical Data (2017-2022)

Weight without attachment: 0.654t – Travel speed: 13.5km/h – Back tyres: 26x12-12 – Front tyres: 18x8.5-10 – Transport length: 2.42m – Transport width: 1.14m

Vehicles Compact Utility Tractors Kubota BX2380

Technical specs - BX2380 Kubota

Specification

Notice: Every data listed is verified by LECTURA Specs team experts. However, incomplete data and mistakes might occur. Contact our team with any change suggestion.

Weight without attachment
0.654 t
Travel speed
13.5 km/h
Back tyres
26x12-12
Front tyres
18x8.5-10
Transport length
2.42 m
Transport width
1.14 m
Transport height
2.11 m
Model series
BX
Engine manuf.
Kubota
Engine type
D902
Engine power
17.2 kW
Displacement
0.9 l
Revolutions at max torque
3200 rpm
No. of cylinders
3
Cylinder bore x stroke
72 x 74 mm
Emission level
Tier IV

More technical details, like: bridge length, bridge width, transmission, steering mode, attachment, dimension lxwxh, max. torque, weight are available in the full technical specs.

Special equipment

Cabin
No
Front hydraulics
No
Front PTO
No
All-wheel drive
No
Codriver seat
No
Rear hydraulic
No
Frontblade
Yes
Load tippable
No
Rear PTO
Yes
