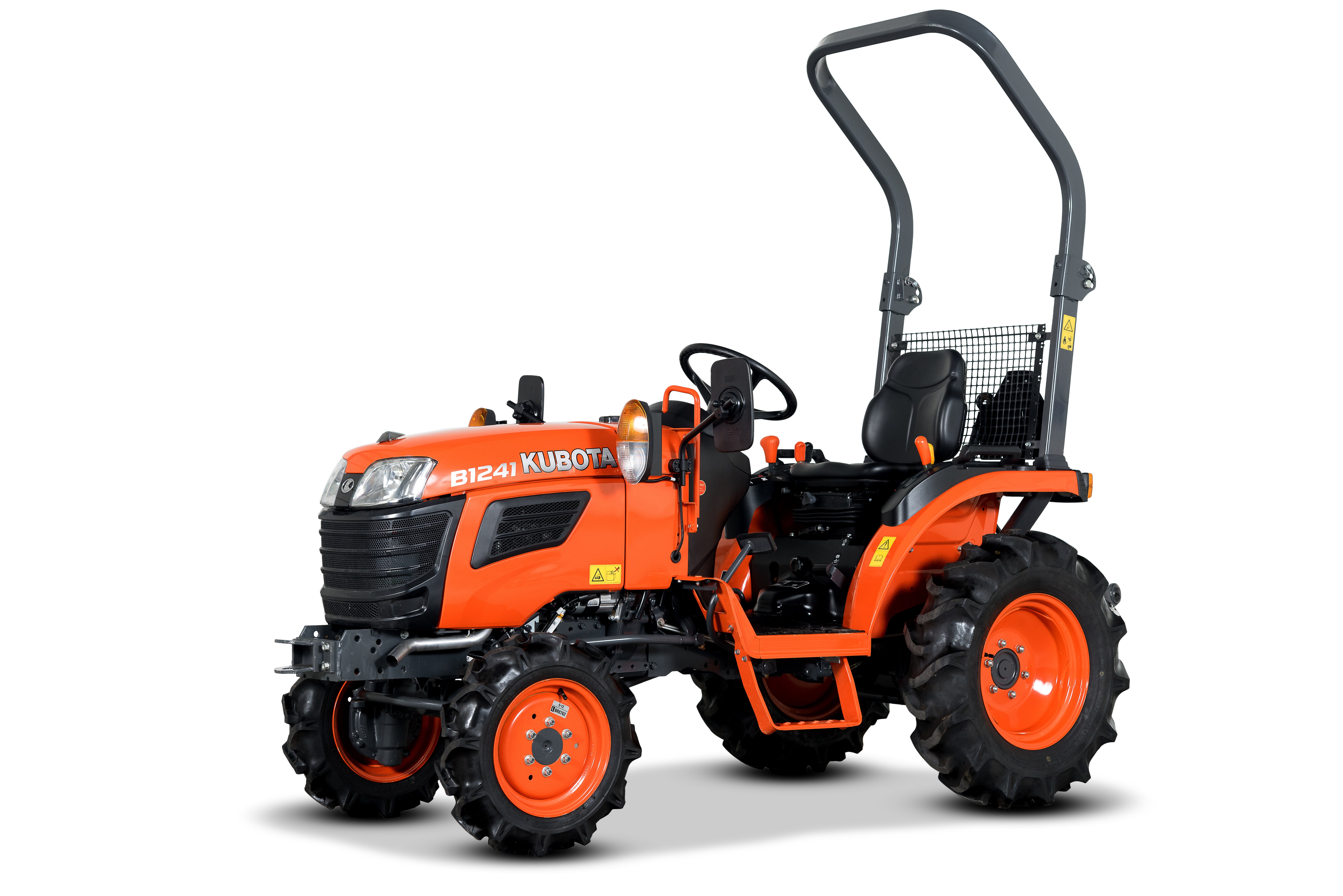

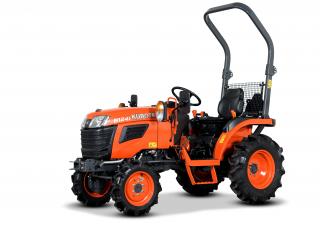

Kubota B1241 DT Specifications & Technical Data (2017-2025)

Name: Kubota B1241 DT Compact Utility Tractors
Brand: Kubota

Weight without attachment: 0.761t – Travel speed: 20km/h – Back tyres: 280/70 R 20 – Front tyres: 23x10.50-14 – Transport length: 2.82m – Transport width: 1.15m

Vehicles Compact Utility Tractors Kubota B1241 DT

B1241 DT

Years of manufacture: 2017—2025

Data sheet
Buy & Rent
Spare parts
Transport
Events & News

Technical specs - B1241 DT Kubota

Specification

Notice: Every data listed is verified by LECTURA Specs team experts. However, incomplete data and mistakes might occur. Contact our team with any change suggestion.

Weight without attachment: 0.761 t

Travel speed: 20 km/h

Back tyres: 280/70 R 20

Front tyres: 23x10.50-14

Transport length: 2.82 m

Transport width: 1.15 m

Transport height: 2.45 m

Transmission: 9/9

Attachment: H/F

Model series: B

Engine manuf.: Kubota

Engine type: D1105

Engine power: 16 kW

Displacement: 1.123 l

No. of cylinders: 3

Emission level: V

More technical details, like: bridge length, bridge width, steering mode, dimension lxwxh, revolutions at max torque, max. torque, cylinder bore x stroke, weight are available in the full technical specs.

Special equipment

Cabin: No
Front hydraulics: Yes
Front PTO: Yes
All-wheel drive: Yes
Codriver seat: No
Rear hydraulic: Yes
Frontblade: No
Load tippable: No
Rear PTO: Yes
