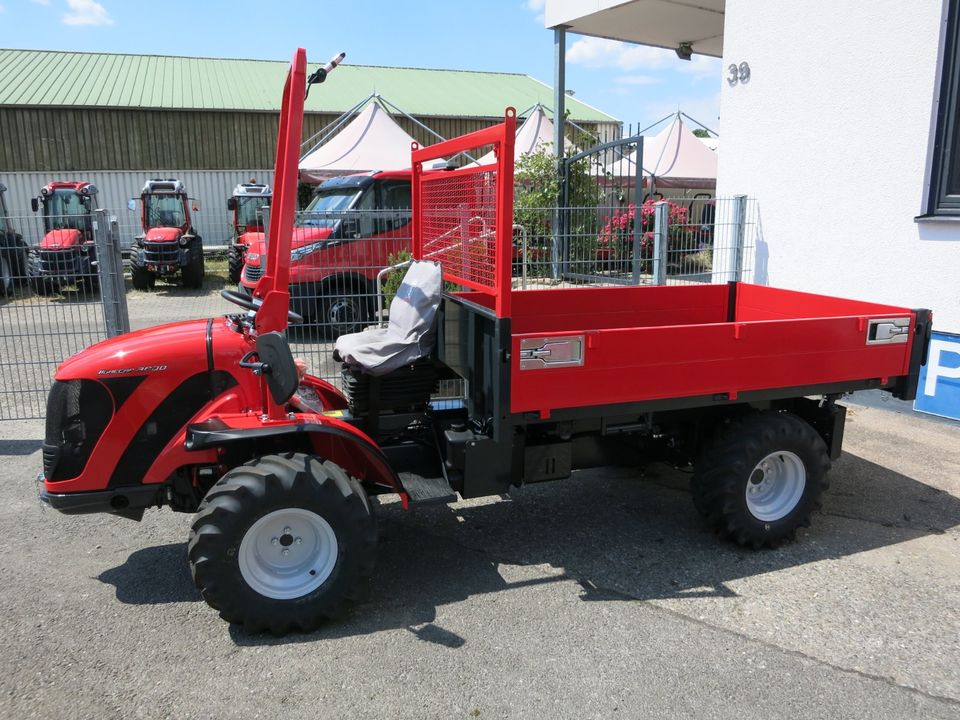

Carraro Tigrecar 3800 Specifications & Technical Data (2022-2023)

Rate this machine now!

Weight without attachment: 1.38t – Bridge length: 2.2m – Bridge width: 1.4m – Back tyres: 8.0/75-15 6PR – Front tyres: 8.0/75-15 6PR – Transport length: 4.66m

Technical specs - Tigrecar 3800 Carraro


Notice: Every data listed is verified by LECTURA Specs team experts. However, incomplete data and mistakes might occur.Contact our team with any change suggestion.

  • Weight without attachment 1.38 t
  • Bridge length 2.2 m
  • Bridge width 1.4 m
  • Back tyres 8.0/75-15 6PR
  • Front tyres 8.0/75-15 6PR
  • Transport length 4.66 m
  • Transport width 1.5 m
  • Transport height 1.99 m
  • Transmission 8/4
  • Steering mode F
  • Attachment H
  • Model series Tigrecar
  • Engine manuf. Yanmar
  • Engine type k.A.
  • Engine power 18.9 kW
  • Displacement 1.331 l
  • Revolutions at max torque 2800 rpm
  • Max. torque 86,8/1200 Nm
  • No. of cylinders 3
  • Emission level V

More technical details, like: travel speed , average fuel consumption, fuel consumption range (min - max), dimension lxwxh, cylinder bore x stroke, weight are available in the full technical specs.

Special equipment

  • Cabin
  • Front hydraulics
  • Front PTO
  • All-wheel drive
  • Codriver seat
  • Rear hydraulic
  • Frontblade
  • Load tippable
  • Rear PTO
