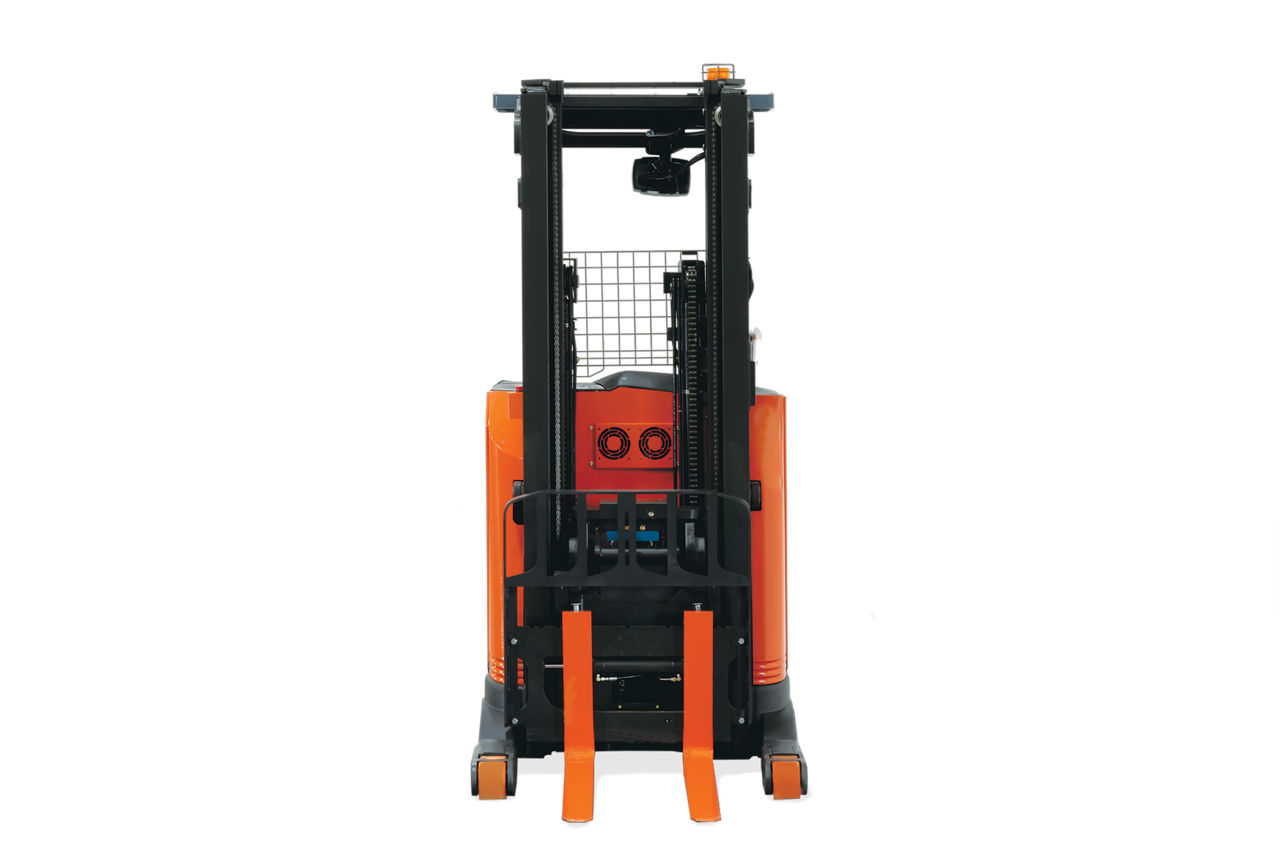

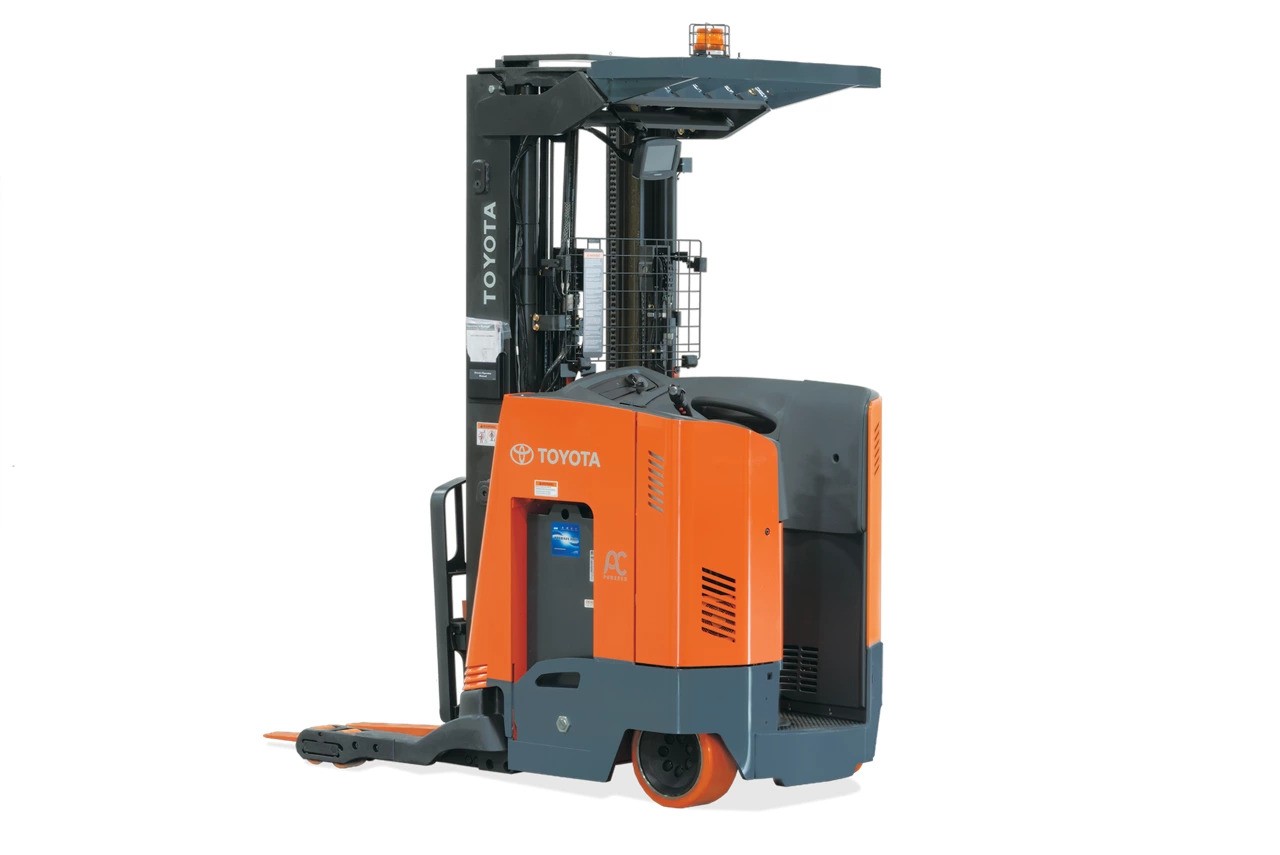

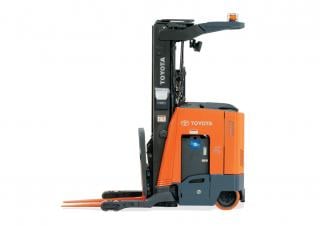

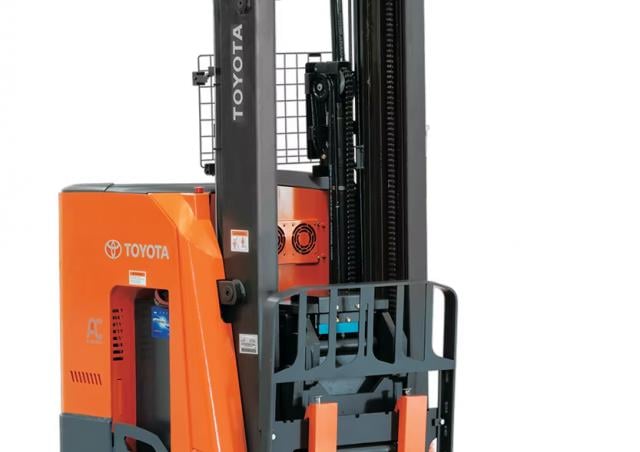

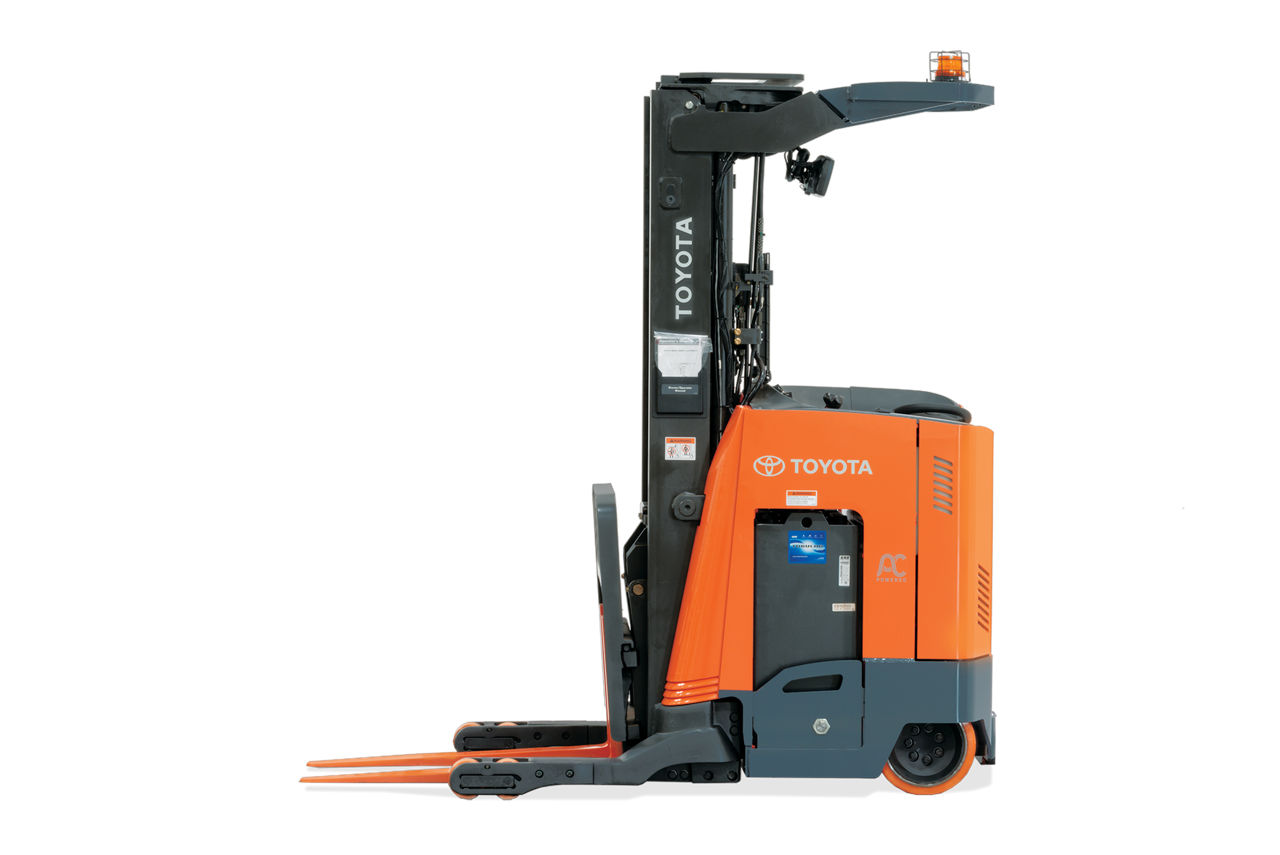

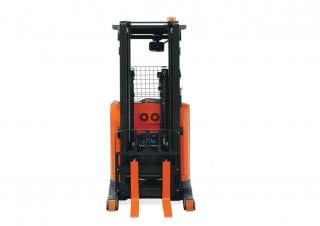

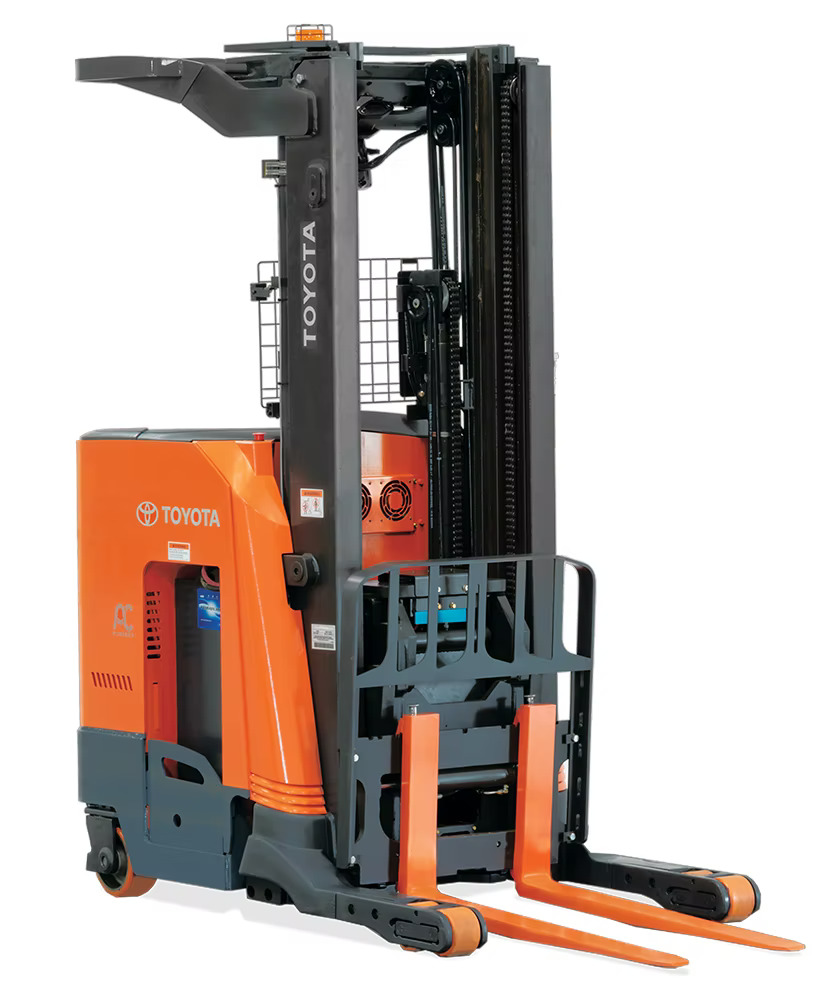

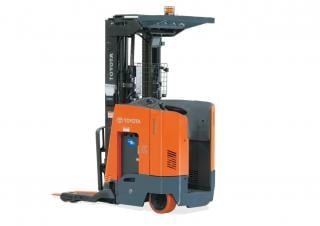

Toyota RF1-BE1X35 reach truck specs (2024 - 2024)

Nominal load at COG: 1.58t – Total width: 1080mm – Standard tyres: 1x/1/4 – Centre of gravity: 600mm – Voltage: 24V – Traction mot…

Nominal load at COG: 1.58t – Total width: 1080mm – Standard tyres: 1x/1/4 – Centre of gravity: 600mm – Voltage: 24V – Traction motor: 4.7kW

Reach truck RF1-BE1X35 manufactured by Toyota, production years (2024 - 2024). Explore detailed RF1-BE1X35 reach forklift specs: technical details, table charts and data sheets to download. Check also the other models produced by Toyota.

Reach Trucks Toyota RF1-BE1X35
Reach Trucks Toyota RF1-BE1X35
Reach Trucks Toyota RF1-BE1X35
Reach Trucks Toyota RF1-BE1X35
Reach Trucks Toyota RF1-BE1X35
Reach Trucks Toyota RF1-BE1X35
Reach Trucks Toyota RF1-BE1X35
Reach Trucks Toyota RF1-BE1X35

Technical specs - RF1-BE1X35 Toyota

Specification

Notice: Every data listed is verified by LECTURA Specs team experts. However, incomplete data and mistakes might occur. Contact our team with any change suggestion.

Nominal load at COG
1.58 t
Total width
1080 mm
Standard tyres
1x/1/4
Centre of gravity
600 mm
Voltage
24 V
Traction motor
4.7 kW
Hoist motor
10.5 kW
Weight
2.585 t
Battery weight
1.043 t
Lifting height
6.858 m
Turning radius
1.849 m
Travel speed with / without load
8.9/10.5 km/h
Hoisting with / without load
0.2/0.3 m/s
Lowering with load
0.559 m/s
Model series
RF

More technical details, like: construction height, drive system are available in the full technical specs.

L = pneumatic tyres, x = drive, SE = superelastic, P = PUR (Elastollan, Vulkollan), V = solid rubber, ND = low-pressure tyres, 3 = three-wheel, 4 = four-wheel, 6 = six-wheel All specifications and prices refer to basic models with standard fork carrier, 2 standard prongs without additional hydraulics, battery, charger. With Triplex mast (5,2m) and side shifting device.
