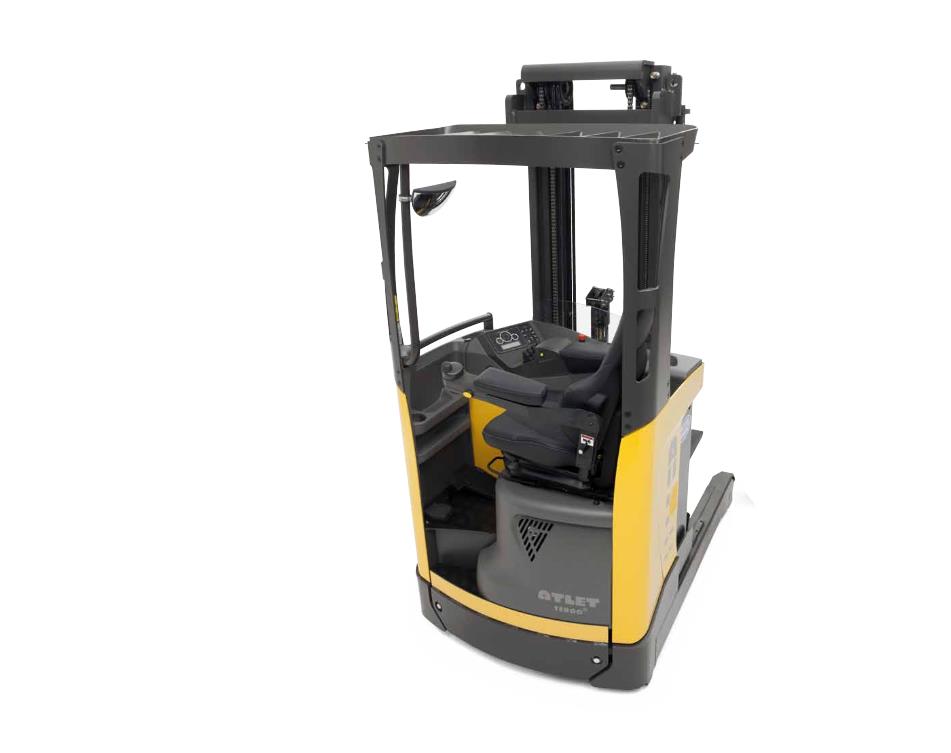

Atlet ULS 120-140 reach truck specs (2011 - 2012)

Rate this machine now!

Nominal load at COG: 1.4t – Total width: 2674mm – Standard tyres: 2V/1xV – Centre of gravity: 600mm – Voltage: 48V – Traction moto... Read more

Nominal load at COG: 1.4t – Total width: 2674mm – Standard tyres: 2V/1xV – Centre of gravity: 600mm – Voltage: 48V – Traction motor: 5.9kW

Reach truck ULS 120-140 manufactured by Atlet, production years (2011 - 2012). Explore detailed ULS 120-140 reach forklift specs: technical details, table charts and data sheets to download. Check also the other models produced by Atlet.

Technical specs - ULS 120-140 Atlet

Specification

Notice: Every data listed is verified by LECTURA Specs team experts. However, incomplete data and mistakes might occur.Contact our team with any change suggestion.

  • Nominal load at COG 1.4 t
  • Total width 2674 mm
  • Standard tyres 2V/1xV
  • Centre of gravity 600 mm
  • Voltage 48 V
  • Traction motor 5.9 kW
  • Hoist motor 11 kW
  • Weight 2.8 t
  • Battery weight 0.75 t
  • Lifting height 7.25 m
  • Turning radius 1.593 m
  • Travel speed with / without load 14.5 km/h
  • Hoisting with / without load 0.49/0.65 m/s
  • Model series ULS

More technical details, like: construction height, drive system, lowering with load are available in the full technical specs.

L = pneumatic tyres, x = drive, SE = superelastic, P = PUR (Elastollan, Vulkollan), V = solid rubber, ND = low-pressure tyres, 3 = three-wheel, 4 = four-wheel, 6 = six-wheel All specifications and prices refer to basic models with standard fork carrier, 2 standard prongs without additional hydraulics, battery, charger. With Triplex mast (5,2m) and side shifting device.
