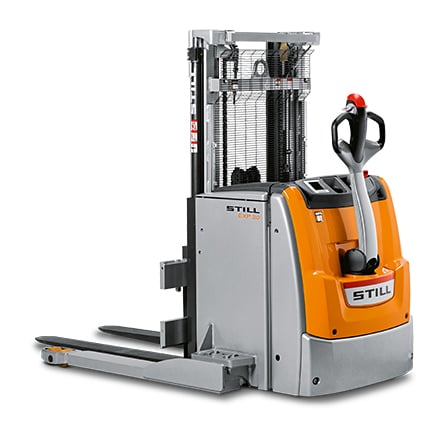

    Still EXP 20 Specifications & Technical Data (2017-2022)

    Rate this machine now!

    Nominal load at COG: 2t – Wheel base: 1.406m – Standard tyres: 1x+1/2 – Transport length: 2.107m – Transport width: 1.17m – Centre of gravity: 600mm

    Technical specs - EXP 20 Still

    Specification

    Notice: Every data listed is verified by LECTURA Specs team experts. However, incomplete data and mistakes might occur.Contact our team with any change suggestion.

    • Nominal load at COG 2 t
    • Wheel base 1.406 m
    • Standard tyres 1x+1/2
    • Transport length 2.107 m
    • Transport width 1.17 m
    • Centre of gravity 600 mm
    • Traction motor 2.3 kW
    • Hoist motor 3.2 kW
    • Battery capacity 24/345 V/Ah
    • Weight 1.605 t
    • Battery weight 0.288 t
    • Travel speed with / without load 6/6 km/h
    • Hoisting with / without load 0,15/0,3 m/s
    • Lowering with load 0,31/0,31 m/s
    • max. climbing ability 8/8 %
    • Turning radius 1.715 m

    More technical details, like: transport height, lifting height are available in the full technical specs.

    Special equipment

    • Double lift
    • Initial lift
    • Platform foldable
    • Scissor lift

    Carbon footprint calculator for Walkie Stackers

    See the ERA equipment CO2 Calculator to track the CO2 footprint per hour of use of the Still EXP 20 or alternative Walkie Stackers.

    The carbon footprint evaluation can be carried out using different fuel consumption scenarios or other variables.

    or visit the ERA Equipment CO2 Calculator to find out how to optimise your carbon footprint.

    service provided by ERA

    Buy & Rent

    Compare Still EXP 20 with similar Walkie Stackers

    Press 1 image

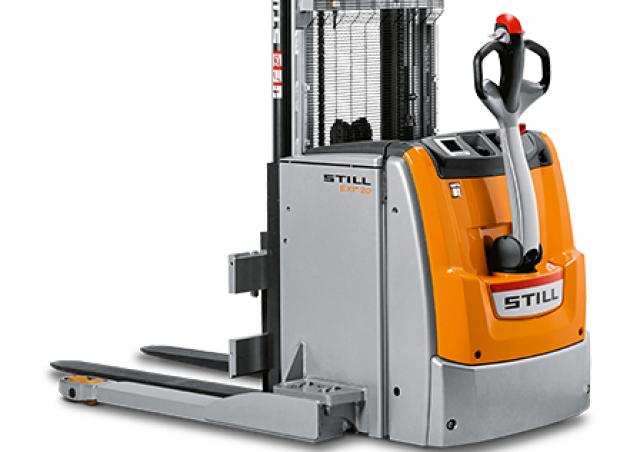

    Still EXP 20
