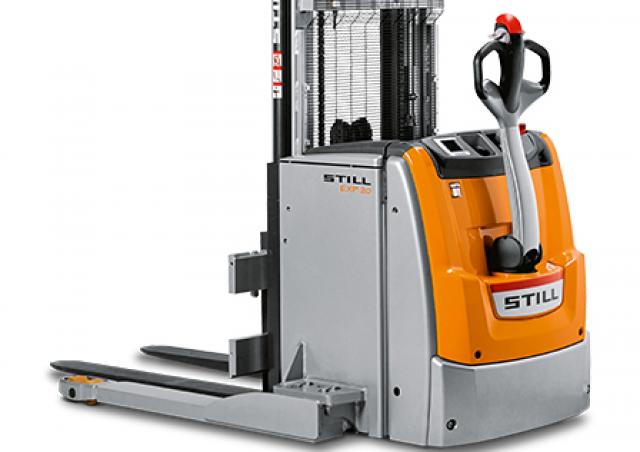

    Still EXP 16 Specifications & Technical Data (2017-2022)

    Rate this machine now!

    Nominal load at COG: 1.6t – Wheel base: 1.406m – Standard tyres: 1x+1/2 – Transport length: 2.081m – Transport width: 1.17m – Centre of gravity: 600mm

    Technical specs - EXP 16 Still

    Specification

    Notice: Every data listed is verified by LECTURA Specs team experts. However, incomplete data and mistakes might occur.Contact our team with any change suggestion.

    • Nominal load at COG 1.6 t
    • Wheel base 1.406 m
    • Standard tyres 1x+1/2
    • Transport length 2.081 m
    • Transport width 1.17 m
    • Centre of gravity 600 mm
    • Traction motor 2.3 kW
    • Hoist motor 3.2 kW
    • Battery capacity 24/345 V/Ah
    • Weight 1.556 t
    • Battery weight 0.288 t
    • Travel speed with / without load 6/6 km/h
    • Hoisting with / without load 0,15/0,3 m/s
    • Lowering with load 0,4/0,35 m/s
    • max. climbing ability 8/8 %
    • Turning radius 1.715 m

    More technical details, like: transport height, lifting height are available in the full technical specs.

    Special equipment

    • Double lift
    • Initial lift
    • Platform foldable
    • Scissor lift
