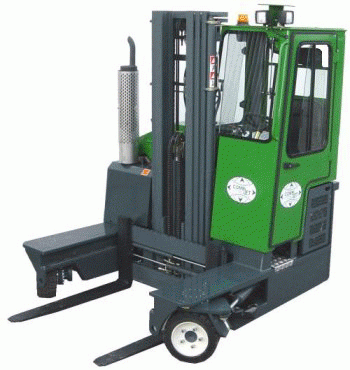

    Combi-Lift C 3000 ST Specifications & Technical Data (2005-2021)

    Rate this machine now!

    Nominal load at COG: 3t – Standard tyres: 23x10-12 – Centre of gravity: 600mm – Transmission type: HY – Weight: 5.7t – Total width: 1950mm

    Technical specs - C 3000 ST Combi-Lift


    Notice: Every data listed is verified by LECTURA Specs team experts. However, incomplete data and mistakes might occur.Contact our team with any change suggestion.

    • Nominal load at COG 3 t
    • Standard tyres 23x10-12
    • Centre of gravity 600 mm
    • Transmission type HY
    • Weight 5.7 t
    • Total width 1950 mm
    • Construction height 2660 mm
    • Lifting height 4.04 m
    • Travel speed with / without load 10 km/h
    • Turning radius 2.12 m
    • max. climbing ability 10 %
    • Engine manuf. Kubota
    • Engine type V1505
    • Engine power 32 kW

    More technical details, like: hoisting with / without load, lowering with load, dimension lxwxh, displacement, revolutions at max torque, max. torque, no. of cylinders, cylinder bore x stroke, emission level are available in the full technical specs.

    All specifications and prices refer to basic models with standard fork carriage and 2 standard prongs without additional hydraulics. With duplex mast (3,3m up to 10t • 5m > 10t load capacity) L = pneumatic tyres, x = drive, SE = superelastic, P = PUR (Elastollan, Vulkollan), V = solid rubber, ND = low pressure tyres, 3 = three-wheel, 4 = four-wheel, 6 = six-wheel
