Toyota 8FGC55U
- Nominal load at COG:
- 5.5 t
- Standard tyres:
- 22 x 12 x 16/18 x 8 x 12-1 / 8
- Weight:
- 7.5 t
- Total width:
- 1420 mm
.png)

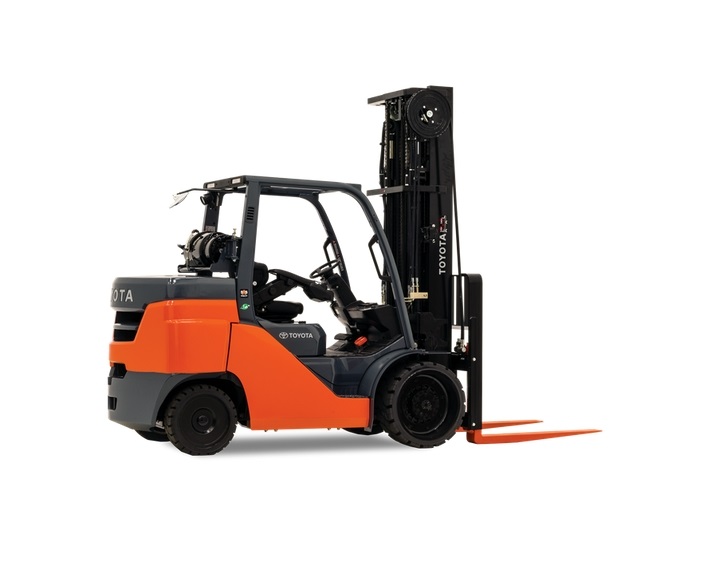

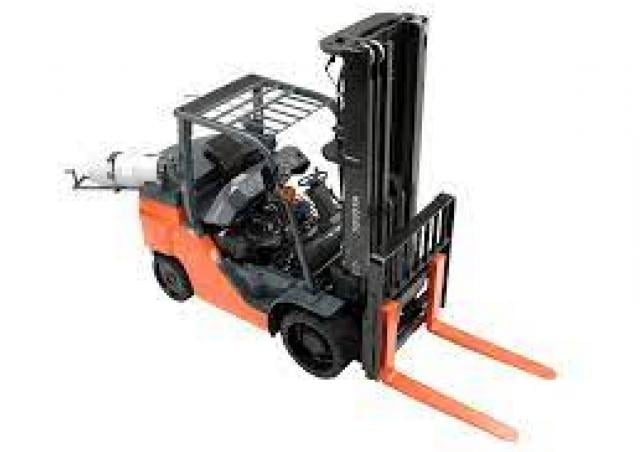

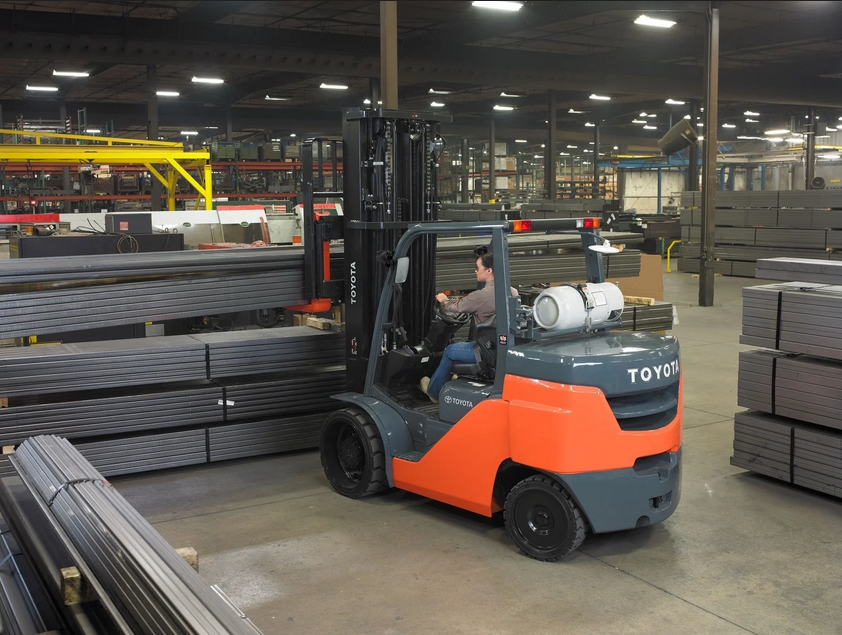

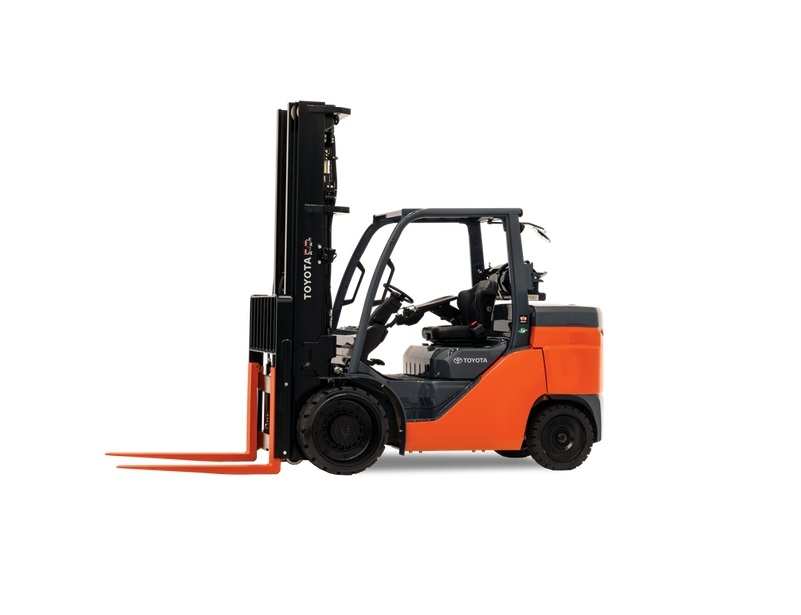

Toyota 8FGC55U LPG forklift specs & dimensions (2022 - 2025)
.jpg)
.jpg)
.jpg)
.jpg)
.jpg)
.jpg)
Technical specs - 8FGC55U Toyota
Specification
Notice: Every data listed is verified by LECTURA Specs team experts. However, incomplete data and mistakes might occur. Contact our team with any change suggestion.
- Nominal load at COG
- 5.5 t
- Standard tyres
- 22 x 12 x 16/18 x 8 x 12-1 / 8
- Weight
- 7.5 t
- Total width
- 1420 mm
- Construction height
- 2120 mm
- Turning radius
- 2.53 m
- Lifting height
- 4.05 m
- Travel speed with / without load
- 21/21 km/h
- Hoisting with / without load
- 0.46/0.48 m/s
- Lowering with load
- 0.54 m/s
- max. climbing ability
- 34 %
- Model series
- FGC
- Engine manuf.
- Toyota
- Engine type
- 1FS
- Engine power
- 66 kW
- Displacement
- 3.685 l
- Revolutions at max torque
- 1400 rpm
- Max. torque
- 290 Nm
- No. of cylinders
- 4
More technical details, like: centre of gravity, transmission type, dimension lxwxh, cylinder bore x stroke, emission level are available in the full technical specs.
L = pneumatic tyres, x = drive, SE = superelastic, P = PUR (Elastollan, Vulkollan), V = solid rubber, ND = low pressure tyres, 3 = three-wheel, 4 = four-wheel, 6 = six-wheel All specifications and prices refer to basic models with standard fork carrier, 2 standard prongs, without additional hydraulics with Simplex mast (3,3m up to 10t • 5m > 10t load capacity)
