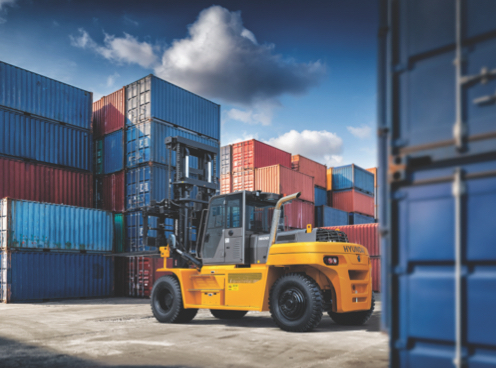

Hyundai 130D-9V diesel forklift specs (2023 - 2024)

Name: Hyundai 130D-9V Diesel Forklifts
Brand: Hyundai

The Hyundai 130D-9V is a diesel forklift manufactured since 2023. It has a weight of 17.105 tons and a nominal load at the center …

The Hyundai 130D-9V is a diesel forklift manufactured since 2023. It has a weight of 17.105 tons and a nominal load at the center of gravity of 13 tons. The lifting height reaches up to 3.305 meters, with a center of gravity at 600 mm. It has a maximum climbing ability of 40.5 percent. The hoisting speed, both with and without load, is 0 m/s, while the lowering speed with load is also 0 m/s. The total width of the forklift is 2450 mm, and it can travel at a speed of 32 km/h with or without load. The turning radius is 4.35 meters, and the construction height is 2955 mm.

Technical specs - 130D-9V Hyundai

Specification

Notice: Every data listed is verified by LECTURA Specs team experts. However, incomplete data and mistakes might occur. Contact our team with any change suggestion.

Nominal load at COG: 13 t

Centre of gravity: 600 mm

Standard tyres: P 4x2

Weight: 17.105 t

Total width: 2450 mm

Construction height: 2955 mm

Turning radius: 4.35 m

Lifting height: 3.305 m

Travel speed with / without load: 32.7/35.8 km/h

Hoisting with / without load: 0.48/0.5 m/s

Lowering with load: 0.55/0.5 m/s

max. climbing ability: 40.5 %

Engine manuf.: Cummins

Engine type: B4.5

Engine power: 123 kW

Displacement: 4.46 l

Revolutions at max torque: 2200 rpm

Max. torque: 77.9/1200 Nm

No. of cylinders: 4

Emission level: V

More technical details, like: transmission type, model series, dimension lxwxh, cylinder bore x stroke are available in the full technical specs.

L = pneumatic tyres, x = drive, SE = superelastic, P = PUR (Elastollan, Vulkollan), V = solid rubber, ND = low pressure tyres, 3 = three-wheel, 4 = four-wheel, 6 = six-wheel All specifications and prices refer to basic models with standard fork carrier, 2 standard prongs, without additional hydraulics with Simplex mast (3,3m up to 10t • 5m > 10t load capacity)

Carbon footprint calculator for Diesel Forklifts

Use the ERA equipment CO2 Calculator to estimate the CO2 emissions per hour of use of the Hyundai 130D-9V or alternative Diesel Forklifts.

The footprint evaluation can be carried out considering different energy consumption scenarios or other variables.

or visit the ERA Equipment CO2 Calculator to find out how to optimise your CO2 emissions.

service provided by

Download datasheets (PDF)

130D-9V Hyundai Specification for Europe (EN)
