Hangcha CPCD20-XH7B Okamura
- Nominal load at COG:
- 2 t
- Centre of gravity:
- 500 mm
- Standard tyres:
- 7.00-12/6.00-9
- Weight:
- 3.405 t

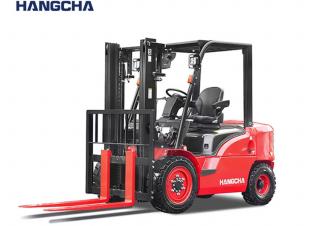

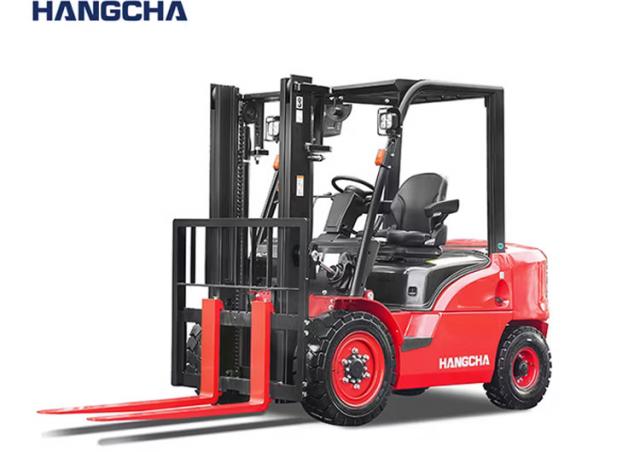

Hangcha CPCD20-XH7B Okamura diesel forklift specs & dimensions (2020 - 2025)
Technical specs - CPCD20-XH7B Okamura Hangcha
Specification
Notice: Every data listed is verified by LECTURA Specs team experts. However, incomplete data and mistakes might occur. Contact our team with any change suggestion.
- Nominal load at COG
- 2 t
- Centre of gravity
- 500 mm
- Standard tyres
- 7.00-12/6.00-9
- Weight
- 3.405 t
- Total width
- 1155 mm
- Construction height
- 2135 mm
- Turning radius
- 2.18 m
- Lifting height
- 3 m
- Travel speed with / without load
- 18.5 km/h
- Hoisting with / without load
- 0.6 m/s
- Lowering with load
- 0.5 m/s
- max. climbing ability
- 27 %
- Model series
- XF
- Engine manuf.
- Xinchai
- Engine type
- 3E22YG51
- Engine power
- 44.8 kW
- Displacement
- 2.227 l
- Revolutions at max torque
- 2400 rpm
- Max. torque
- 210/1600-1800 Nm
- No. of cylinders
- 3
- Cylinder bore x stroke
- 94x107 mm
- Emission level
- V
More technical details, like: transmission type, dimension lxwxh are available in the full technical specs.
L = pneumatic tyres, x = drive, SE = superelastic, P = PUR (Elastollan, Vulkollan), V = solid rubber, ND = low pressure tyres, 3 = three-wheel, 4 = four-wheel, 6 = six-wheel All specifications and prices refer to basic models with standard fork carrier, 2 standard prongs, without additional hydraulics with Simplex mast (3,3m up to 10t • 5m > 10t load capacity)
