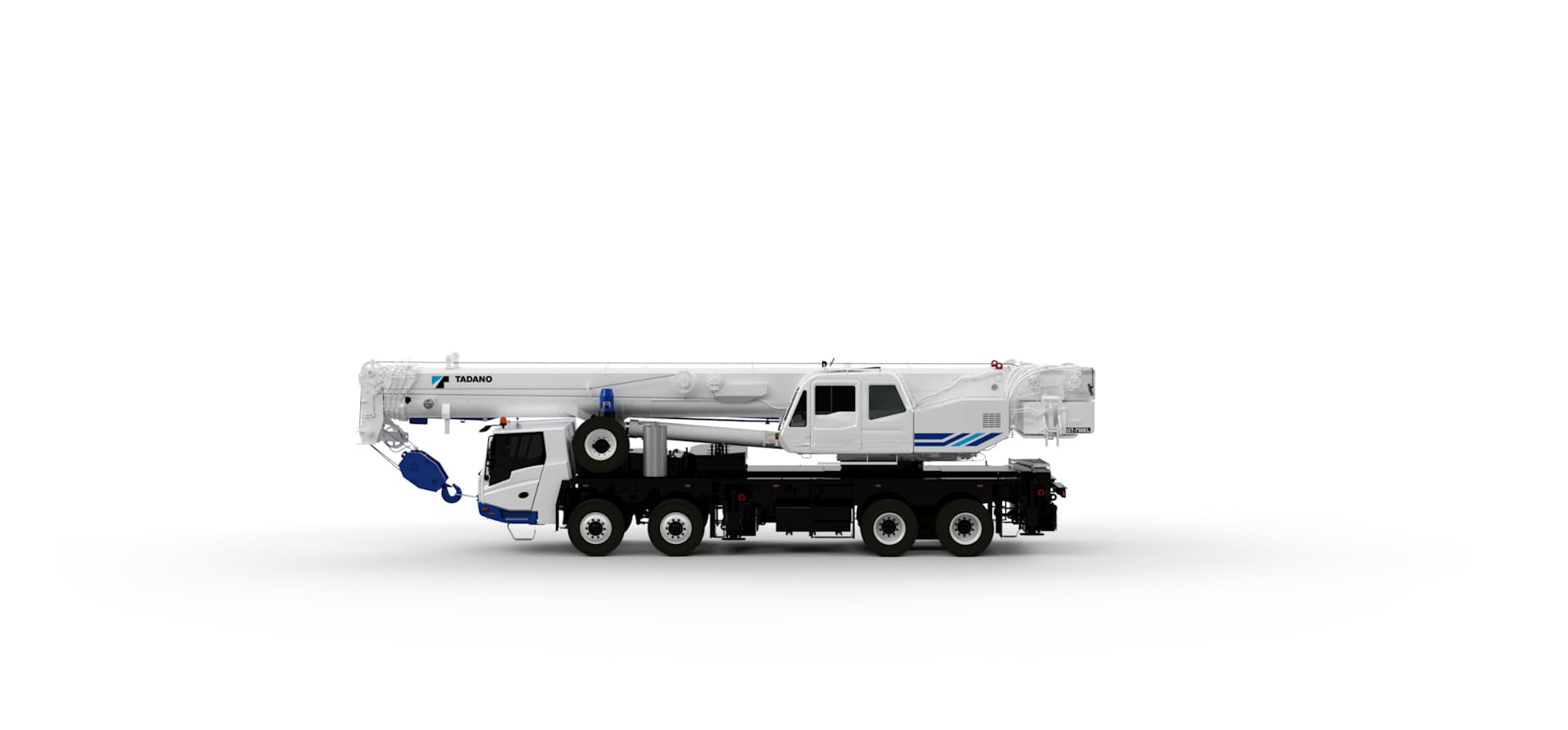

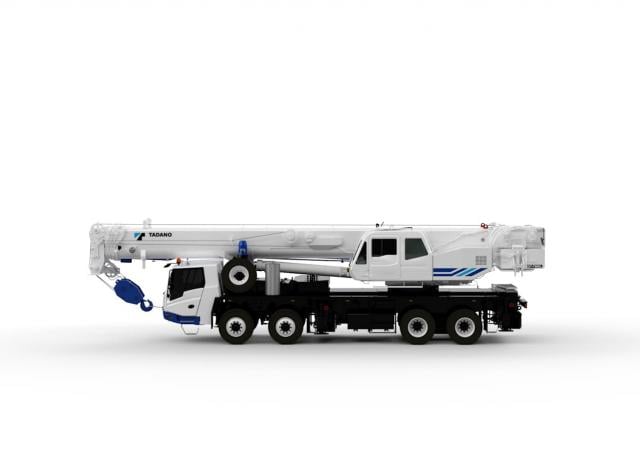

Tadano GT-750EL-3 crane - load chart, specs & dimensions (2023 - 2025)
Technical specs - GT-750EL-3 Tadano
Specification
Notice: Every data listed is verified by LECTURA Specs team experts. However, incomplete data and mistakes might occur. Contact our team with any change suggestion.
- max. carrying capacity
- 75 t
- at reach
- 2.7 m
- Carrying capacity
- 0.6 t
- at max. reach
- 40 m
- max. standard boom
- 47 m
- Max. luffing jib
- 14.3 m
- Undercarriage engine
- 260 kW
- Travel speed
- 85 km/h
- Number of axles
- 4
- axle load
- 46.99 t
- Standard tyres
- 385/65R22.5
- Model series
- EL
- Engine manuf.
- Daimler
- Engine type
- OM457LA
- Engine power
- 260 kW
- Displacement
- 11.97 l
- Revolutions at max torque
- 1100 rpm
- Max. torque
- 1850 Nm
- No. of cylinders
- 6
- Cylinder bore x stroke
- 128x155 mm
- Emission level
- Euro 3
More technical details, like: max. hook height, load torque, superstructure engine, wheels/drive/steering, tipping load, dimension lxwxh, weight are available in the full technical specs.
Including hook block
Special equipment
- 2nd winch
-
No
- max. luffing jib
-
No
- Foucault current brake
-
No
- Add. ballast
-
No
- Aux. luff. boom
-
No
- Front axle block
-
No
