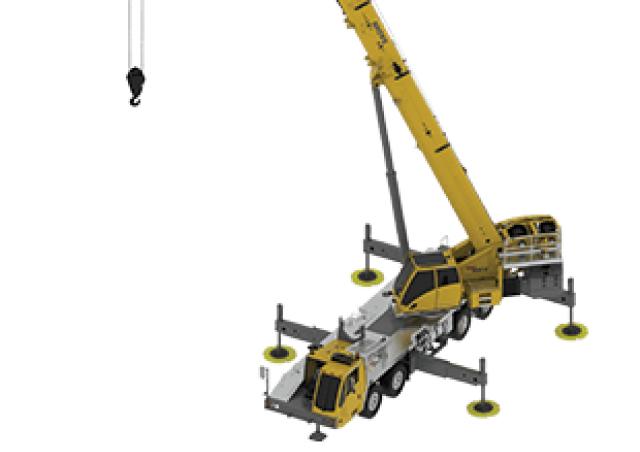

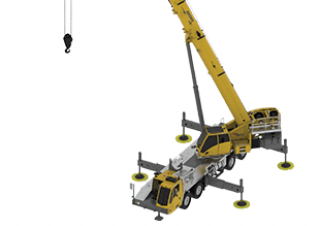

Grove TMS875-2 crane - load chart, specs & dimensions (2023 - 2025)
Technical specs - TMS875-2 Grove
Specification
Notice: Every data listed is verified by LECTURA Specs team experts. However, incomplete data and mistakes might occur. Contact our team with any change suggestion.
- max. carrying capacity
- 75 t
- at reach
- 2.44 m
- Carrying capacity
- 2.8 t
- at max. reach
- 36.58 m
- max. standard boom
- 39 m
- max. hook height
- 41.8 m
- Travel speed
- 105 km/h
- Number of axles
- 4
- Standard tyres
- F: 445/65R 22.5, R: 315/80R 22.5
- Model series
- TMS
- Engine manuf.
- Cummins
- Engine type
- X 12
- Engine power
- 354 kW
- Displacement
- 12 l
- Revolutions at max torque
- 1800 rpm
- Max. torque
- 2102 Nm
- No. of cylinders
- 6
More technical details, like: max. luffing jib, load torque, superstructure engine, undercarriage engine, wheels/drive/steering, axle load, tipping load, dimension lxwxh, cylinder bore x stroke, weight, emission level are available in the full technical specs.
Including hook block
Special equipment
- 2nd winch
-
No
- max. luffing jib
-
No
- Foucault current brake
-
No
- Add. ballast
-
No
- Aux. luff. boom
-
No
- Front axle block
-
No
