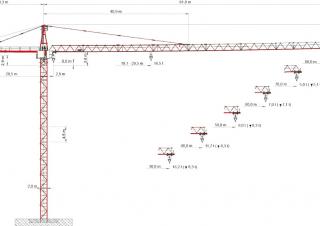

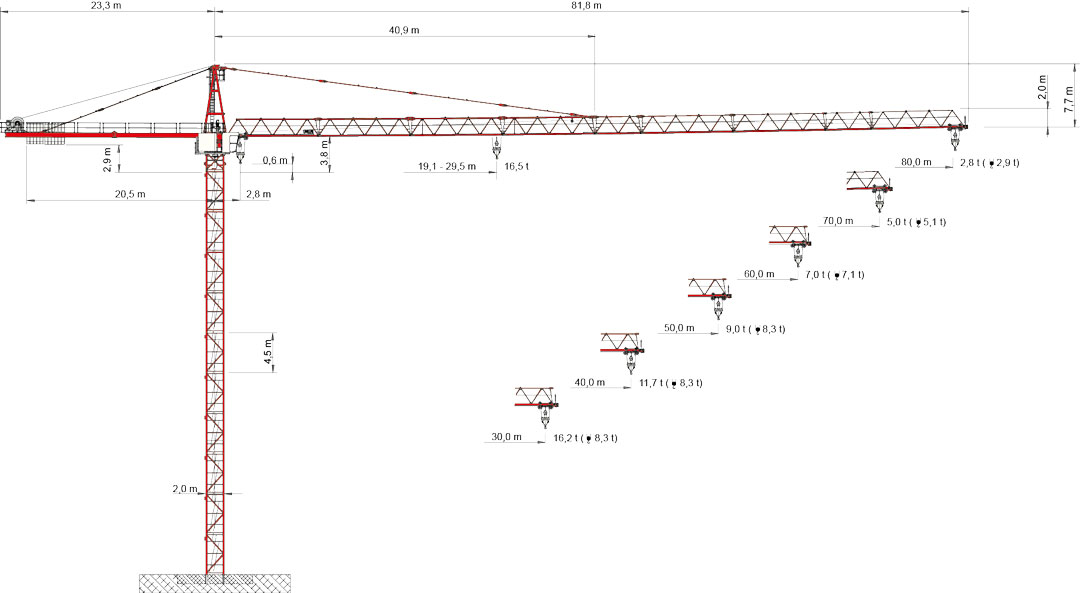

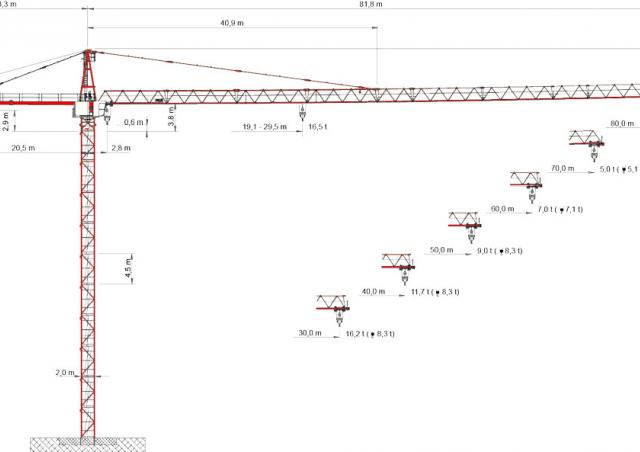

Wolffkran 8033.16 cross crane - load chart, specs (2011 - 2024)

Rate this machine now!

The 8033.16 cross tower crane - trolley boom - top-slewing model is manufactured by Wolff. Find and download detailed specs and da... Read more

The 8033.16 cross tower crane - trolley boom - top-slewing model is manufactured by Wolff. Find and download detailed specs and data sheets for this machine here.

This Wolff Tower crane - Trolley boom - top-slewing belongs to the biggest machine segment in the tower crane - trolley boom - top-slewing category. 50m is the maximum length of the standard boom for the 8033.16 cross crane. The model Wolff 8033.16 cross offers a maximum load capacity of 16.5t. The Wolff 8033.16 cross crane provides 29.5m reach while carrying the maximum load. The datasheet for 8033.16 cross indicates that this model can carry a 9t load at max. Reach. The nominal torque for this Wolff crane is calculated to be 4900. The load can be lifted by the hook to 60.1m height. The Wolff 8033.16 cross datasheet states the crane is equipped with a 75kW hoist unit.

The 8033.16 cross is manufactured and distributed with Add. Ballast and Cross girder. Climbing device, Undercarriage and Cabin are not provided on this model as of 2018. Find detailed specifications and machine details in the original Wolff 8033.16 cross datasheet. Available in French, English and German, LECTURA Specs offers a free download of highly detailed specifications and machine descriptions of this model.

This model can be acquired for a list price between €887,000 and €1,129,000. Production of the 8033.16 cross in 2018. The most recent model of this machine is priced between €887,000 and €1,129,000. Moreover this model is still being manufactured today.

This 8033.16 cross tower crane - trolley boom - top-slewing, which was produced between 2011 and 2018 ranks in the LECTURA index at #312. Want more detailed specifications? Download the latest Wolff 8033.16 cross specs data sheet on LECTURA Specs today!

Technical specs - 8033.16 cross Wolffkran

Specification

Notice: Every data listed is verified by LECTURA Specs team experts. However, incomplete data and mistakes might occur.Contact our team with any change suggestion.

  • Nominal torque 4900 kNm
  • Max. load 16.5 t
  • max. reach 50 m
  • Load at max. Reach 9 t
  • Reach at max. Load 29.5 m
  • max. standard boom 50 m
  • min. luffing jib 30 m
  • max. hook height 60.1 m
  • Ropes 4
  • max. hoisting speed 185 m/min
  • Tower system TV 20/23
  • Drive system 875 FU
  • Connection load 97 KVA
  • Hoist unit 75 kW
  • Model series cross

More technical details, like: max. luffing jib, tower height are available in the full technical specs.

If alignment change (2/4) is possible, the loads for quadruple alignment applies. In case of crane on anchor bolt, the anchor is not included in base price. Incl. concrete ballast, crane control and spindles with plates (latter not valid with rail-bound travelling, incl. cable drum and cruciform base)

Special equipment

  • Cabin
  • Add. ballast
  • Rail carrier
  • Climbing device
  • Undercarriage
  • Cross girder
