Lectura specs Cranes Tower Cranes - Trolley Boom - Top-slewing Tower Cranes - Trolley Boom - Top-slewing Wolffkran Wolffkran 6023.6 clear specifications

Wolffkran 6023.6 clear crane - load chart, specs (2008 - 2023)

Rate this machine now!

The 6023.6 clear tower crane - trolley boom - top-slewing model is manufactured by Wolff. Find and download detailed specs and dat... Read more

The 6023.6 clear tower crane - trolley boom - top-slewing model is manufactured by Wolff. Find and download detailed specs and data sheets for this machine here.

The 6023.6 clear is categorised in the medium sized machine segment in the tower crane - trolley boom - top-slewing category. The longest standard boom the Wolff 6023.6 clear can have is 30m. The 6023.6 clear Tower crane - Trolley boom - top-slewing has a maximum capacity of 6.2t. The Wolff 6023.6 clear crane provides 30m reach while carrying the maximum load. The 6023.6 clear is able to lift a load weighing 6.2t at its maximum reach. The nominal torque for this Wolff crane is calculated to be 2170. With this crane it is possible to reach a height of 69m with the hook. The Wolff 6023.6 clear datasheet states the crane is equipped with a 28kW hoist unit.

Since 2008, this model has included Cross girder and Add. Ballast. It does not include Cabin, Rail carrier and Climbing device. Find detailed specifications and machine details in the original Wolff 6023.6 clear datasheet. Specification sheet is available for a free download in English, German and French - providing the machine descriptions and more detailed specs about this particular model.

The newest version of this 6023.6 clear model is priced between €530,000 and €675,000, with the production of this model in 2018. The most recent model of this machine is priced between €530,000 and €675,000. Moreover this model is still being manufactured today.

The 6023.6 clear Wolff can be compared to several models from other manufacturers. The closest tower cranes - trolley boom - top-slewing based on specification and pricing are the Liebherr 224 EC-H (256 HC) GTS+6x4,14*, Liebherr 224 EC-H (256 HC) GTS+9x4,14** and Potain MDT 268 J12. This 6023.6 clear tower crane - trolley boom - top-slewing, which was produced between 2008 and 2018 ranks in the LECTURA index at #233. Want more detailed specifications? Download the latest Wolff 6023.6 clear specs data sheet on LECTURA Specs today!

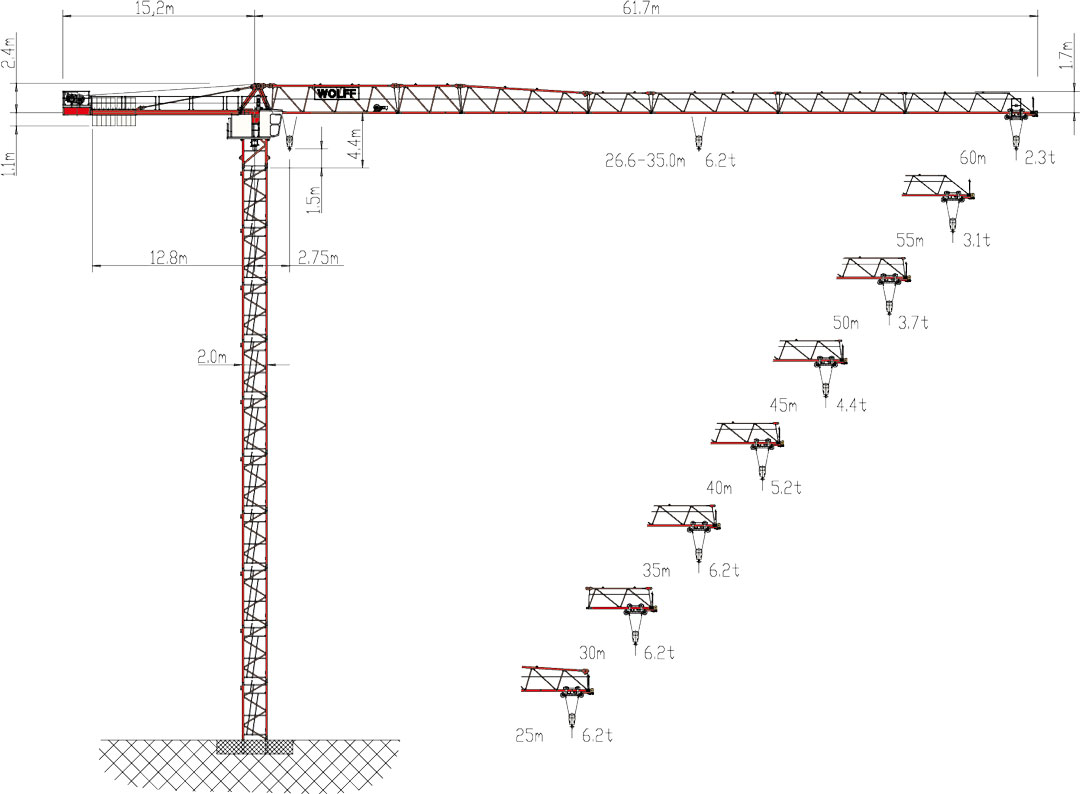

Technical specs - 6023.6 clear Wolffkran


Notice: Every data listed is verified by LECTURA Specs team experts. However, incomplete data and mistakes might occur.Contact our team with any change suggestion.

  • Nominal torque 2170 kNm
  • Max. load 6.2 t
  • max. reach 30 m
  • Load at max. Reach 6.2 t
  • Reach at max. Load 30 m
  • max. standard boom 30 m
  • min. luffing jib 25 m
  • max. hook height 69 m
  • Ropes 2
  • max. hoisting speed 52 m/min
  • Tower system UV/TV 20
  • Drive system 628 FU
  • Connection load 47 KVA
  • Hoist unit 28 kW
  • Model series clear

More technical details, like: max. luffing jib, tower height are available in the full technical specs.

If alignment change (2/4) is possible, the loads for quadruple alignment applies. In case of crane on anchor bolt, the anchor is not included in base price. Incl. concrete ballast, crane control and spindles with plates (latter not valid with rail-bound travelling, incl. cable drum and cruciform base)

Special equipment

  • Cabin
  • Add. ballast
  • Rail carrier
  • Climbing device
  • Undercarriage
  • Cross girder
