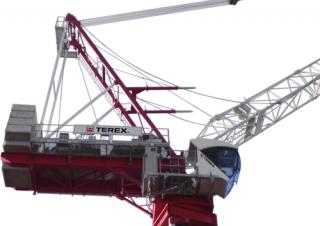

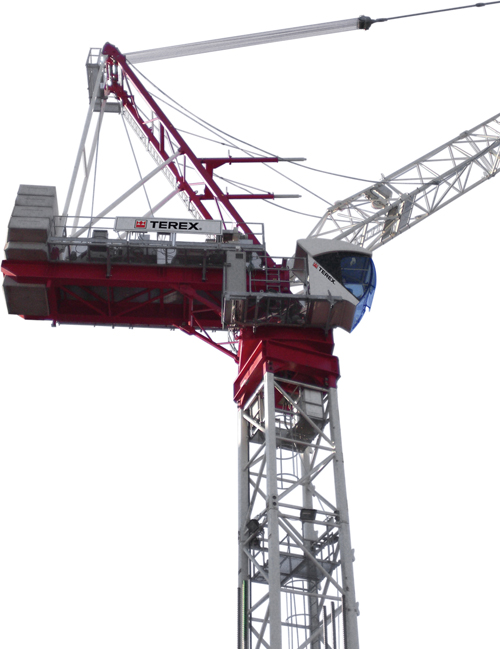

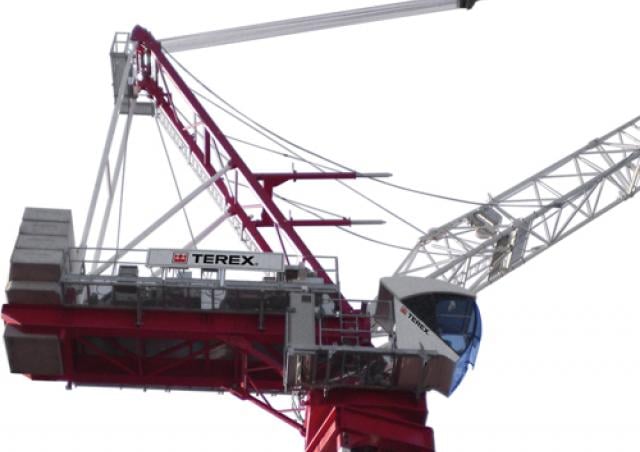

Terex Comedil (Zeppelin) CTL 260A-18 crane - load chart, specs (2021 - 2024)

Rate this machine now!

Nominal torque: 3370kNm – Max. load: 18t – max. reach: 60m – Load at max. Reach: 8.3t – Reach at max. Load: 18.6m – max. standard ... Read more

Nominal torque: 3370kNm – Max. load: 18t – max. reach: 60m – Load at max. Reach: 8.3t – Reach at max. Load: 18.6m – max. standard boom: 35m

See load chart, specs, capacity, size and other technical data for Terex Comedil (Zeppelin) CTL 260A-18 crane manufactured between 2021 - 2024. See information, like: Nominal torque: 3370kNm – Max. load: 18t – max. reach: 60m – Load at max. Reach: 8.3t – Reach at max. Load: 18.6m – max. standard boom: 35m and more.

Technical specs - CTL 260A-18 Terex Comedil (Zeppelin)

Specification

Notice: Every data listed is verified by LECTURA Specs team experts. However, incomplete data and mistakes might occur.Contact our team with any change suggestion.

  • Nominal torque 3370 kNm
  • Max. load 18 t
  • max. reach 60 m
  • Load at max. Reach 8.3 t
  • Reach at max. Load 18.6 m
  • max. standard boom 35 m
  • max. hook height 72 m
  • Ropes 4
  • Tower system TS 23
  • Drive system 67 AFC 90-LFC 45
  • Connection load 165 KVA
  • Model series CTL

More technical details, like: max. luffing jib, min. luffing jib, tower height, max. hoisting speed, hoist unit are available in the full technical specs.

If alignment change (2/4) is possible, the loads for quadruple alignment applies. In case of crane on anchor bolt, the anchor is not included in base price. Incl. concrete ballast, crane control and spindles with plates (latter not valid with rail-bound travelling, incl. cable drum and cruciform base)

Special equipment

  • Cabin
  • Add. ballast
  • Rail carrier
  • Climbing device
  • Undercarriage
  • Cross girder
