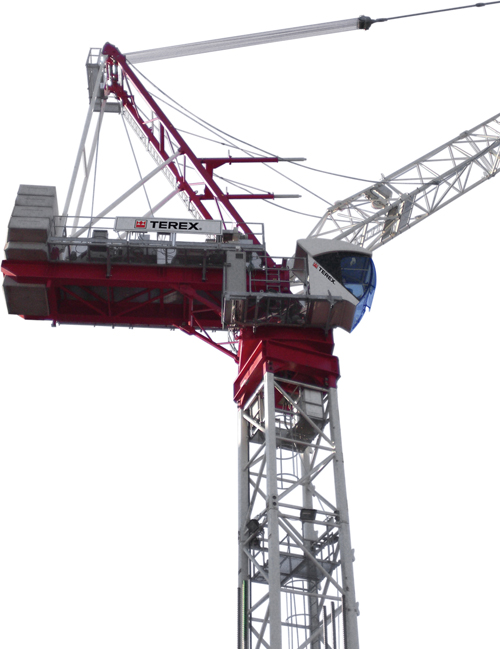

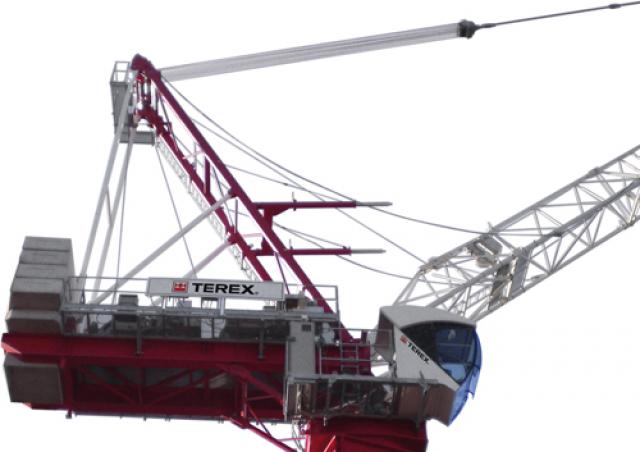

    Terex Comedil (Zeppelin) CTL 260A-18 crane - load chart, specs (2021 - 2022)

    Rate this machine now!

    See load chart, specs, capacity, size and other technical data for Terex Comedil (Zeppelin) CTL 260A-18 crane manufactured between... Read more

    See load chart, specs, capacity, size and other technical data for Terex Comedil (Zeppelin) CTL 260A-18 crane manufactured between 2021 - 2022. See information, like: Nominal torque: 3370kNm – Max. load: 13.5t – max. reach: 60m – Load at max. Reach: 2t – Reach at max. Load: 19.7m – max. standard boom: 60m and more.

    Technical specs - CTL 260A-18 Terex Comedil (Zeppelin)

    Specification

    Notice: Every data listed is verified by LECTURA Specs team experts. However, incomplete data and mistakes might occur.Contact our team with any change suggestion.

    • Nominal torque 3370 kNm
    • Max. load 13.5 t
    • max. reach 60 m
    • Load at max. Reach 2 t
    • Reach at max. Load 19.7 m
    • max. standard boom 60 m
    • max. hook height 108 m
    • Ropes 2/3/4
    • Tower system HD 23
    • Drive system 67 AFC 90-LFC 45
    • Connection load 165 KVA
    • Max. luffing jib ###
    • min. luffing jib ###
    • Tower height ###
    • max. hoisting speed ###
    • Hoist unit ###

    If alignment change (2/4) is possible, the loads for quadruple alignment applies. In case of crane on anchor bolt, the anchor is not included in base price. Incl. concrete ballast, crane control and spindles with plates (latter not valid with rail-bound travelling, incl. cable drum and cruciform base)

    Special equipment

    • Cabin
    • Add. ballast
    • Rail carrier
    • Climbing device
    • Undercarriage
    • Cross girder
