Terex Comedil (Zeppelin) CSE 32 crane - load chart, specs (2021 - 2023)
Nominal torque: 506kNm – Max. load: 4.4t – max. reach: 32m – Load at max. Reach: 1.15t – Reach at max. Load: 10.27m – max. standar... Read more
Nominal torque: 506kNm – Max. load: 4.4t – max. reach: 32m – Load at max. Reach: 1.15t – Reach at max. Load: 10.27m – max. standard boom: 32m
See load chart, specs, capacity, size and other technical data for Terex Comedil (Zeppelin) CSE 32 crane manufactured between 2021 - 2023. See information, like: Nominal torque: 506kNm – Max. load: 4.4t – max. reach: 32m – Load at max. Reach: 1.15t – Reach at max. Load: 10.27m – max. standard boom: 32m and more.

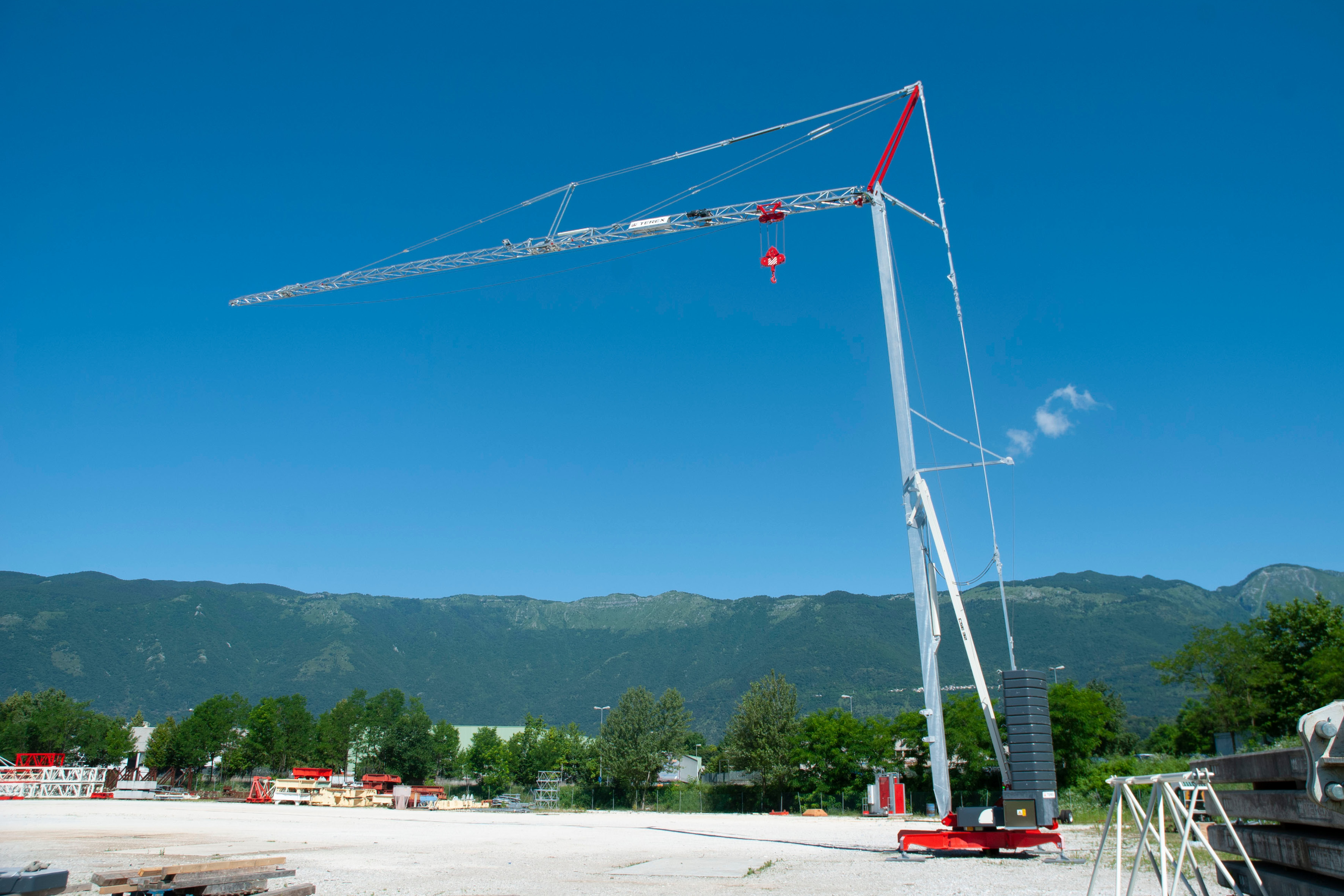

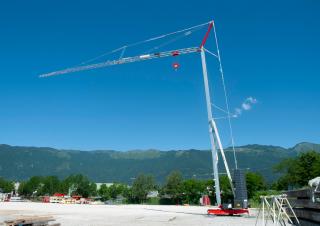

Technical specs - CSE 32 Terex Comedil (Zeppelin)
Specification
Notice: Every data listed is verified by LECTURA Specs team experts. However, incomplete data and mistakes might occur.Contact our team with any change suggestion.
- Nominal torque 506 kNm
- Max. load 4.4 t
- max. reach 32 m
- Load at max. Reach 1.15 t
- Reach at max. Load 10.27 m
- max. standard boom 32 m
- max. hook height 21.5 m
- Ropes 2/4
- Drive system FU
- Connection load 20 KVA
- Hoist unit 11 kW
- Model series CSE
More technical details, like: max. luffing jib, min. luffing jib, tower height, max. hoisting speed, tower system are available in the full technical specs.
If alignment change (2/4) is possible, the loads for quadruple alignment applies. In case of crane on anchor bolt, the anchor is not included in base price. Incl. concrete ballast, crane control and spindles with plates (latter not valid with rail-bound travelling, incl. cable drum and cruciform base)
Special equipment
- Cabin
- Rail carrier
- Road Carrige
- Steep jib pos.
- Hot-dipped galvanised
- Ballasting device
