Sennebogen 9300 HMC crane - load chart, specs & dimensions (2019 - 2021)

max. carrying capacity: 90t – at reach: 10m – Carrying capacity: 20.5t – at max. reach: 40m – max. standard boom: 41m – max. hook …

max. carrying capacity: 90t – at reach: 10m – Carrying capacity: 20.5t – at max. reach: 40m – max. standard boom: 41m – max. hook height: 41m

See load chart, specs, capacity, size and other technical data for Sennebogen 9300 HMC crane manufactured between 2019 - 2021. See information, like: max. carrying capacity: 90t – at reach: 10m – Carrying capacity: 20.5t – at max. reach: 40m – max. standard boom: 41m – max. hook height: 41m and more.

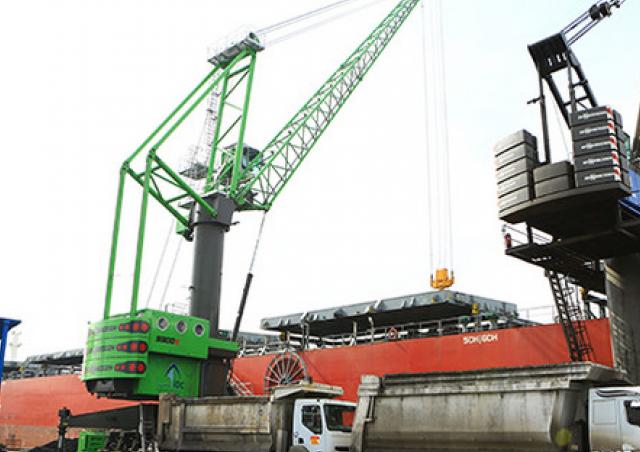

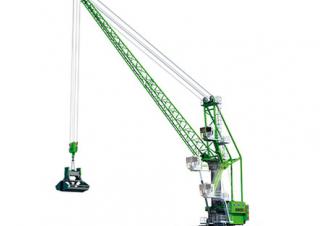

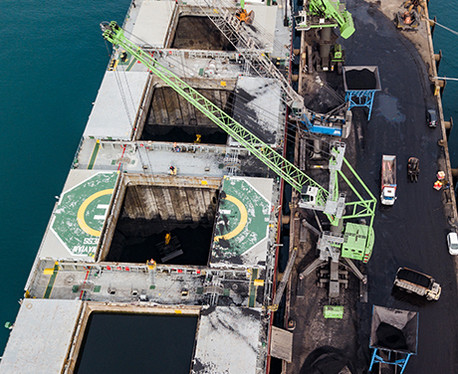

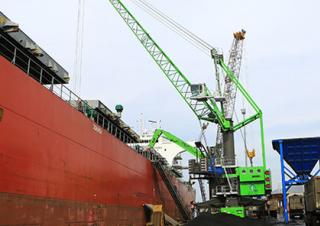

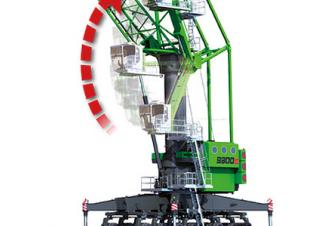

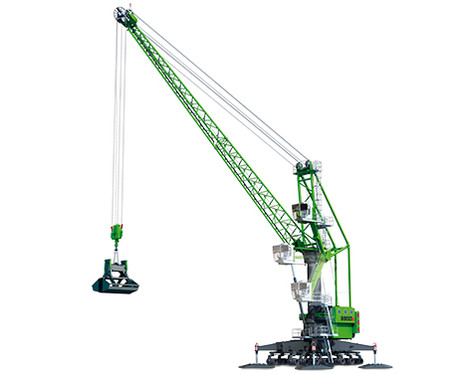

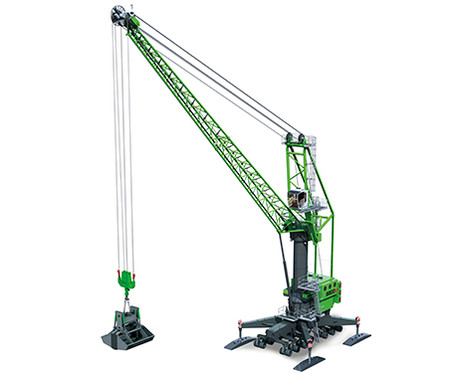

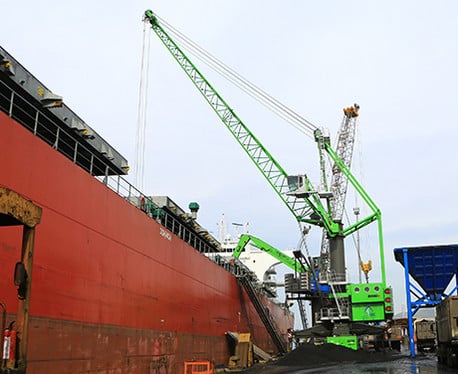

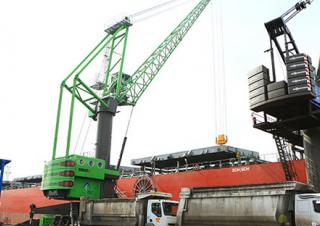

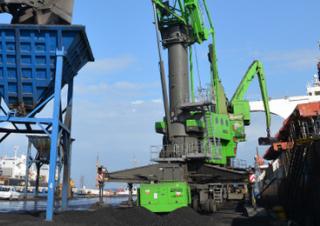

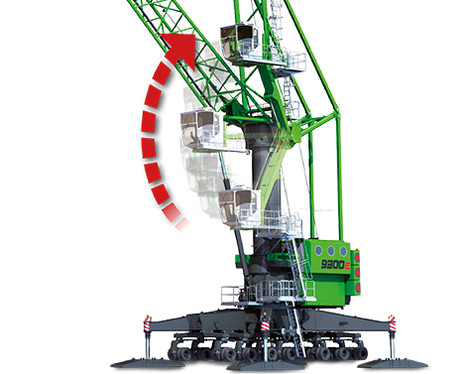

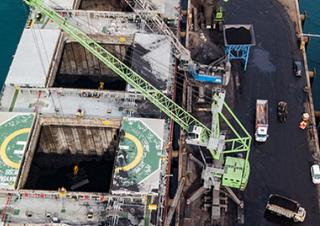

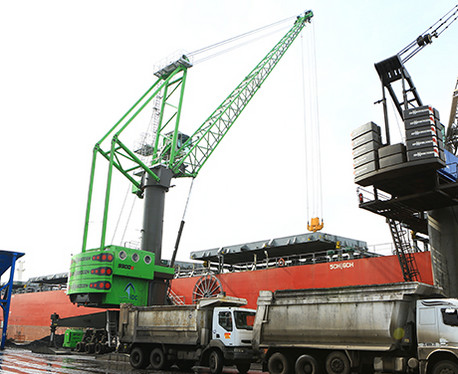

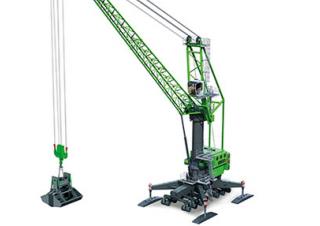

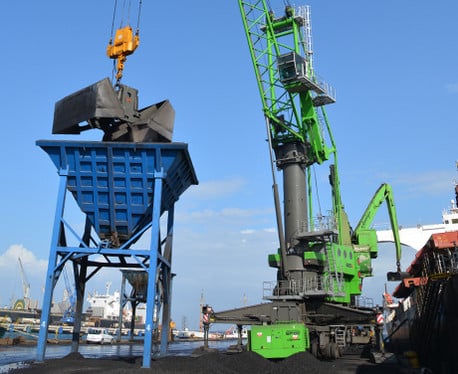

Mobile cranes - Lattice boom Sennebogen 9300 HMC
Mobile cranes - Lattice boom Sennebogen 9300 HMC
Mobile cranes - Lattice boom Sennebogen 9300 HMC
Mobile cranes - Lattice boom Sennebogen 9300 HMC
Mobile cranes - Lattice boom Sennebogen 9300 HMC
Mobile cranes - Lattice boom Sennebogen 9300 HMC
Mobile cranes - Lattice boom Sennebogen 9300 HMC
Mobile cranes - Lattice boom Sennebogen 9300 HMC
Mobile cranes - Lattice boom Sennebogen 9300 HMC
Mobile cranes - Lattice boom Sennebogen 9300 HMC
Mobile cranes - Lattice boom Sennebogen 9300 HMC
Mobile cranes - Lattice boom Sennebogen 9300 HMC
Mobile cranes - Lattice boom Sennebogen 9300 HMC
Mobile cranes - Lattice boom Sennebogen 9300 HMC

Technical specs - 9300 HMC Sennebogen

Specification

Notice: Every data listed is verified by LECTURA Specs team experts. However, incomplete data and mistakes might occur. Contact our team with any change suggestion.

max. carrying capacity
90 t
at reach
10 m
Carrying capacity
20.5 t
at max. reach
40 m
max. standard boom
41 m
max. hook height
41 m
Engine power
563 kW
Travel speed
5 km/h
Number of axles
14
Wheels/Drive/Steering
56/56/56
Model series
E

More technical details, like: min. standard boom, max. luffing jib, load torque, axle load, standard tyres, tipping load, engine manuf., engine type, dimension lxwxh, displacement, revolutions at max torque, max. torque...

More technical details, like: min. standard boom, max. luffing jib, load torque, axle load, standard tyres, tipping load, engine manuf., engine type, dimension lxwxh, displacement, revolutions at max torque, max. torque, no. of cylinders, cylinder bore x stroke, weight, emission level are available in the full technical specs.

Including hook block

Special equipment

2nd winch
Yes
Add. ballast
Yes
Basic boom
Yes
Tip extension
No
