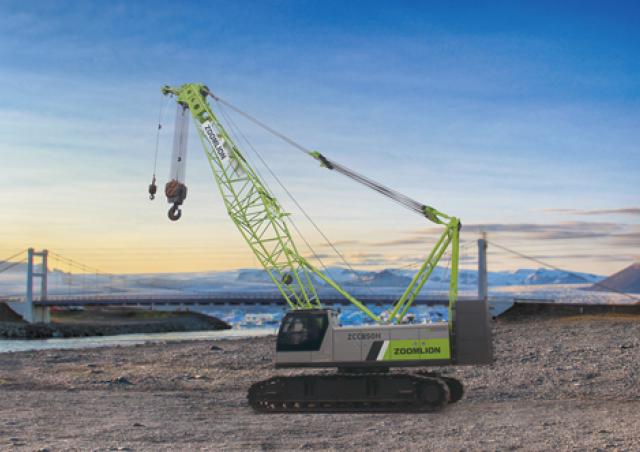

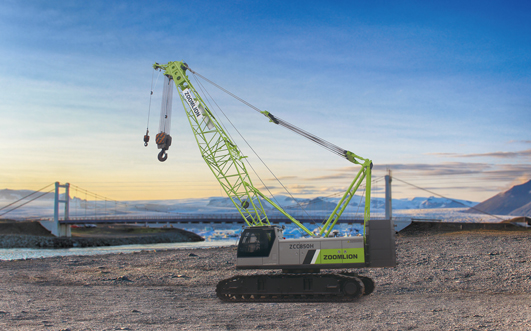

Zoomlion ZCC850H
- max. carrying capacity:
- 80 t
- at reach:
- 4 m
- at max. reach:
- 50 m
- max. standard boom:
- 58 m
Zoomlion ZCC850H crane - load chart, specs & dimensions (2019 - 2022)
Technical specs - ZCC850H Zoomlion
Specification
Notice: Every data listed is verified by LECTURA Specs team experts. However, incomplete data and mistakes might occur. Contact our team with any change suggestion.
- max. carrying capacity
- 80 t
- at reach
- 4 m
- at max. reach
- 50 m
- max. standard boom
- 58 m
- Min. standard boom
- 13 m
- Max. luffing jib
- 34 m
- Engine power
- 199 kW
- Travel speed
- 1.68 km/h
- Soil pressure
- 0.85 kg/cm²
- Model series
- ZCC
- Engine manuf.
- Weichai Power
- Engine type
- WP10.270N
- Revolutions at max torque
- 1200-1500 rpm
- Max. torque
- 1270 Nm
- Emission level
- National Stage Ⅱ
More technical details, like: carrying capacity, max. hook height, load torque, dimension lxwxh, displacement, no. of cylinders, cylinder bore x stroke, weight are available in the full technical specs.
Including hook block
Special equipment
- 2nd winch
-
No
- Add. ballast
-
No
- Basic boom
-
Yes
- Tip extension
-
No
