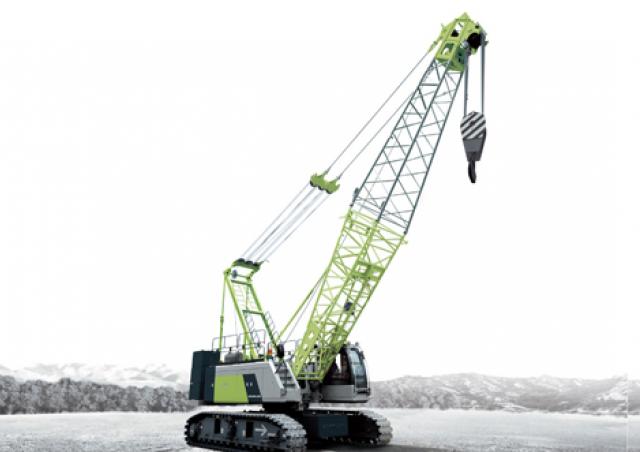

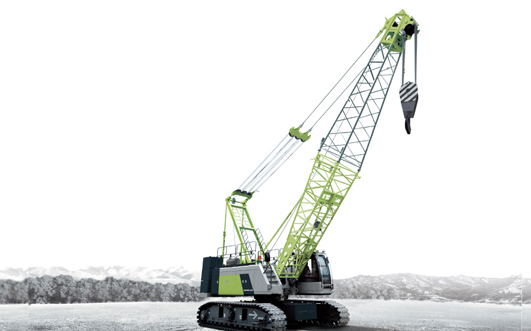

Zoomlion ZCC1300
- max. carrying capacity:
- 130 t
- at reach:
- 4.5 m
- Carrying capacity:
- 1.8 t
- at max. reach:
- 61 m
Zoomlion ZCC1300 crane - load chart, specs & dimensions (2019 - 2023)
.jpg)
Technical specs - ZCC1300 Zoomlion
Specification
Notice: Every data listed is verified by LECTURA Specs team experts. However, incomplete data and mistakes might occur. Contact our team with any change suggestion.
- max. carrying capacity
- 130 t
- at reach
- 4.5 m
- Carrying capacity
- 1.8 t
- at max. reach
- 61 m
- max. standard boom
- 73 m
- Min. standard boom
- 19 m
- Max. luffing jib
- 31 m
- Engine power
- 209 kW
- Travel speed
- 1.32 km/h
- Soil pressure
- 1.01 kg/cm²
- Model series
- ZCC
- Engine manuf.
- Cummins
- Engine type
- N/A
- Displacement
- 9 l
- Revolutions at max torque
- 1400 rpm
- Max. torque
- 1424 Nm
- Emission level
- U.S.EPA Tier 3
More technical details, like: max. hook height, load torque, dimension lxwxh, no. of cylinders, cylinder bore x stroke, weight are available in the full technical specs.
Including hook block
Special equipment
- 2nd winch
-
No
- Add. ballast
-
No
- Basic boom
-
Yes
- Tip extension
-
No
