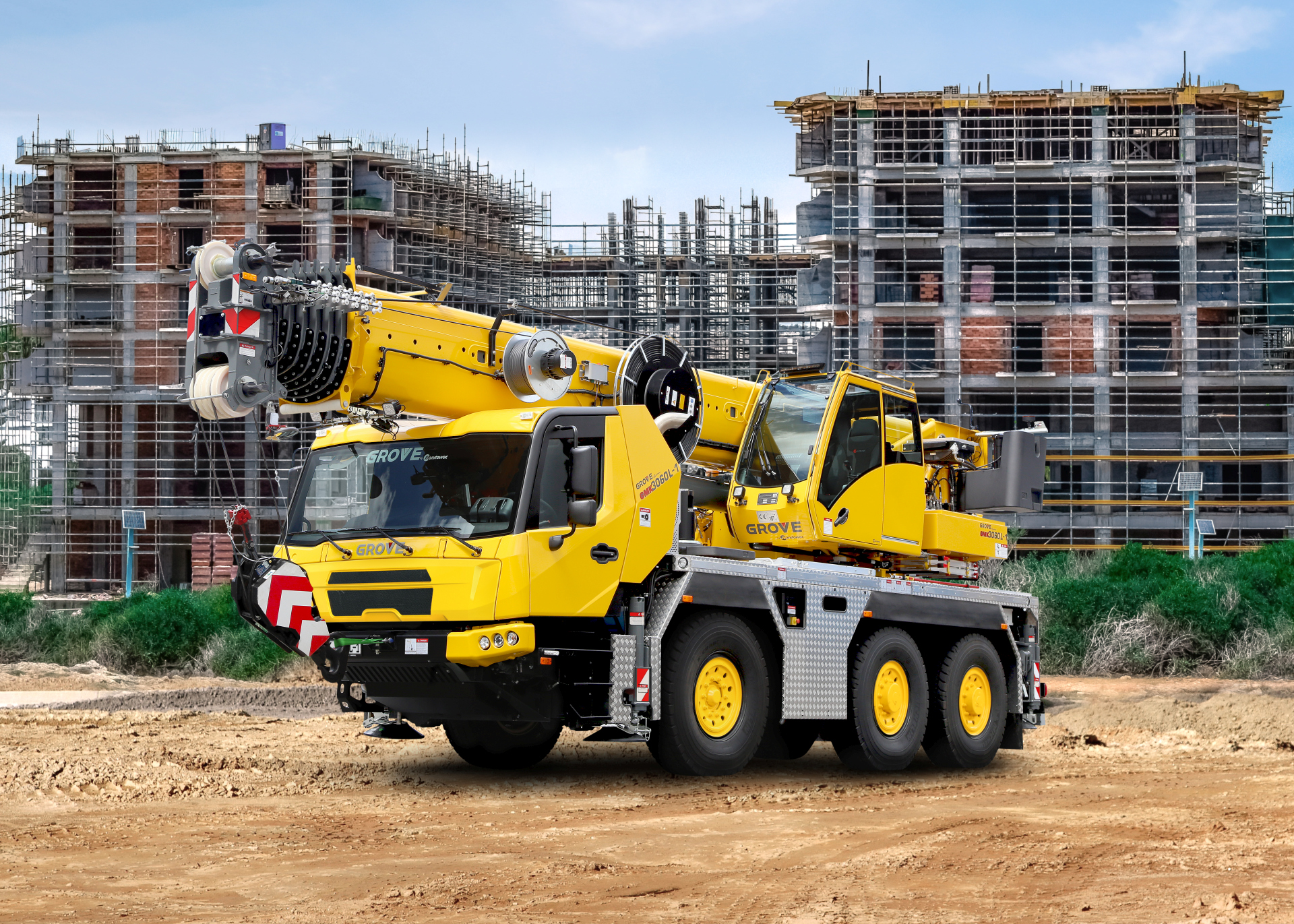

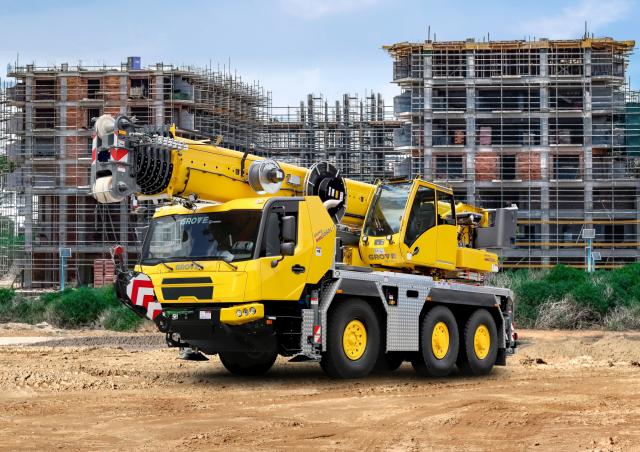

Grove GMK3060L-1 crane - load chart, specs (2021 - 2023)
max. carrying capacity: 60t – at reach: 3m – Carrying capacity: 0.6t – at max. reach: 48m – max. standard boom: 48m – Min. standar... Read more
max. carrying capacity: 60t – at reach: 3m – Carrying capacity: 0.6t – at max. reach: 48m – max. standard boom: 48m – Min. standard boom: 9.6m
See load chart, specs, capacity, size and other technical data for Grove GMK3060L-1 crane manufactured between 2021 - 2023. See information, like: max. carrying capacity: 60t – at reach: 3m – Carrying capacity: 0.6t – at max. reach: 48m – max. standard boom: 48m – Min. standard boom: 9.6m and more.
Technical specs - GMK3060L-1 Grove
Specification
Notice: Every data listed is verified by LECTURA Specs team experts. However, incomplete data and mistakes might occur.Contact our team with any change suggestion.
- max. carrying capacity 60 t
- at reach 3 m
- Carrying capacity 0.6 t
- at max. reach 48 m
- max. standard boom 48 m
- Min. standard boom 9.6 m
- Max. luffing jib 15 m
- max. hook height 65 m
- Load Torque 165 kNm
- Undercarriage engine 254 kW
- Travel speed 80 km/h
- Number of axles 3
- Wheels/Drive/Steering 6/6/6
- axle load 12 t
- Standard tyres 445/95 R25
- Outriggers spacing length 6.825 m
- Outriggers spacing width 6.2 m
- Model series GMK
- Engine manuf. Cummins
- Engine type QSL9-C350
- Engine power 254 kW
- Revolutions at max torque 1400 rpm
- Max. torque 1526 Nm
- No. of cylinders 6
- Emission level Euromot 5 / EPA / CARB Tier 3
More technical details, like: superstructure engine, average fuel consumption, fuel consumption range (min - max), tipping load, dimension lxwxh, displacement, cylinder bore x stroke, weight are available in the full technical specs.
Including hook block
Special equipment
- 2nd winch
- max. luffing jib
- max. fold hydr.
- Erection tip
- Foucault current brake
- Add. ballast
